NSN 5325-01-206-5105 SCQ425, SCQ4-25, SQC425
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-206-5105 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: SCQ425, SCQ4-25, SQC425, SQC4-25, 1219QC425ZY, 1219-QC425-ZY, 5325-01-206-5105, 01-206-5105, 5325012065105, 012065105
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 APR 1985 | 01-206-5105 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

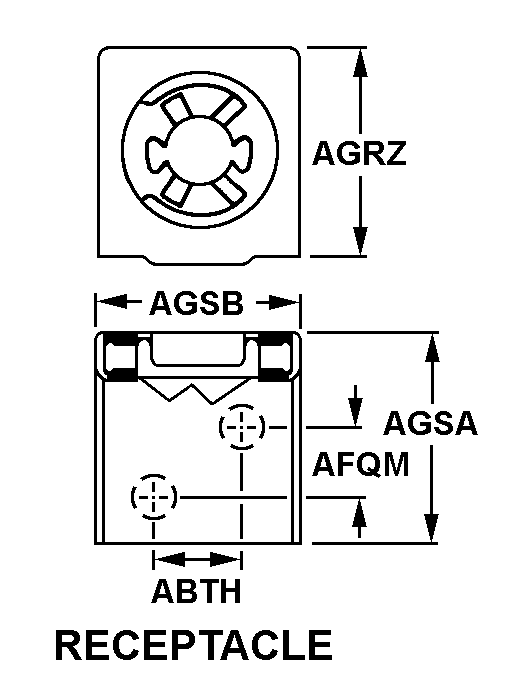

Drawings & Photos | NSN 5325-01-206-5105
Demand History | NSN 5325-01-206-5105
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-206-5105 | 2015-07-210 | 118 | DIBBS |
| 5325-01-206-5105 | 2015-07-186 | 96 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-206-5105
Related Products | NSN 5325-01-206-5105
Technical Data | NSN 5325-01-206-5105
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL RECEPTACLE STEEL RECEPTACLE PLATE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI,COMP 1074 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE AISI,COMP 1074 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE PLATE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE EJECTOR SPRING CADMIUM AND CHROMATE RECEPTACLE CADMIUM AND CHROMATE RECEPTACLE PLATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-81562,TY 2,CL 2 MIL SPEC ALL TREATMENT RESPONSES EJECTOR SPRING QQ-P-416,CL 2,TY 2 FED SPEC ALL TREATMENT RESPONSES RECEPTACLE QQ-P-416,CL 2,TY 2 FED SPEC ALL TREATMENT RESPONSES RECEPTACLE PLATE |
| TURNLOCK RECEPTACLE STYLE | 7 RECEPTACLE |
| RECEPTACLE OVERALL LENGTH | 0.580 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.472 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.480 INCHES NOMINAL |
| MOUNTING STYLE | 1 PLAIN |
| SPECIAL FEATURES | 0.079 IN. MIN,0.098 IN. MAX MATLTHK |
| MANUFACTURERS CODE | 72794 |
| DESIGN CONTROL REFERENCE | 1219-QC425-ZY |
Restrictions/Controls & Freight Information | NSN 5325-01-206-5105
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-206-5105
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
