NSN 5325-01-203-5378 M195012591, M195012-5-9-1, 195012-5-9-1
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-203-5378 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: M195012591, M195012-5-9-1, 195012-5-9-1, 195012-5-9-2, 3M304C591, 3M304C5-9-1, 5325-01-203-5378, 01-203-5378, 5325012035378, 195012591, 195012592, 012035378
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1985 | 01-203-5378 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

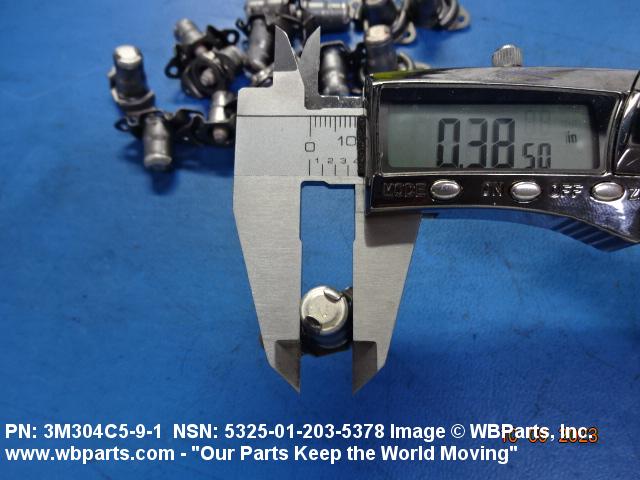

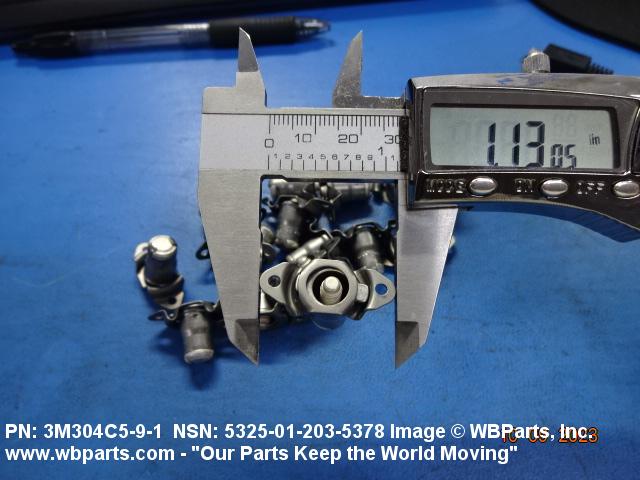

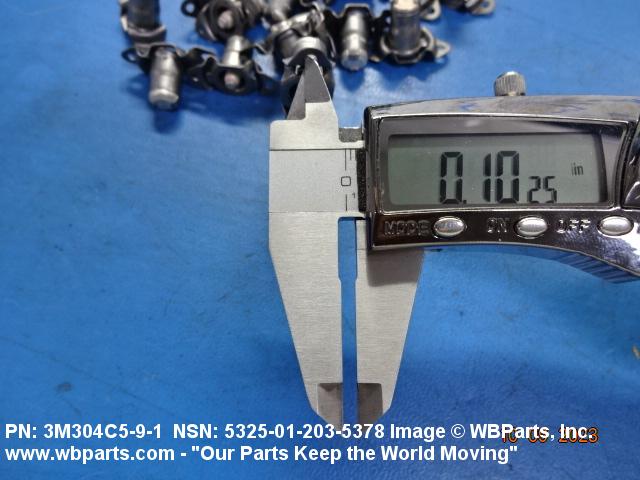

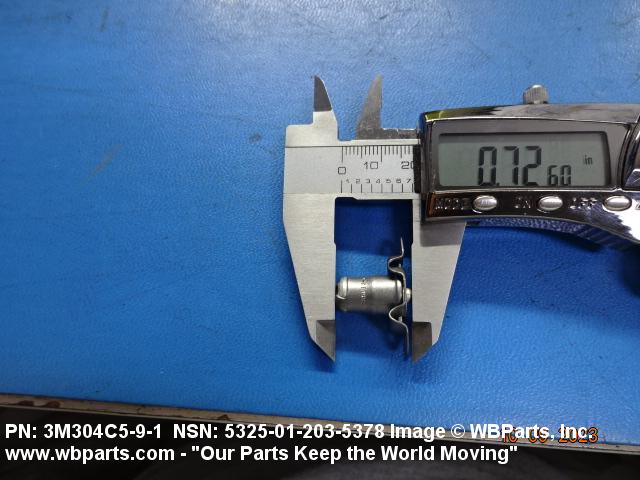

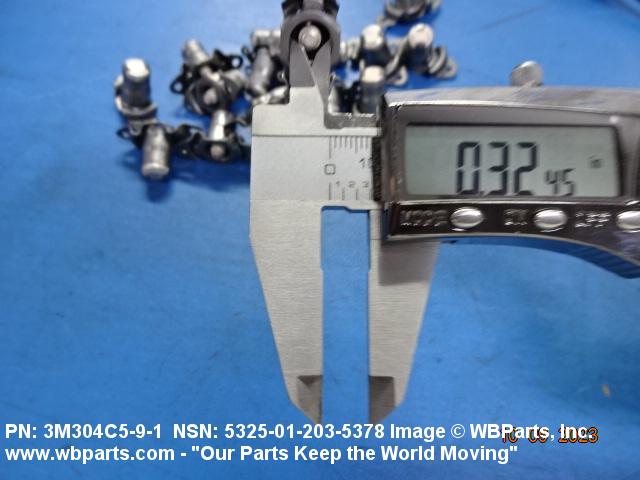

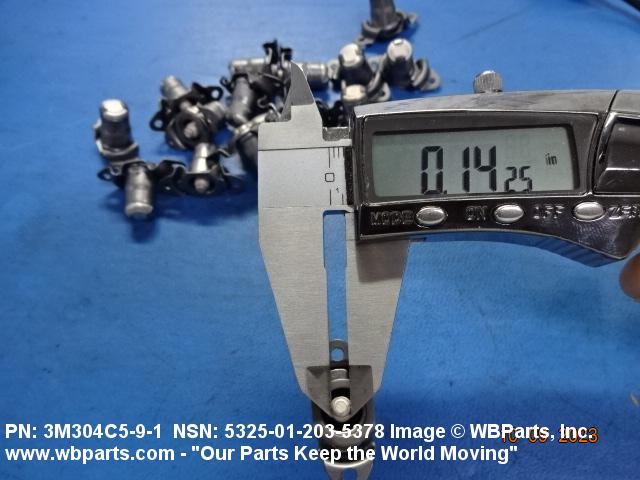

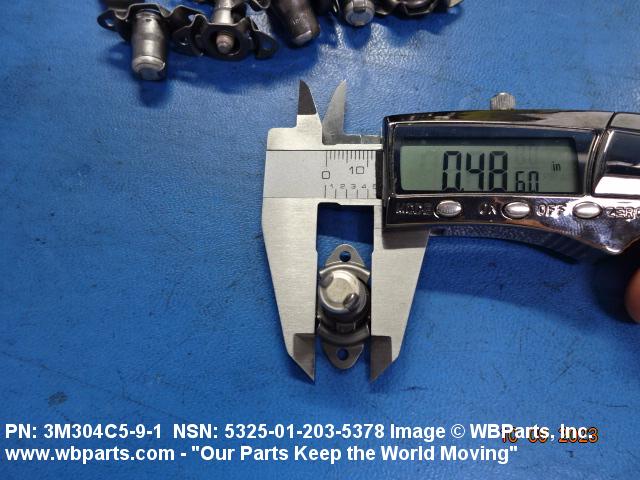

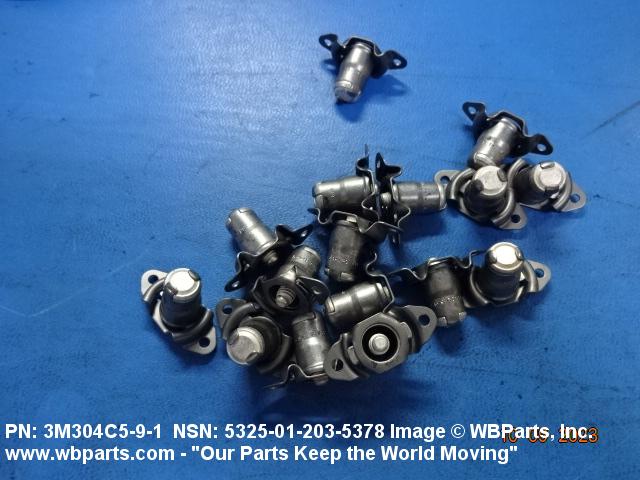

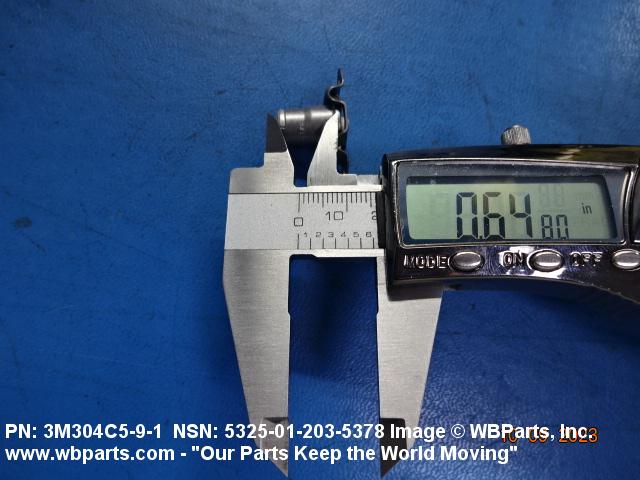

Drawings & Photos | NSN 5325-01-203-5378
Demand History | NSN 5325-01-203-5378
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-203-5378 | 2024-06-176 | 31 | United States |
| 5325-01-203-5378 | 2024-06-172 | 31 | United States |
| 5325-01-203-5378 | 2024-06-158 | 2 | UK |
| 5325-01-203-5378 | 2023-09-255 | 42 | Saudi Arabia |
| 5325-01-203-5378 | 2023-09-254 | 45 | Saudi Arabia |
| 5325-01-203-5378 | 2023-09-251 | 42 | Saudi Arabia |
| 5325-01-203-5378 | 2023-09-250 | 100 | Saudi Arabia |
| 195012592 | 2022-12-341 | 2 | United States |
| 195012592 | 2022-10-283 | 1 | United States |
| 195012592 | 2022-10-283 | 3 | United States |
| 195012-5-9-1 | 2022-05-129 | 177 | DIBBS |
| 195012-5-9-2 | 2022-05-129 | 177 | DIBBS |
| M195012-5-9-1 | 2022-05-129 | 177 | DIBBS |
| 195012-5-9-1 | 2021-05-144 | 177 | DIBBS |
| 195012-5-9-2 | 2021-05-144 | 177 | DIBBS |
| M195012-5-9-1 | 2021-05-144 | 177 | DIBBS |
| 195012-5-9-1 | 2021-05-132 | 177 | DIBBS |
| 195012-5-9-2 | 2021-05-132 | 177 | DIBBS |
| M195012-5-9-1 | 2021-05-132 | 177 | DIBBS |
| 5325-01-203-5378 | 2016-03-81 | 7 | MANUAL |
| M195012-5-9-1 | 2016-03-81 | 7 | United States |
Cross Reference | NSN 5325-01-203-5378
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 195012-5-9-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 195012-5-9-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 195012-5-9-2 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M304C5-9-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| M195012-5-9-1 | 16258 | SPACELOK INC. |
