NSN 5325-01-203-4923 9787E402, 9787E40-2, 01-203-4923
Product Details | NONMETALLIC GROMMET
5325-01-203-4923 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 9787E402, 9787E40-2, 5325-01-203-4923, 01-203-4923, 5325012034923, 012034923
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1985 | 01-203-4923 | 33729 ( GROMMET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-01-203-4923
Cross Reference | NSN 5325-01-203-4923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9787E40-2 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-203-4923
Related Products | NSN 5325-01-203-4923
Technical Data | NSN 5325-01-203-4923
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-7362,TYPE 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |

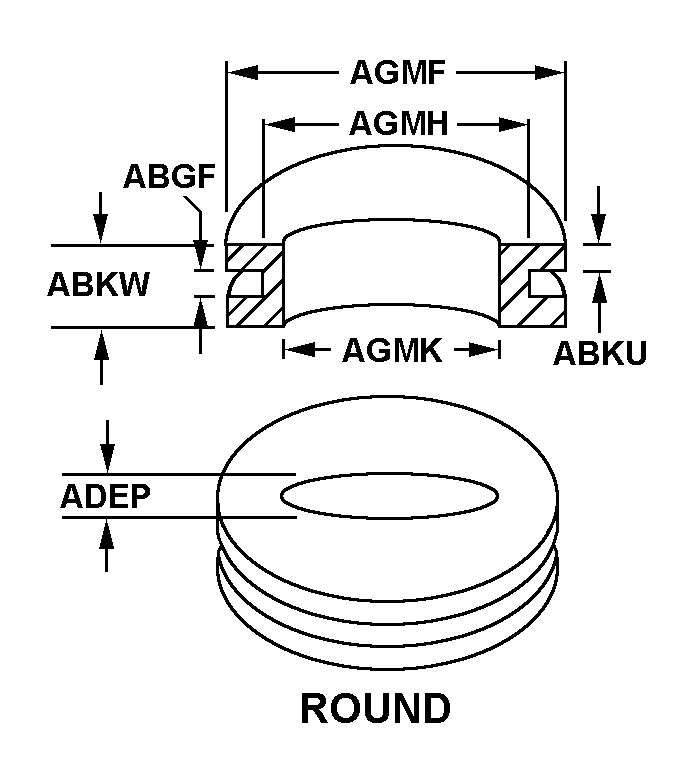

| GROMMET STYLE | 24 ROUND |
| GROOVE WIDTH | 0.062 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| HOLE WIDTH | 0.172 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.547 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| HOLE LENGTH | 0.234 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
Restrictions/Controls & Freight Information | NSN 5325-01-203-4923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
