Product Details | RETAINING RING

5325-01-203-5150 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: 20DIN9045, 5325-01-203-5150, 01-203-5150, 5325012035150, 012035150

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 15 MAR 1985 01-203-5150

Drawings & Photos | NSN 5325-01-203-5150


Cross Reference | NSN 5325-01-203-5150

Part Number Cage Code Manufacturer
20DIN9045 14153 DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
20DIN9045 D8286 DIN DEUTSCHES INSTITUT FUER NORMUNGEV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-203-5150

Technical Data | NSN 5325-01-203-5150

Characteristic Specifications
RING STYLE A1 STRAIGHT GAP
GAP OPENING STYLE B1

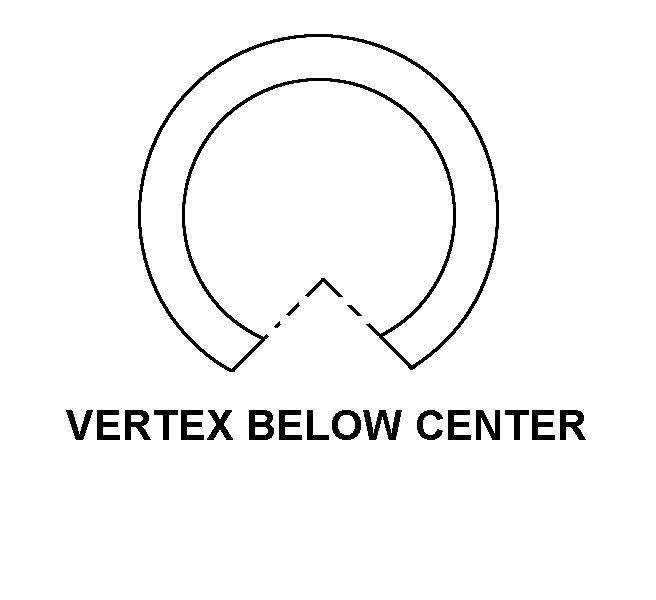

END STYLE C3 VERTEX BELOW CENTER
INSIDE DIAMETER 2.0 MILLIMETERS NOMINAL
OUTSIDE DIAMETER 38.4 MILLIMETERS NOMINAL
CROSS-SECTIONAL SHAPE STYLE D1 ROUND
MATERIAL DIAMETER 18.2 MILLIMETERS NOMINAL
USAGE DESIGN EXTERNAL
MANUFACTURERS CODE 14153
DESIGN CONTROL REFERENCE 20DIN9045
