NSN 5325-01-184-0371 CA1810, HS44951, HS4495-1
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-184-0371 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: CA1810, HS44951, HS4495-1, GR520W1, 5325-01-184-0371, 01-184-0371, 5325011840371, 011840371
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1984 | 01-184-0371 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

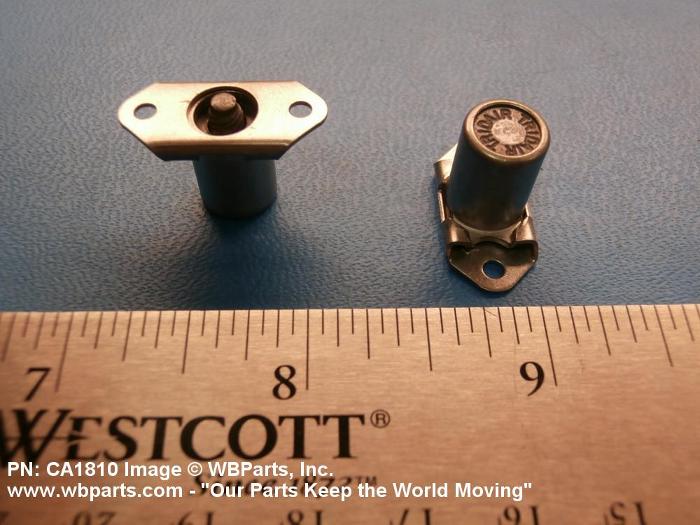

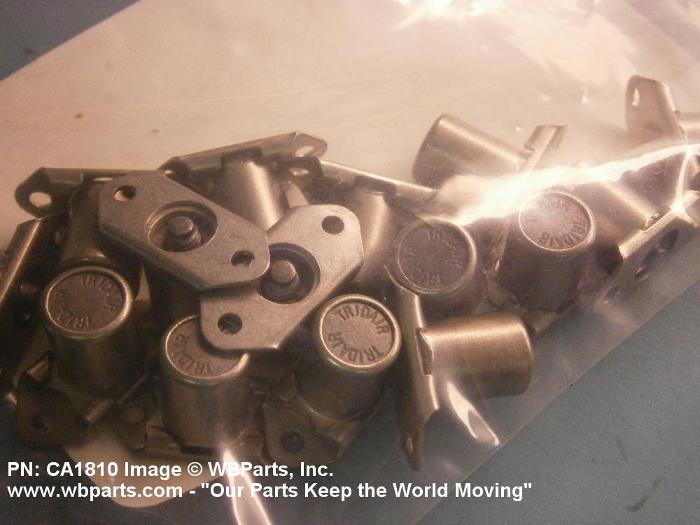

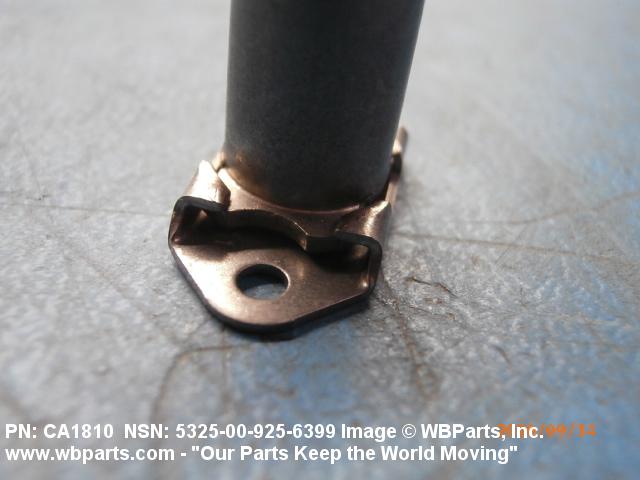

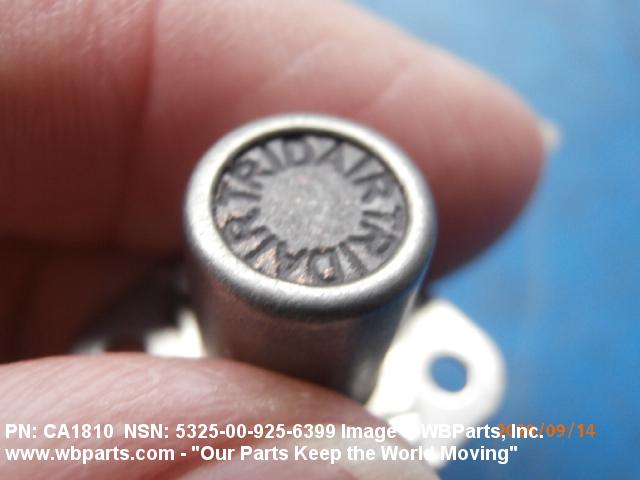

Drawings & Photos | NSN 5325-01-184-0371
Demand History | NSN 5325-01-184-0371
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-184-0371 | 2024-11-325 | 2 | United States |
| CA1810 | 2024-04-103 | 5000 | US |
| HS44951 | 2023-11-313 | 1000 | US |
| 5325-01-184-0371 | 2023-02-46 | 5 | DE |
| 5325-01-184-0371 | 2021-06-172 | 20 | US |
| CA1810 | 2020-09-248 | 22 | United States |
| 5325-01-184-0371 | 2020-06-157 | 1 | DIBBS-RFPs |
| CA1810 | 2020-03-91 | 40 | United States |
| CA1810 | 2019-12-351 | 793 | DIBBS |
| GR520W1 | 2019-12-351 | 793 | DIBBS |
| HS4495-1 | 2019-12-351 | 793 | DIBBS |
| HS44951 | 2019-08-232 | 6 | US |
| CA1810 | 2019-06-170 | 538 | DIBBS |
| GR520W1 | 2019-06-170 | 538 | DIBBS |
| HS4495-1 | 2019-06-170 | 538 | DIBBS |
| 5325-01-184-0371 | 2018-05-144 | 535 | DIBBS |
| 5325-01-184-0371 | 2017-06-165 | 4 | US |
| 5325-01-184-0371 | 2016-11-319 | 357 | DIBBS |
| 5325-01-184-0371 | 2015-03-71 | 30 | United States |
| 5325-01-184-0371 | 2013-06-155 | 220 | us |
| 5325-01-184-0371 | 2013-03-86 | 351 | DIBBS |
| CA1810 | 2012-12-348 | 25 | United States |
| CA1810 | 2012-10-284 | 8 | United States |
| 5325-01-184-0371 | 2012-10-284 | 260 | SG |
| HS44951 | 2012-08-238 | 15 | Canada |
| 5325-01-184-0371 | 2012-07-207 | 300 | DIBBS |
| 5325-01-184-0371 | 2012-07-185 | 90 | DIBBS |
| 5325-01-184-0371 | 2012-06-167 | 250 | us |
| CA1810 | 2012-05-135 | 135 | United States |
| 5325-01-184-0371 | 2012-02-59 | 300 | DIBBS |
| 5325-01-184-0371 | 2012-02-50 | 10 | DIBBS |
| 5325-01-184-0371 | 2012-02-40 | 10 | DIBBS |
| 5325-01-184-0371 | 2012-02-40 | 50 | DIBBS |
| 5325-01-184-0371 | 2012-01-28 | 20 | DIBBS |
| HS44951 | 2012-01-19 | 25 | US |
| 5325-01-184-0371 | 2011-12-364 | 100 | DIBBS |
| 5325-01-184-0371 | 2011-12-359 | 100 | DIBBS |
| CA1810 | 2011-08-222 | 200 | US |
| HS44951 | 2010-07-189 | 4 | US |
| 5325-01-184-0371 | 2010-02-50 | 500 | US |
| HS44951 | 2009-12-348 | 215 | United States |
| HS44951 | 2009-07-183 | 210 | us |
| 5325-01-184-0371 | 2009-06-176 | 100 | US |
| 5325-01-184-0371 | 2009-01-13 | 100 | US |
| CA1810 | 2008-06-154 | 50 | United States |
| CA1810 | 2008-03-63 | 21 | IL |
| 5325-01-184-0371 | 2008-02-57 | 55 | US |
| CA1810 | 2006-07-186 | 1000 | PT |
| CA1810 | 2006-05-138 | 100 | United States |
Cross Reference | NSN 5325-01-184-0371
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-184-0371
Related Products | NSN 5325-01-184-0371
Technical Data | NSN 5325-01-184-0371
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 STUD STEEL COMP 303 OR STEEL COMP 303SE HOUSING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE STUD ASTM A582 ASSN STD ALL MATERIAL RESPONSES HOUSING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |

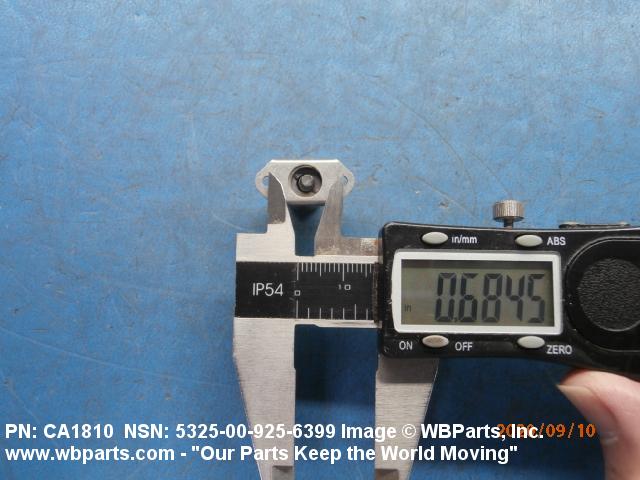

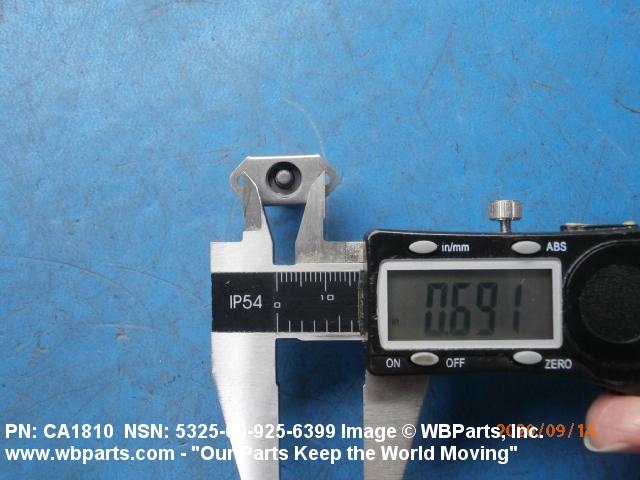

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.682 INCHES MINIMUM AND 0.692 INCHES MAXIMUM |

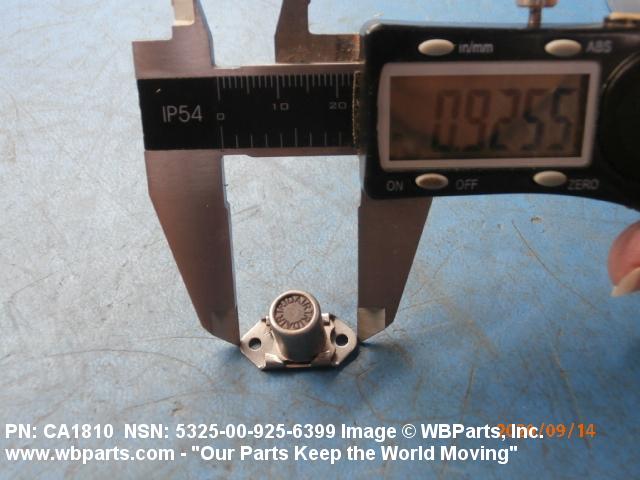

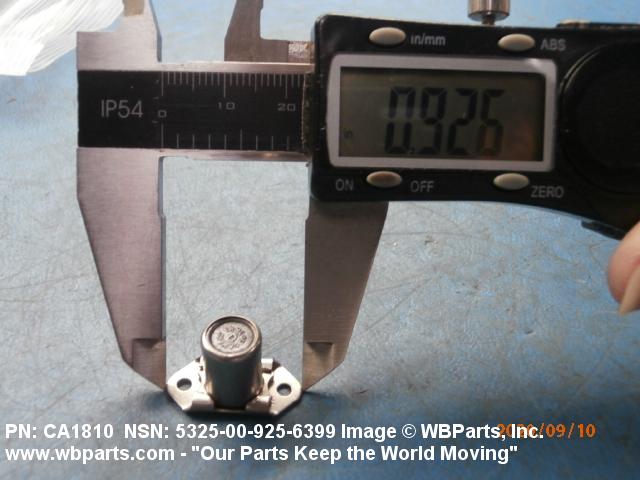

| RECEPTACLE OVERALL LENGTH | 0.928 INCHES MINIMUM AND 0.948 INCHES MAXIMUM |

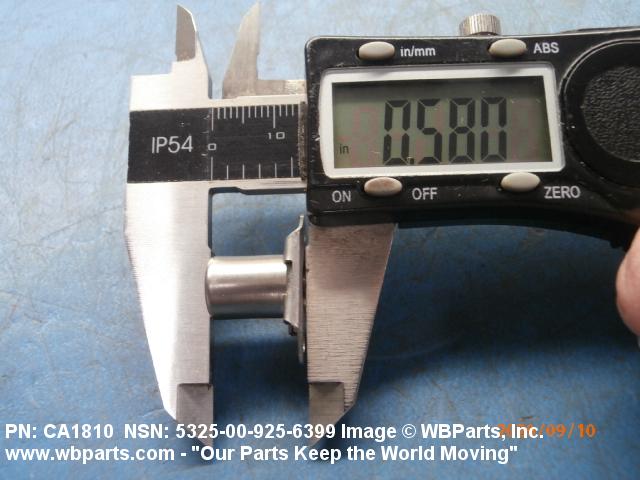

| RECEPTACLE HEIGHT | 0.545 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |

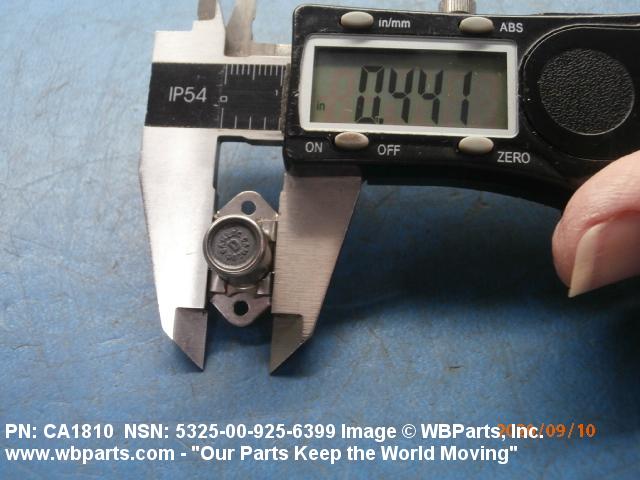

| RECEPTACLE WIDTH | 0.425 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
| RECEPTACLE THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.095 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| MANUFACTURERS CODE | 02731 |
| MFR SOURCE CONTROLLING REFERENCE | HS4495-1 |
Restrictions/Controls & Freight Information | NSN 5325-01-184-0371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-184-0371
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
