Product Details | TURNLOCK FASTENER STUD

5325-01-128-6767 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: 27962781, 2796278-1, 75009, 7500-9, 75009SS, 7500-9-SS, 5325-01-128-6767, 01-128-6767, 5325011286767, 011286767

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 26 MAR 1982 01-128-6767

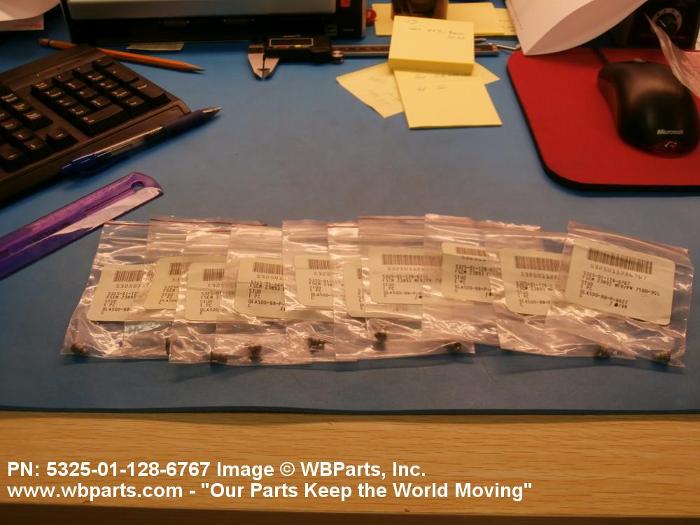

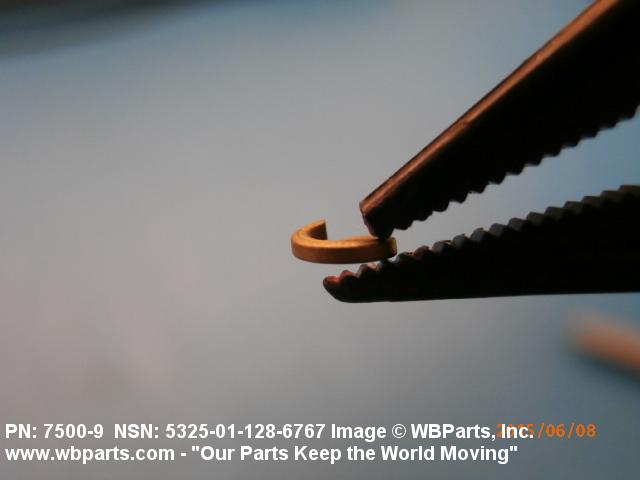

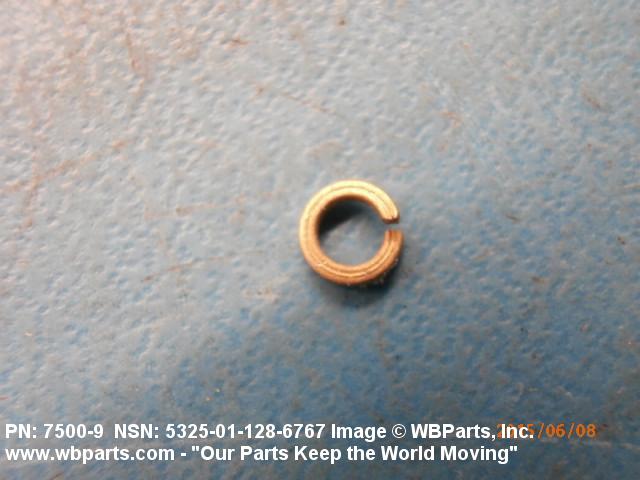

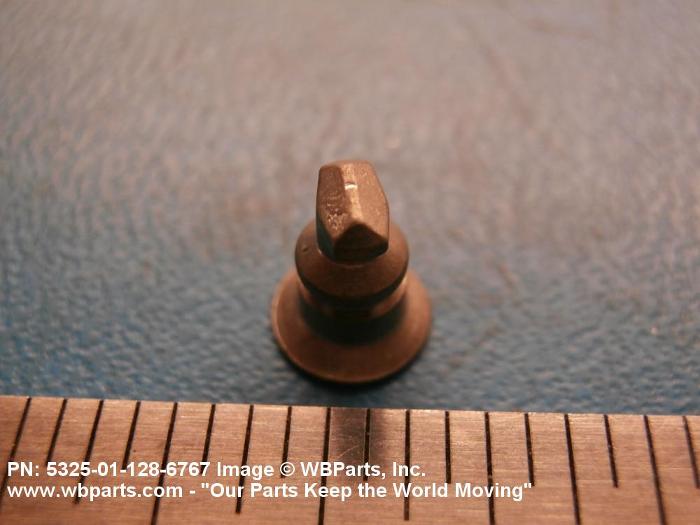

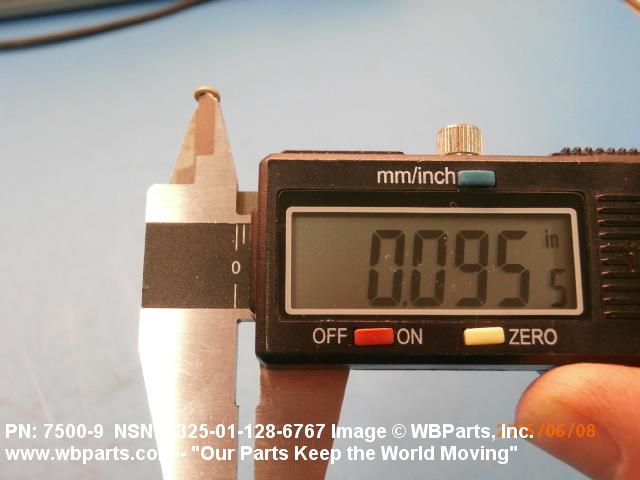

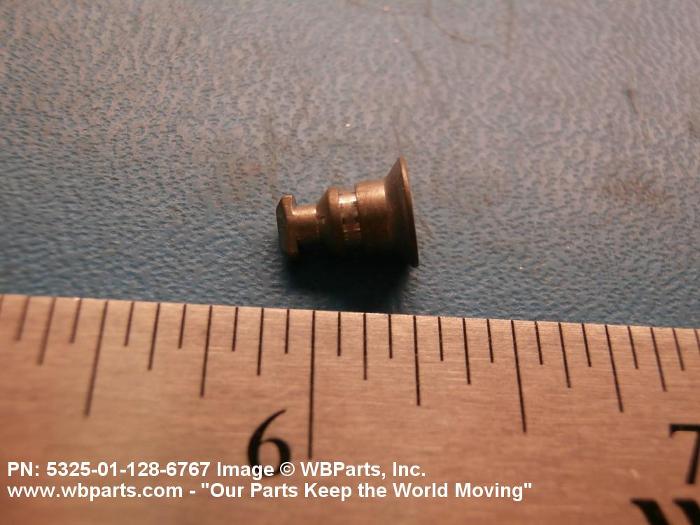

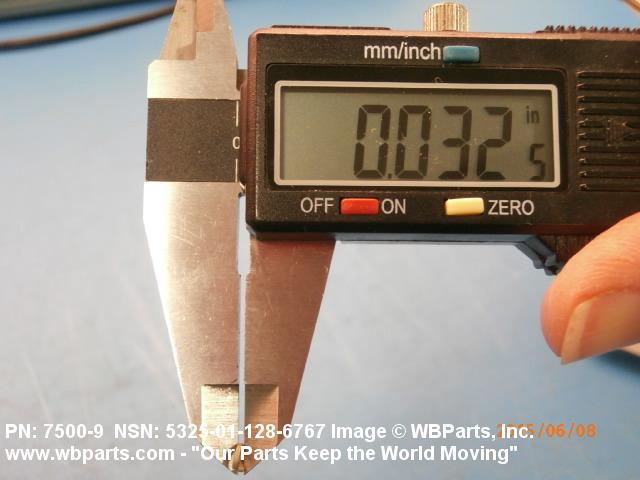

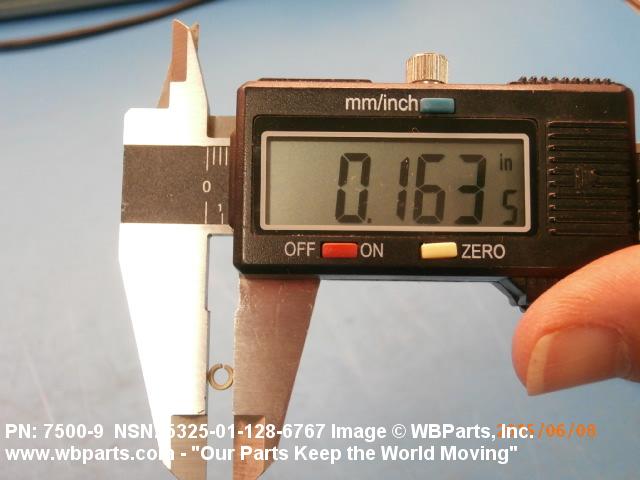

Drawings & Photos | NSN 5325-01-128-6767


Demand History | NSN 5325-01-128-6767

Part Number Request Date QTY Origin
5325-01-128-6767 2017-09-270 144 DIBBS
5325-01-128-6767 2017-08-243 54 DIBBS
5325-01-128-6767 2015-12-335 50 Canada
5325-01-128-6767 2015-04-104 50 Canada
5325-01-128-6767 2013-06-156 350 DIBBS
5325-01-128-6767 2013-01-03 223 DIBBS
5325-01-128-6767 2012-11-324 1 us
5325-01-128-6767 2012-10-279 30 Canada
5325-01-128-6767 2012-03-74 280 DIBBS
5325-01-128-6767 2011-09-250 290 DIBBS
5325-01-128-6767 2011-06-154 299 DIBBS
5325-01-128-6767 2010-09-272 156 DIBBS
5325-01-128-6767 2010-08-225 83 DIBBS
5325-01-128-6767 2010-06-181 132 DIBBS
5325-01-128-6767 2010-05-125 200 DIBBS
5325-01-128-6767 2010-02-49 200 DIBBS
5325-01-128-6767 2009-05-134 197 DIBBS
5325-01-128-6767 2009-04-112 206 DIBBS
5325-01-128-6767 2009-02-48 135 DIBBS

Cross Reference | NSN 5325-01-128-6767

Part Number Cage Code Manufacturer
2796278-1 55972 HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
7500-9 23893 PANELOC CORP THE
7500-9-SS 23893 PANELOC CORP THE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-128-6767

Technical Data | NSN 5325-01-128-6767

Characteristic Specifications
MATERIAL STEEL OVERALL
TURNLOCK STUD SHANK STYLE 20 STUD SHANK
GRIP LENGTH 0.236 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER 0.180 INCHES NOMINAL
TURNLOCK STUD HEAD STYLE 1 FLAT COUNTERSUNK
DIAMETER 0.278 INCHES MINIMUM AND 0.300 INCHES MAXIMUM

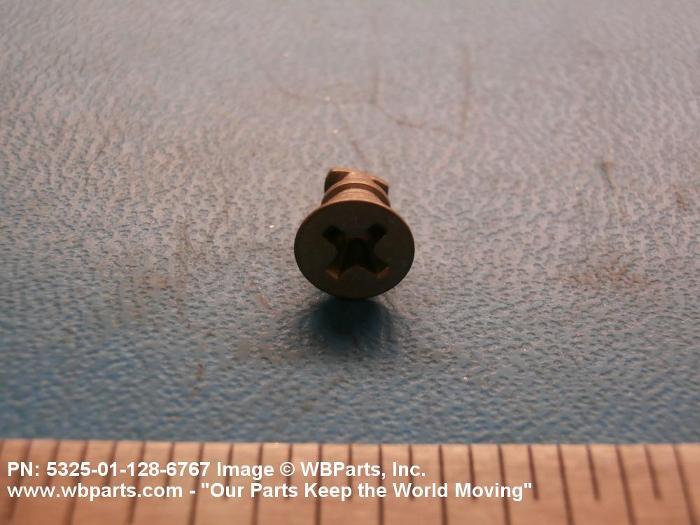

DRIVE TYPE CROSS RECESS
MATERIAL ACCOMMODATED THICKNESS 0.090 INCHES MINIMUM AND 0.125 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5325-01-128-6767

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 066440 FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-01-128-6767

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
