NSN 5325-01-128-5326 NAS18353, NAS1835-3, SL6063S
Product Details | PANEL FASTENER INSERT
5325-01-128-5326 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS18353, NAS1835-3, SL6063S, SL606-3S, 5325-01-128-5326, 01-128-5326, 5325011285326, 011285326
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAR 1982 | 01-128-5326 | 37444 ( INSERT, PANEL FASTENER ) |

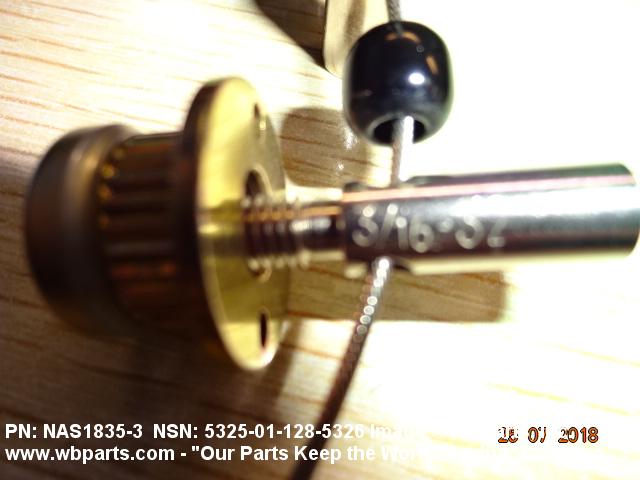

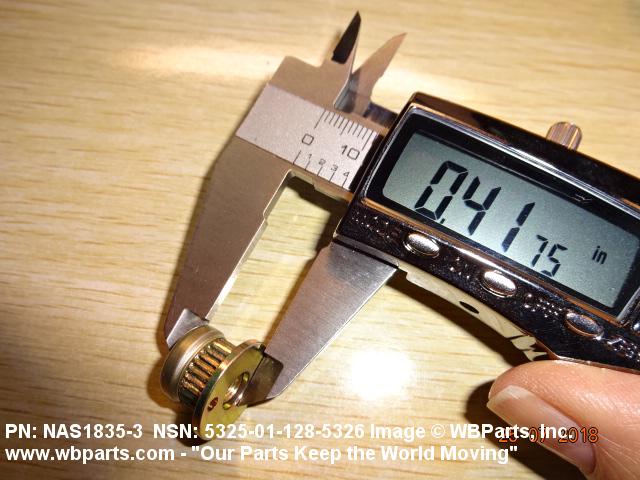

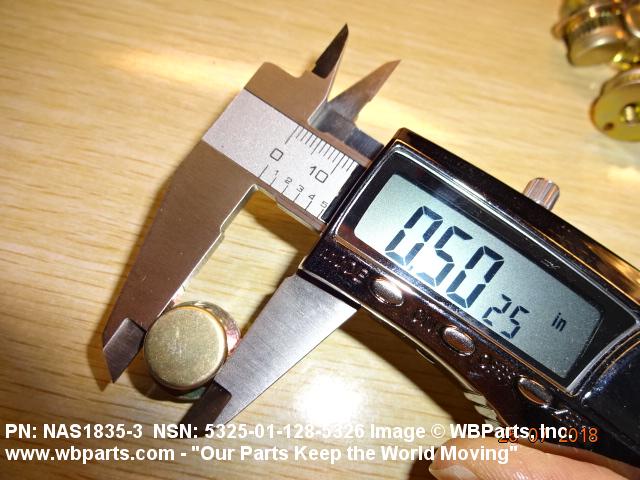

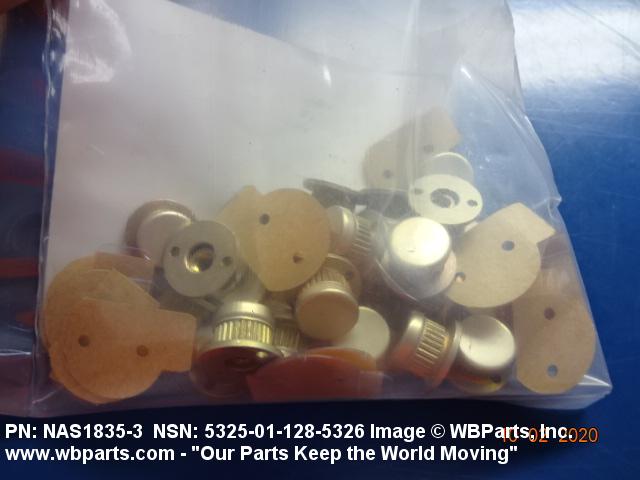

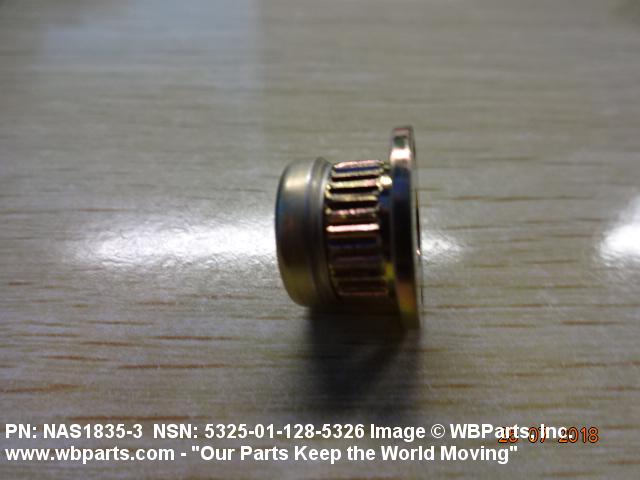

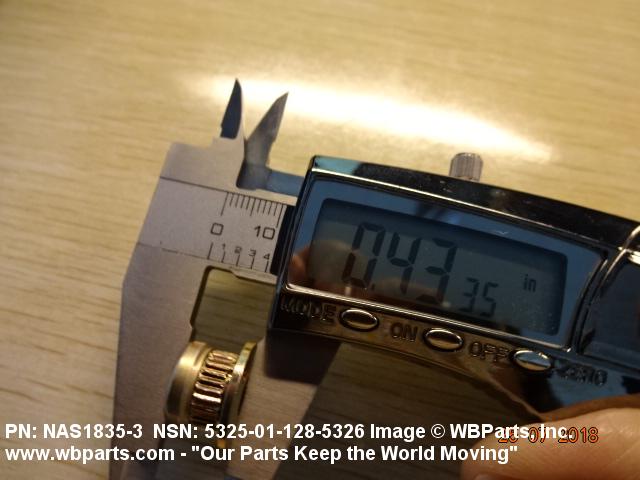

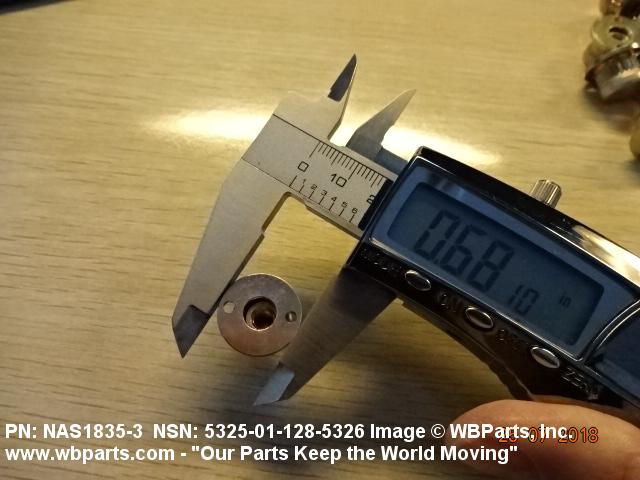

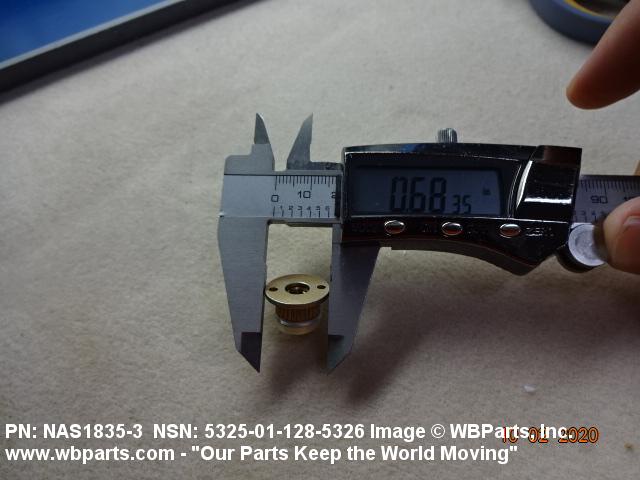

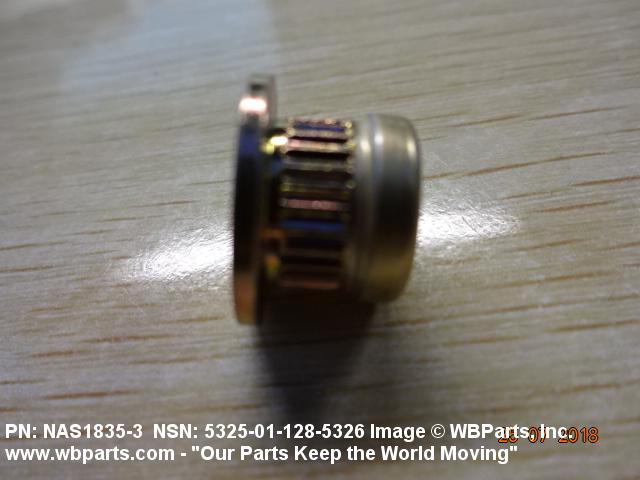

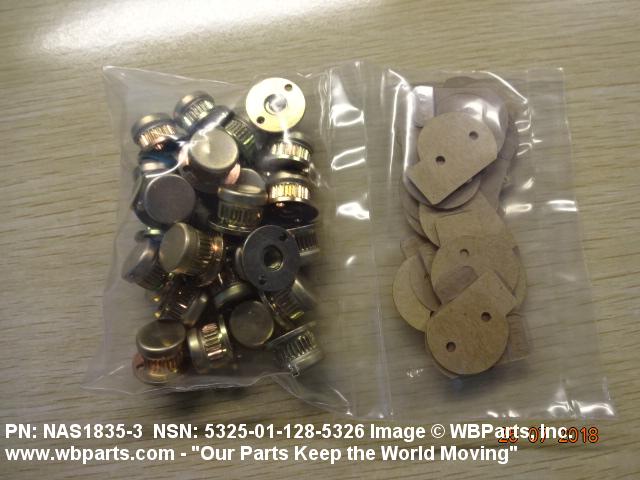

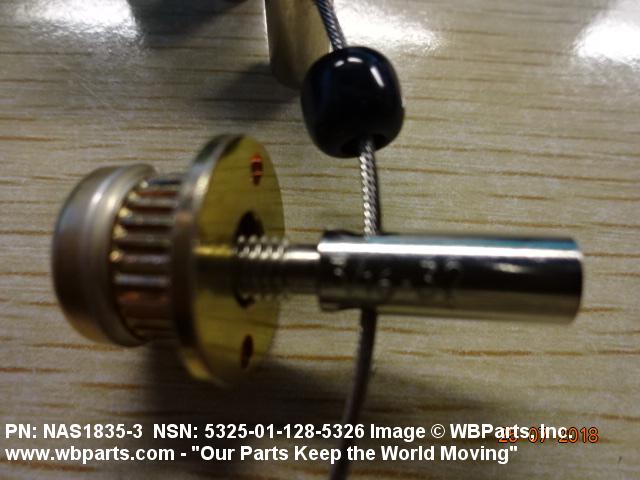

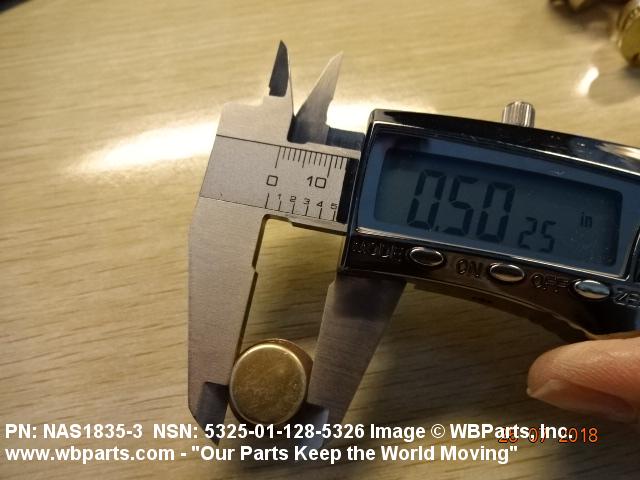

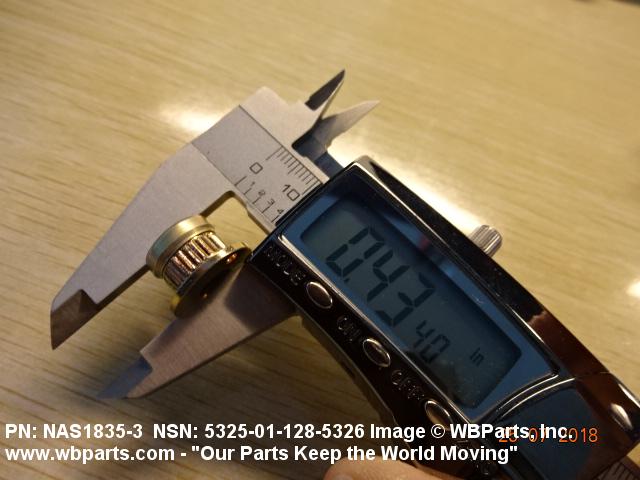

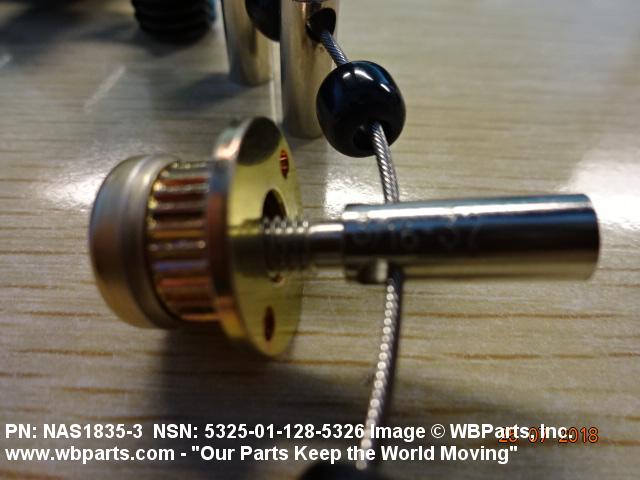

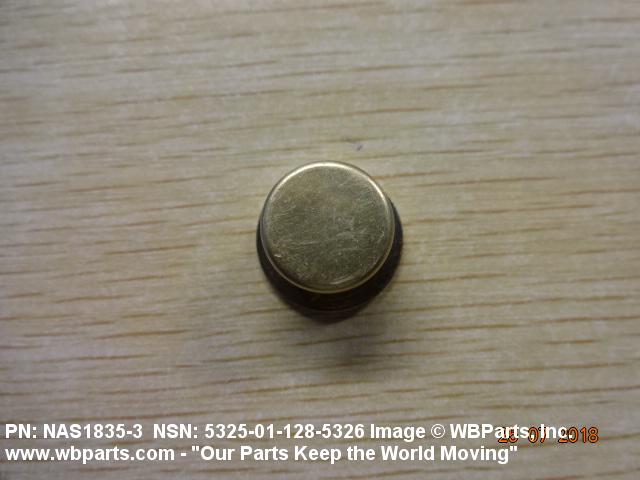

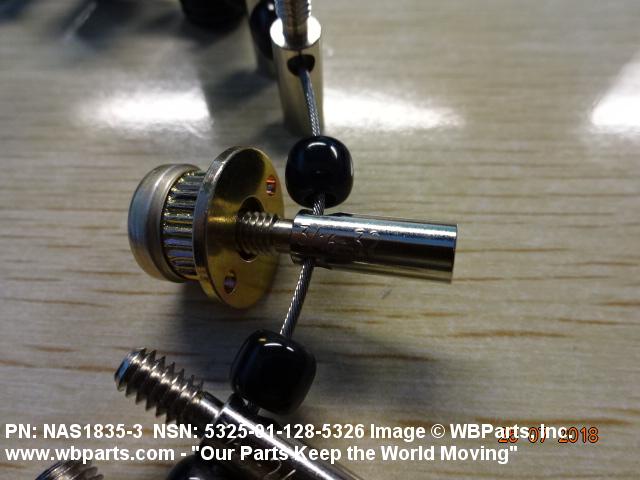

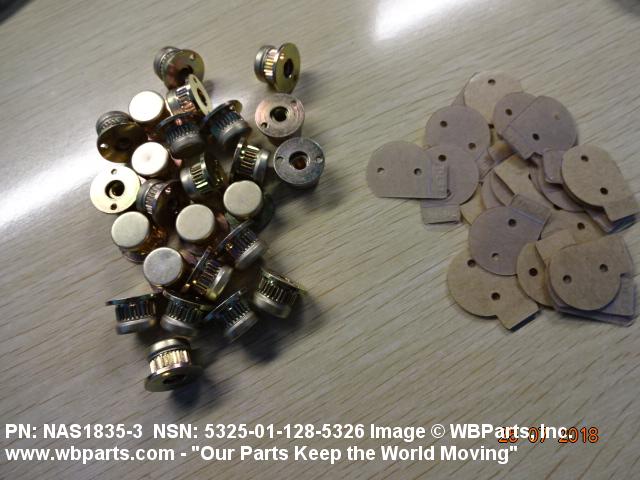

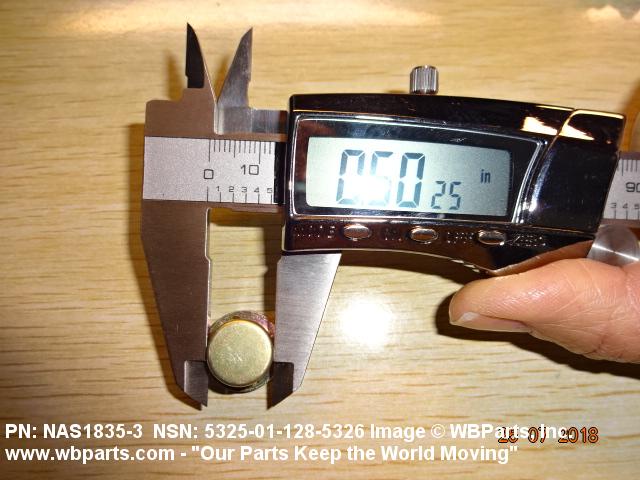

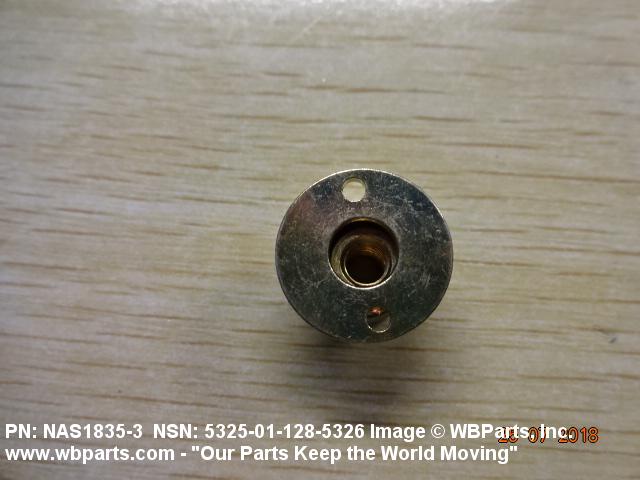

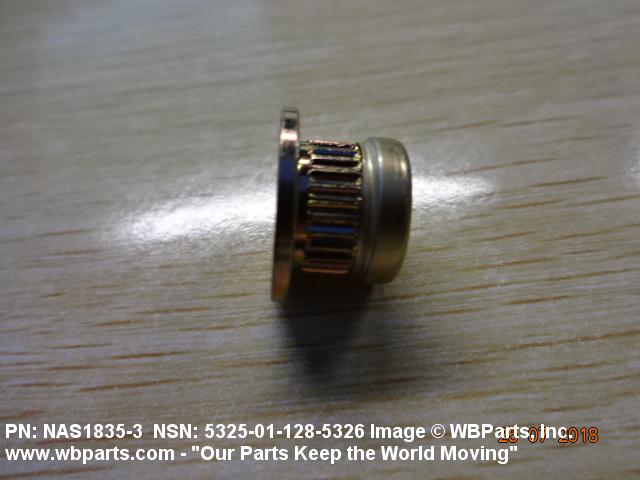

Drawings & Photos | NSN 5325-01-128-5326
Demand History | NSN 5325-01-128-5326
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-128-5326 | 2021-07-203 | 4803 | DIBBS |
| NAS18353 | 2017-11-318 | 8 | United States |
| SL6063S | 2016-12-342 | 50 | US |
| NAS1835-3 | 2015-06-176 | 880 | Turkey |
| NAS1835-3 | 2014-06-168 | 50 | Turkey |
| 5325-01-128-5326 | 2013-10-275 | 23362 | DIBBS |
| 5325-01-128-5326 | 2013-01-07 | 11323 | DIBBS |
| NAS18353 | 2012-09-270 | 500 | United States |
| 5325-01-128-5326 | 2012-06-171 | 4 | MANUAL |
| NAS1835-3 | 2012-06-171 | 4 | Malaysia |
| NAS1835-3 | 2012-06-158 | 50 | United States |
| NAS18353 | 2011-05-138 | 6 | United States |
| 5325-01-128-5326 | 2010-12-343 | 200 | United States |
| NAS18353 | 2010-11-327 | 8 | United States |
| 5325-01-128-5326 | 2010-02-42 | 25 | US |
| 5325-01-128-5326 | 2009-11-334 | 4086 | DIBBS |
| NAS18353 | 2009-11-329 | 12 | United States |
| 5325-01-128-5326 | 2009-11-316 | 6527 | DIBBS |
| 5325-01-128-5326 | 2009-10-282 | 6527 | DIBBS |
| NAS18353 | 2009-05-126 | 200 | Chile |
| 5325-01-128-5326 | 2009-05-126 | 200 | Chile |
| 5325-01-128-5326 | 2009-02-42 | 75 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-128-5326
Related Products | NSN 5325-01-128-5326
Technical Data | NSN 5325-01-128-5326
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY CAP STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 HOUSING STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES HOUSING 66 FED STD ALL MATERIAL RESPONSES NUT |
| SURFACE TREATMENT | ANODIZE OR CHROMATE CAP CADMIUM AND CHROMATE HOUSING CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541,CL 3 MIL SPEC 2ND TREATMENT RESPONSE CAP QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE HOUSING QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| INSERT STYLE | 18 PROTRUDING FLANGE |
| SHOULDER DIAMETER | 0.535 INCHES NOMINAL |
| FLANGE DIAMETER | 0.675 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| OVERALL LENGTH | 0.430 INCHES NOMINAL |
| BODY DIAMETER | 0.190 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNJF |
| FEATURES PROVIDED | POTTING HOLE OR POTTING SLOT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1835 PROFESSIONAL/INDUSTRIAL |
Restrictions/Controls & Freight Information | NSN 5325-01-128-5326
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-128-5326
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
