NSN 5325-01-127-7687 CA1809112HS, CA18091-12HS, STBF34K412

Product Details | TURNLOCK FASTENER STUD

5325-01-127-7687 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: CA1809112HS, CA18091-12HS, STBF34K412, STBF34K4-12, 5325-01-127-7687, 01-127-7687, 5325011277687, 011277687

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 MAR 1982	01-127-7687	18421 ( STUD, TURNLOCK FASTENER )

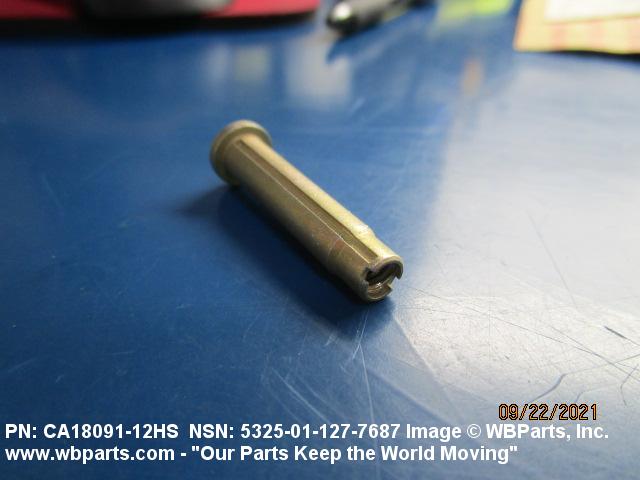

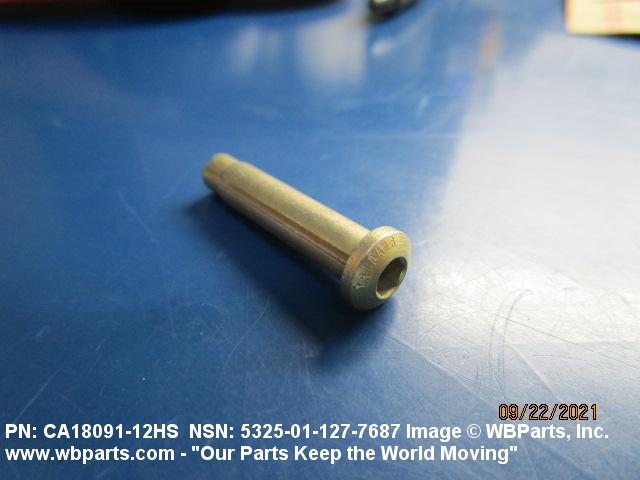

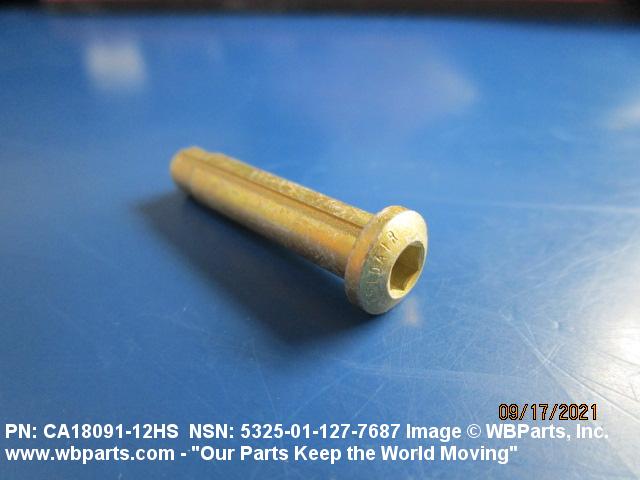

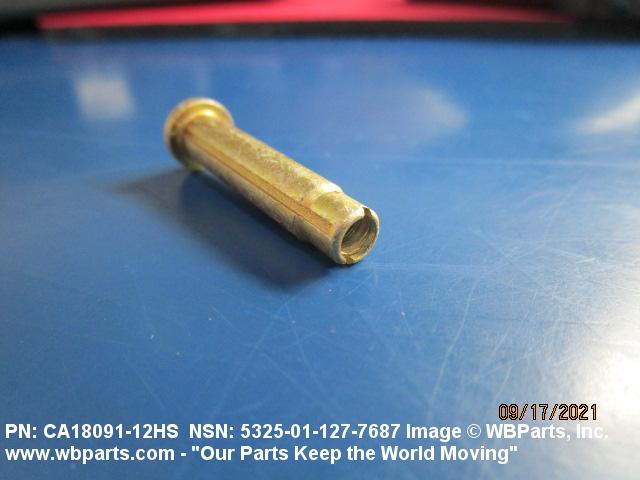

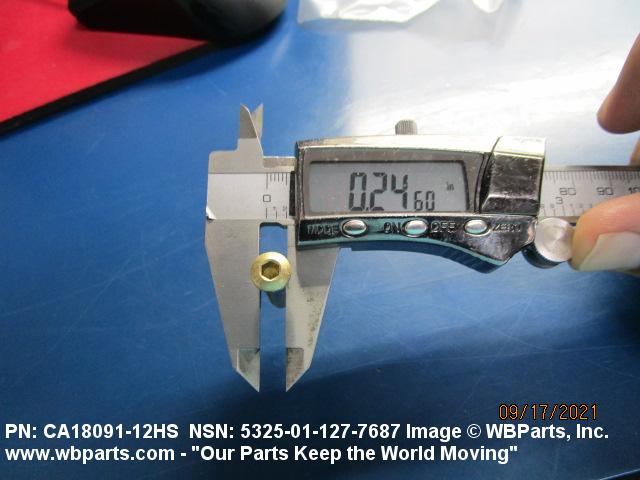

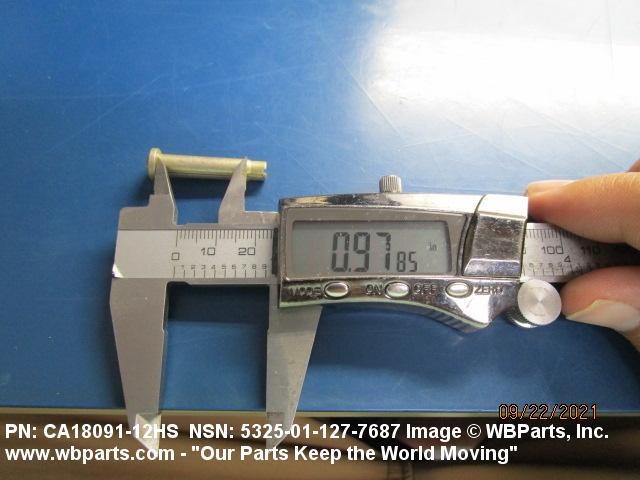

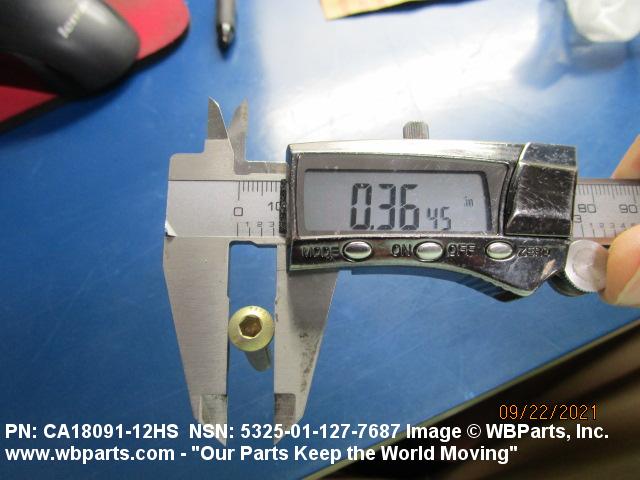

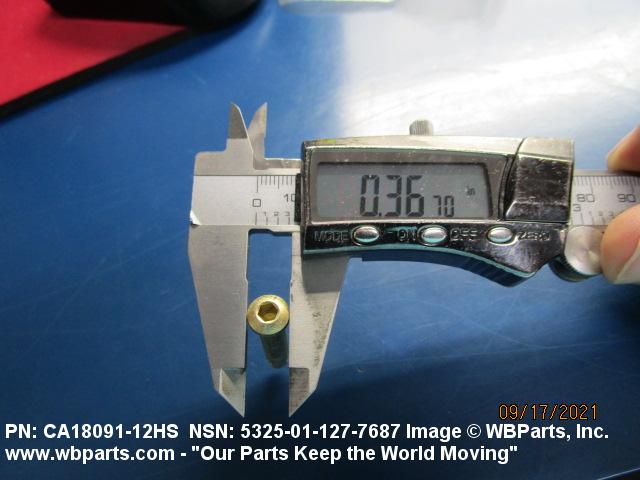

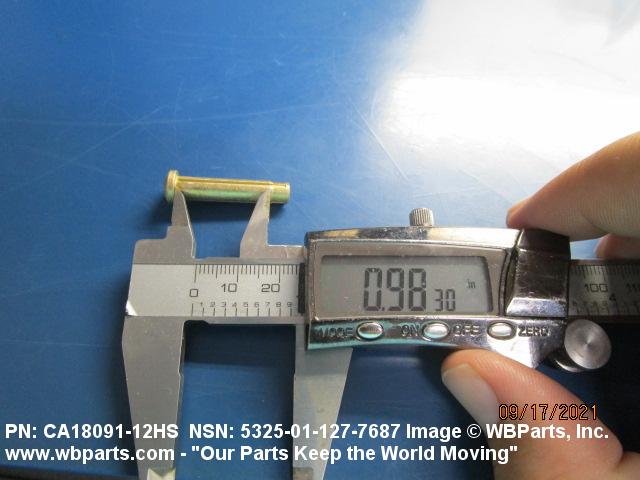

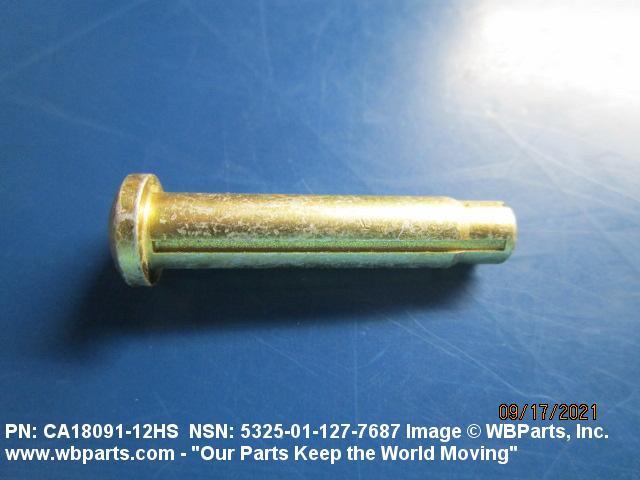

Drawings & Photos | NSN 5325-01-127-7687

Part Number	Request Date	QTY	Origin
CA18091-12HS	2022-08-234	74	DIBBS
STBF34K4-12	2022-08-234	74	DIBBS
CA18091-12HS	2022-08-223	74	DIBBS
STBF34K4-12	2022-08-223	74	DIBBS
CA18091-12HS	2021-12-339	12	DIBBS
STBF34K4-12	2021-12-339	12	DIBBS
5325-01-127-7687	2021-09-257	58	United States
CA18091-12HS	2021-07-187	58	DIBBS
STBF34K4-12	2021-07-187	58	DIBBS
CA18091-12HS	2021-03-76	58	DIBBS
STBF34K4-12	2021-03-76	58	DIBBS
CA18091-12HS	2020-10-293	47	DIBBS
STBF34K4-12	2020-10-293	47	DIBBS
CA18091-12HS	2020-10-282	47	DIBBS
STBF34K4-12	2020-10-282	47	DIBBS
CA18091-12HS	2020-08-243	11	DIBBS
STBF34K4-12	2020-08-243	11	DIBBS
CA18091-12HS	2020-03-73	55	DIBBS
STBF34K4-12	2020-03-73	55	DIBBS
CA18091-12HS	2020-03-65	55	DIBBS
STBF34K4-12	2020-03-65	55	DIBBS
5325-01-127-7687	2014-12-352	18	DIBBS
5325-01-127-7687	2012-06-160	25	DIBBS
5325-01-127-7687	2010-10-278	22	DIBBS
CA1809112HS	2009-06-176	25	US

Cross Reference | NSN 5325-01-127-7687

Part Number	Cage Code	Manufacturer
CA18091-12HS	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
STBF34K4-12	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-127-7687

Compare

Related Products | NSN 5325-01-127-7687

5325-01-127-7890, 5325-01-127-8098, 5325-01-127-8187, 5325-01-127-8781, 5325-01-127-8782

Technical Data | NSN 5325-01-127-7687

Characteristic	Specifications
MATERIAL	STEEL COMP 8740 OR STEEL COMP 4140 STUD
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE STUD
SURFACE TREATMENT	CADMIUM AND CHROMATE STUD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STUD

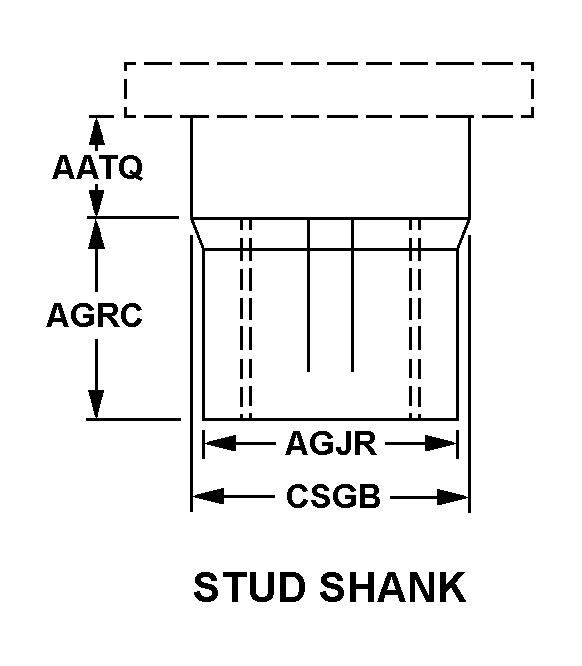

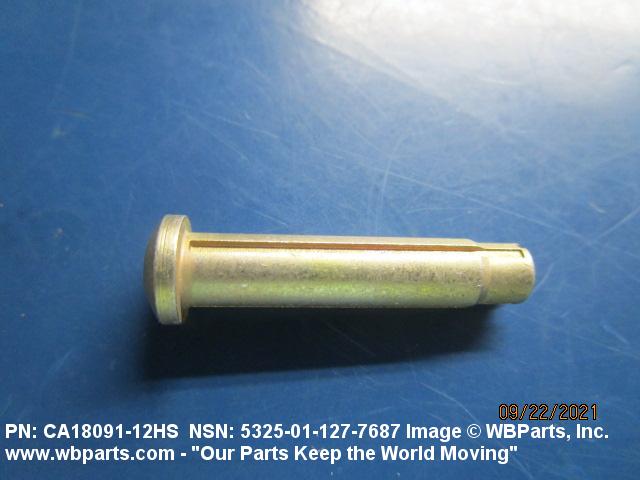

TURNLOCK STUD SHANK STYLE	17 STUD SHANK
GRIP LENGTH	0.921 INCHES MINIMUM AND 0.990 INCHES MAXIMUM

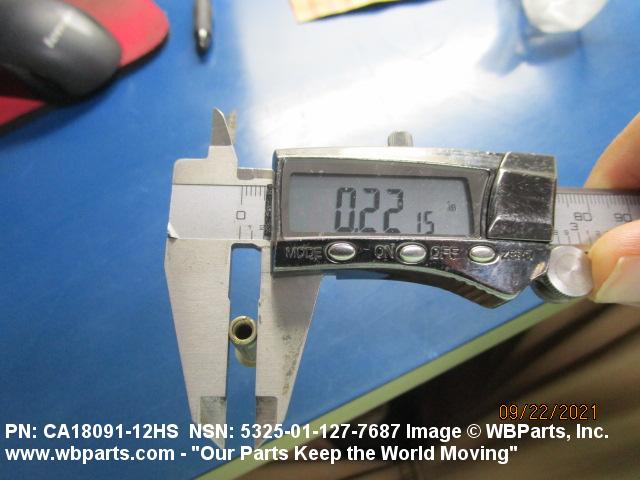

MINOR DIAMETER	0.221 INCHES NOMINAL

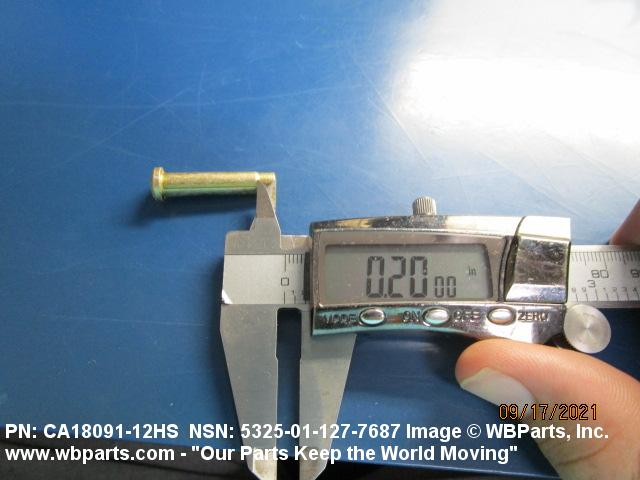

EXTENSION LENGTH	0.210 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER	0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM
TURNLOCK STUD HEAD STYLE	2 FILLISTER
DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.164-32 UNC
SECURING DEVICE TYPE	RING

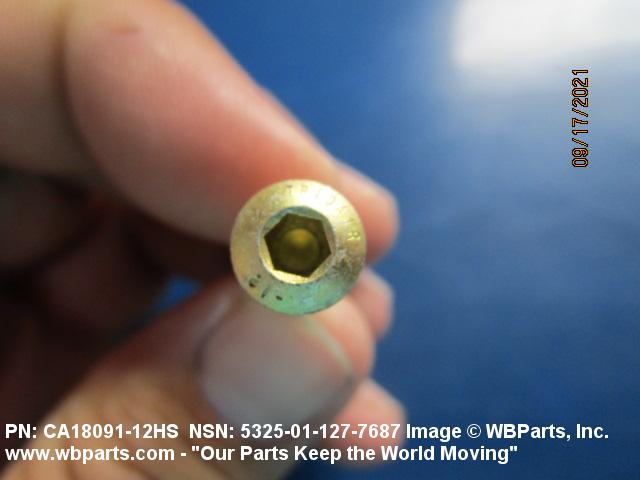

DRIVE TYPE	SOCKET
MATERIAL ACCOMMODATED THICKNESS	ANY ACCEPTABLE
