NSN 5325-01-119-8245 79698820, 79698-820, 01-119-8245
Product Details | SCREW THREAD INSERT
5325-01-119-8245 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: 79698820, 79698-820, 5325-01-119-8245, 01-119-8245, 5325011198245, 011198245
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1981 | 01-119-8245 | 11444 ( INSERT, SCREW THREAD ) |

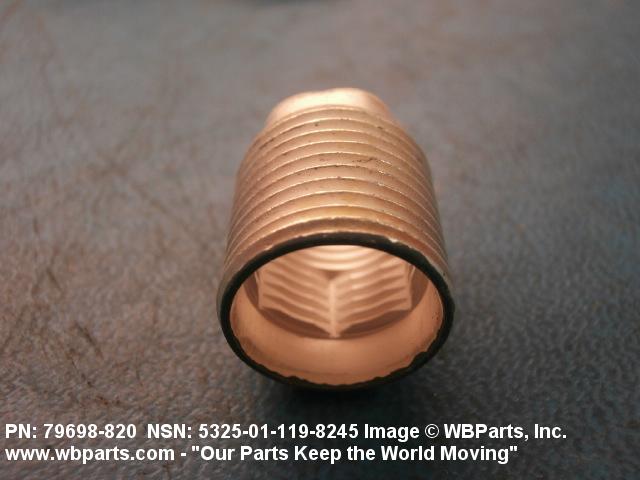

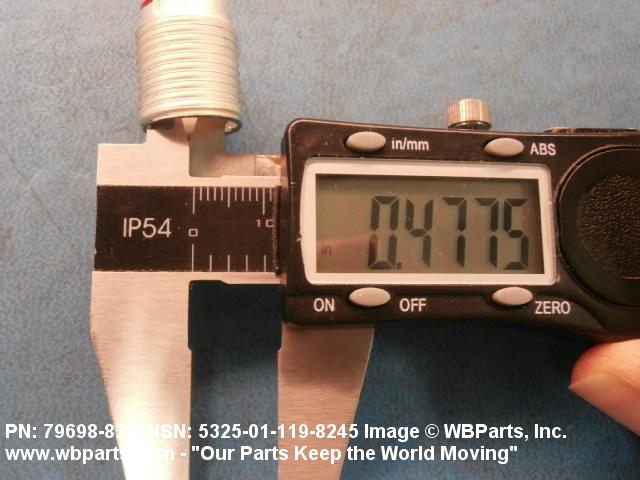

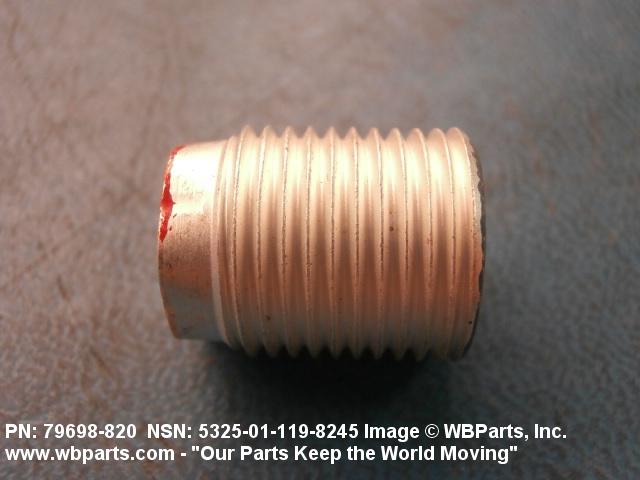

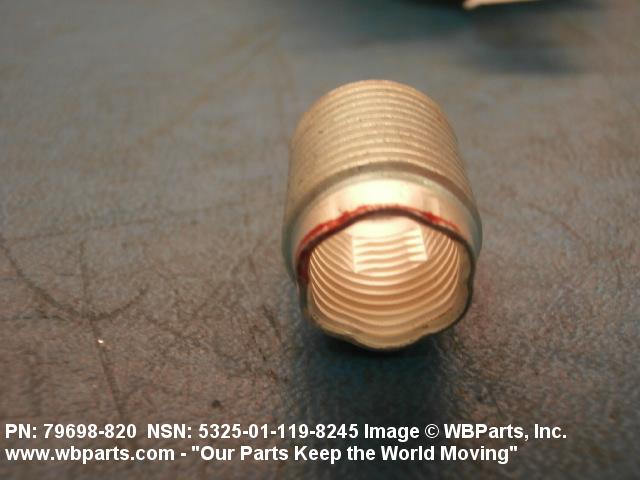

Drawings & Photos | NSN 5325-01-119-8245
Demand History | NSN 5325-01-119-8245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-119-8245 | 2024-11-324 | 8500 | US |
| 5325-01-119-8245 | 2024-11-323 | 8952 | US |
| 79698-820 | 2024-10-303 | 8952 | DIBBS |
| 79698-820 | 2024-10-303 | 399 | DIBBS |
| 79698-820 | 2024-10-291 | 2720 | DIBBS |
| 79698-820 | 2024-10-291 | 399 | DIBBS |
| 79698-820 | 2024-10-283 | 2720 | DIBBS |
| 79698-820 | 2024-05-137 | 6563 | DIBBS |
| 79698-820 | 2024-03-85 | 550 | DIBBS |
| 79698-820 | 2024-03-77 | 550 | DIBBS |
| 5325-01-119-8245 | 2024-03-64 | 12 | United States |
| 5325-01-119-8245 | 2024-02-59 | 12 | United States |
| 79698-820 | 2023-12-351 | 798 | DIBBS |
| 5325-01-119-8245 | 2023-09-272 | 6580 | US |
| 5325-01-119-8245 | 2023-09-261 | 6563 | US |
| 79698-820 | 2023-09-260 | 6563 | DIBBS |
| 5325-01-119-8245 | 2021-01-07 | 1 | DIBBS-RFPs |
| 79698-820 | 2020-10-278 | 1271 | DIBBS |
| 79698-820 | 2020-03-75 | 3571 | DIBBS |
| 79698-820 | 2019-10-293 | 2312 | DIBBS |
| 79698-820 | 2019-09-245 | 3148 | DIBBS |
| 79698-820 | 2019-08-216 | 3169 | DIBBS |
| 79698-820 | 2019-07-205 | 2220 | DIBBS |
| 79698-820 | 2019-07-196 | 1200 | DIBBS |
| 79698-820 | 2019-06-174 | 1060 | DIBBS |
| 5325-01-119-8245 | 2018-05-134 | 3500 | DIBBS |
| 5325-01-119-8245 | 2018-04-91 | 671 | DIBBS |
| 5325-01-119-8245 | 2016-09-251 | 50 | Canada |
| 79698820 | 2016-06-172 | 5 | United States |
| 5325-01-119-8245 | 2013-12-354 | 404 | Taiwan |
| 5325-01-119-8245 | 2013-01-28 | 4900 | DIBBS |
| 5325-01-119-8245 | 2012-08-243 | 3069 | DIBBS |
| 5325-01-119-8245 | 2012-03-88 | 96 | US |
| 79698820 | 2011-06-157 | 1680 | US |
| 79698820 | 2008-07-192 | 200 | Israel |
Cross Reference | NSN 5325-01-119-8245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 79698-820 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-119-8245
Technical Data | NSN 5325-01-119-8245
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

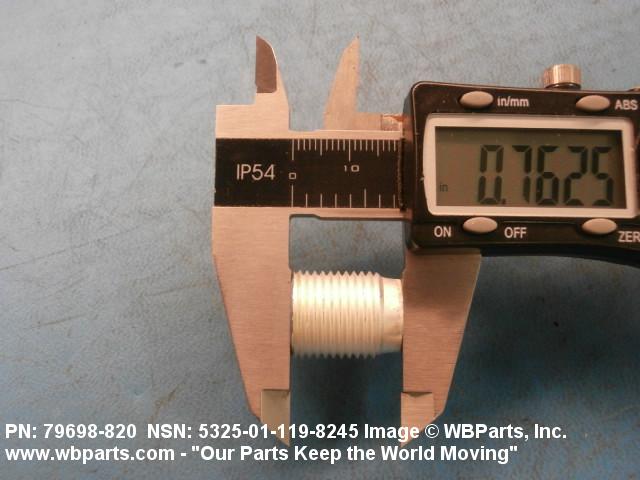

| LENGTH | 0.758 INCHES MINIMUM AND 0.768 INCHES MAXIMUM |

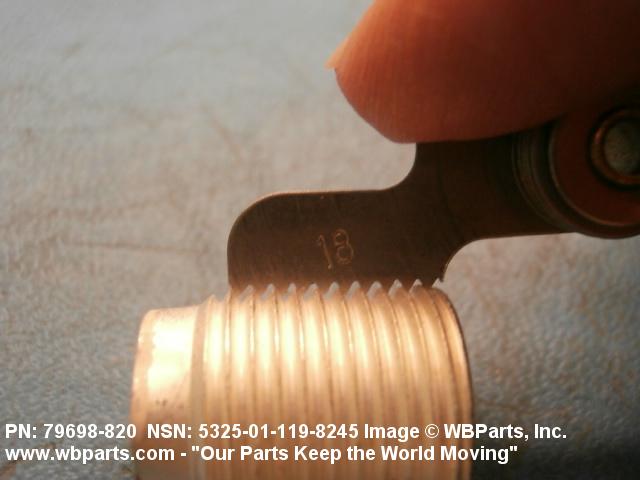

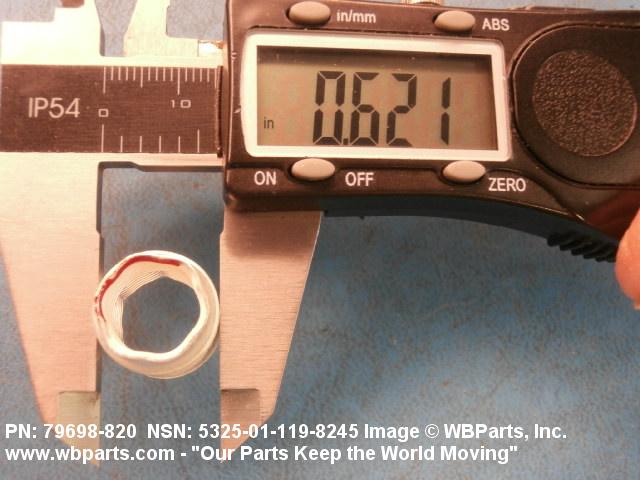

| INSERT SIZE | 0.625-18 UNJF-3A |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |

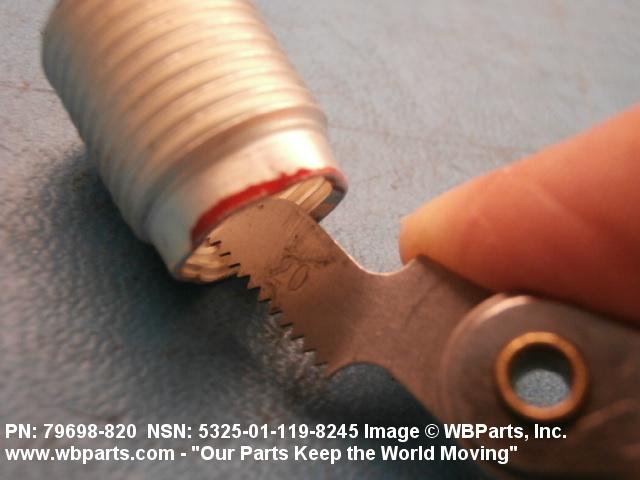

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| FEATURES PROVIDED | INDIVIDUALLY KEYED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | OVERALL SILVER |
Restrictions/Controls & Freight Information | NSN 5325-01-119-8245
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5325-01-119-8245
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
