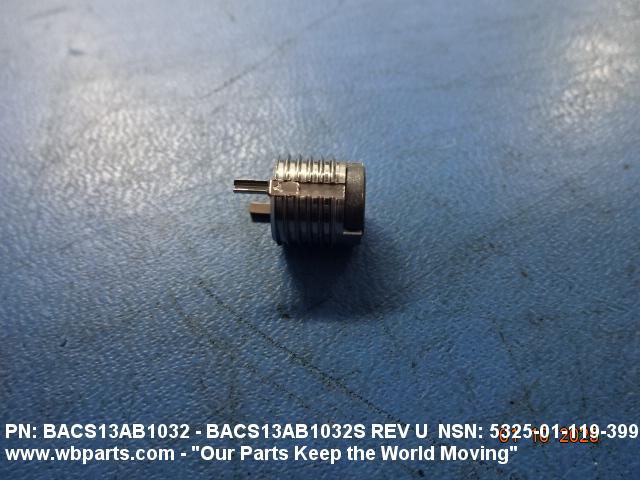

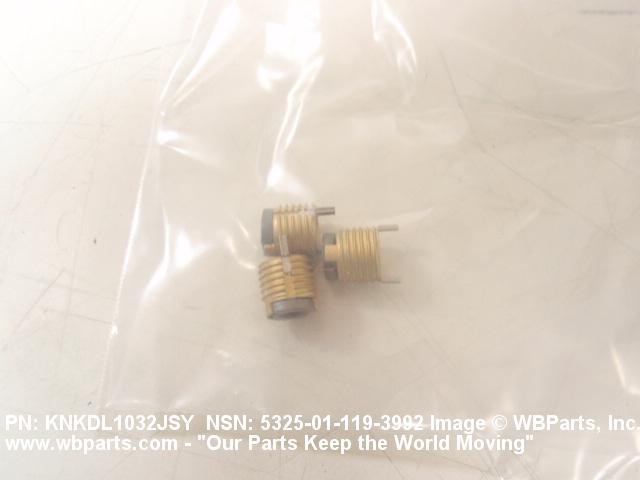

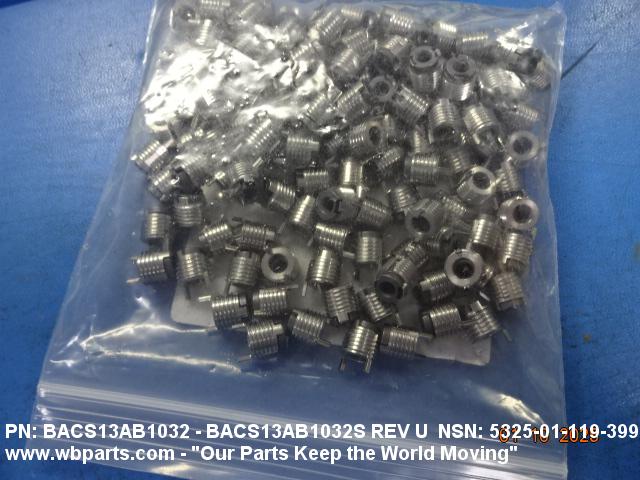

NSN 5325-01-119-3992 BACS13AB1032, KNKDL1032JSY, 11437527-9

Product Details | SCREW THREAD INSERT

5325-01-119-3992 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: BACS13AB1032, KNKDL1032JSY, 11437527-9, 5325-01-119-3992, 01-119-3992, 5325011193992, 114375279, 011193992

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 SEP 1981	01-119-3992	11444 ( INSERT, SCREW THREAD )

Drawings & Photos | NSN 5325-01-119-3992

Part Number	Request Date	QTY	Origin
KNKDL1032JSY	2024-12-358	130	United States
5325-01-119-3992	2024-02-32	64	United States
5325-01-119-3992	2023-02-40	64	United States
BACS13AB1032	2016-12-347	35	US
BACS13AB1032	2016-07-189	360	US
5325-01-119-3992	2014-02-55	297	DIBBS
BACS13AB1032	2012-06-171	20	United States
KNKDL1032JSY	2012-06-171	20	United States
5325-01-119-3992	2011-10-293	400	DIBBS
5325-01-119-3992	2011-09-264	200	DIBBS
5325-01-119-3992	2011-08-230	56	DIBBS
KNKDL1032JSY	2010-12-336	3	United States
5325-01-119-3992	2009-11-321	75	US
KNKDL1032JSY	2009-07-211	50	IT
BACS13AB1032	2009-02-58	6	US
KNKDL1032JSY	2009-02-57	32	US
KNKDL1032JSY	2009-02-57	50	US

Cross Reference | NSN 5325-01-119-3992

Part Number	Cage Code	Manufacturer
11437527-9	18876	U S ARMY AVIATION AND MISSILE COMMAND
BACS13AB1032	81205	THE BOEING COMPANY DBA BOEING
KNKDL1032JSY	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-119-3992

Compare

Related Products | NSN 5325-01-119-3992

5325-01-119-4765, 5325-01-119-4801, 5325-01-119-4802, 5325-01-119-4803, 5325-01-119-4948

Technical Data | NSN 5325-01-119-3992

Characteristic	Specifications
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	H26 KEYLOCK
LENGTH	0.385 INCHES MINIMUM AND 0.415 INCHES MAXIMUM
INTERNAL THREAD RELIEF DEPTH	0.150 INCHES NOMINAL
FULL INTERNAL THREAD LENGTH	0.250 INCHES NOMINAL
INSERT SIZE	7/16-20 UNF 2A
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
FEATURES PROVIDED	INDIVIDUALLY KEYED
SPECIFICATION/STANDARD DATA	81205-BACS13AB MANUFACTURERS SPECIFICATION
