Product Details | PANEL FASTENER INSERT

5325-01-118-8995 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Part Alternates: NAS183233, NAS1832-3-3, 5325-01-118-8995, 01-118-8995, 5325011188995, 011188995

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 13 SEP 1981 01-118-8995

Drawings & Photos | NSN 5325-01-118-8995


Demand History | NSN 5325-01-118-8995

Part Number Request Date QTY Origin
5325-01-118-8995 2023-05-136 25 BE
NAS183233 2020-05-136 24 US
5325-01-118-8995 2019-07-195 2000 DIBBS
5325-01-118-8995 2018-06-178 920 DIBBS
5325-01-118-8995 2018-05-130 1219 DIBBS
5325-01-118-8995 2017-02-33 1346 DIBBS
5325-01-118-8995 2016-08-216 1640 DIBBS
5325-01-118-8995 2016-05-129 1640 DIBBS
NAS183233 2016-01-18 50 US
NAS183233 2015-02-57 300 CA
5325-01-118-8995 2012-06-171 100 MANUAL
NAS1832-3-3 2012-06-171 100 Malaysia
5325-01-118-8995 2010-12-341 250 US
NAS183233 2010-10-295 10 US
NAS183233 2010-07-182 100 Spain
5325-01-118-8995 2010-04-97 500 United States
NAS183233 2010-02-36 450 United States
NAS183233 2009-12-335 500 US
NAS183233 2009-12-335 500 United States
NAS183233 2009-09-266 12 Colombia
5325-01-118-8995 2009-08-236 50 US
NAS183233 2008-11-315 70 US

Cross Reference | NSN 5325-01-118-8995

Part Number Cage Code Manufacturer
NAS1832-3-3 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-118-8995

Technical Data | NSN 5325-01-118-8995

Characteristic Specifications
MATERIAL STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

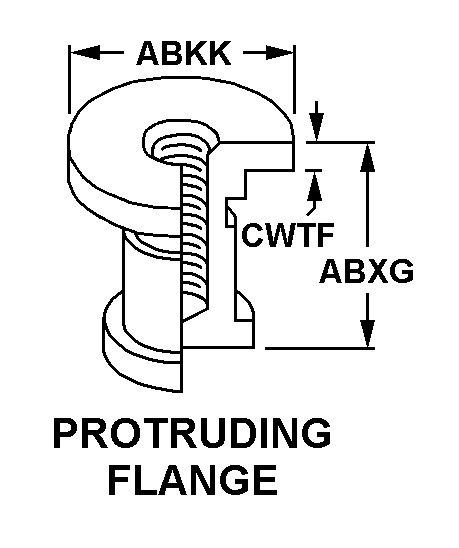

INSERT STYLE 19 PROTRUDING FLANGE
FLANGE DIAMETER 0.550 INCHES MINIMUM AND 0.560 INCHES MAXIMUM
OVERALL LENGTH 0.375 INCHES NOMINAL

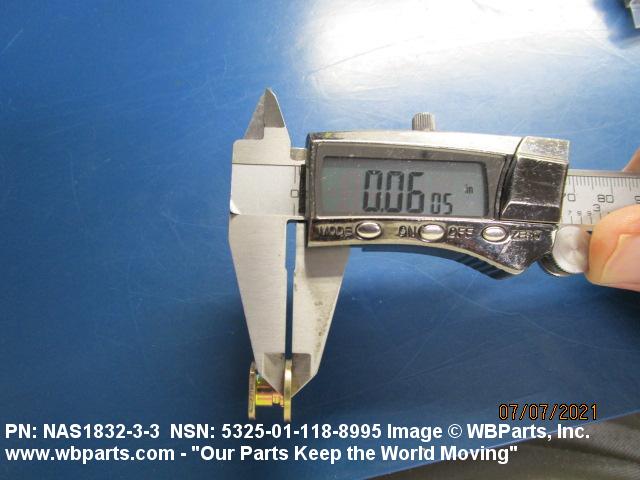

FLANGE THICKNESS 0.060 INCHES NOMINAL
HOLE TYPE THREADED
THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.190-32 UNJF
FEATURES PROVIDED POTTING HOLE OR POTTING SLOT
SPECIFICATION/STANDARD DATA 80205-NAS1832 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5325-01-118-8995

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
