Product Details | SCREW THREAD INSERT

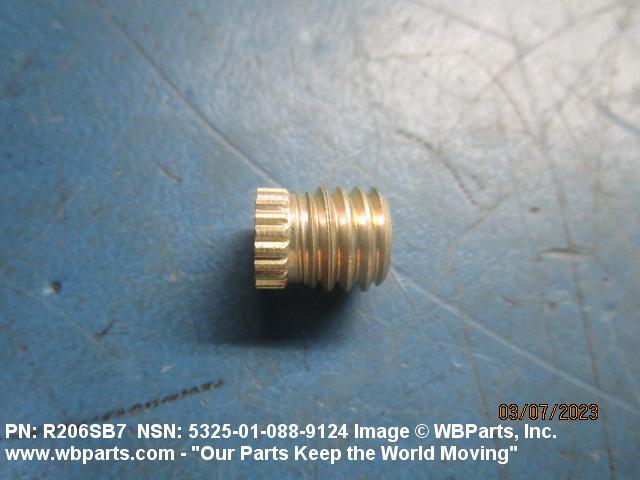

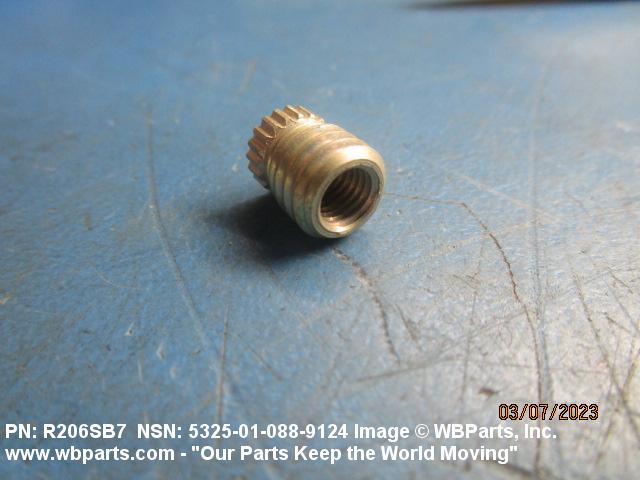

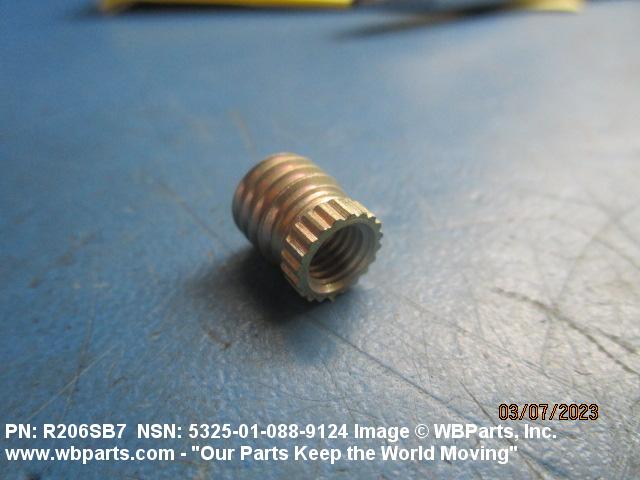

5325-01-088-9124 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: R206SB7, 5325-01-088-9124, 01-088-9124, 5325010889124, 010889124

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 23 JAN 1980 01-088-9124

Drawings & Photos | NSN 5325-01-088-9124


Demand History | NSN 5325-01-088-9124

Part Number Request Date QTY Origin
5325-01-088-9124 2024-08-226 50 United States
R206SB7 2024-07-207 50 US
R206SB7 2024-07-190 50 US
5325-01-088-9124 2023-02-52 50 United States

Cross Reference | NSN 5325-01-088-9124

Part Number Cage Code Manufacturer
R206SB7 83324 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-088-9124

Technical Data | NSN 5325-01-088-9124

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR H3 SERRATED
LENGTH 0.438 INCHES NOMINAL
INSERT SIZE 0.375-16
THREAD SERIES DESIGNATOR UNJF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3B

Restrictions/Controls & Freight Information | NSN 5325-01-088-9124

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
