NSN 5325-01-075-7759 MS51831106, MS51831-106, KH9905813
Product Details | SCREW THREAD INSERT

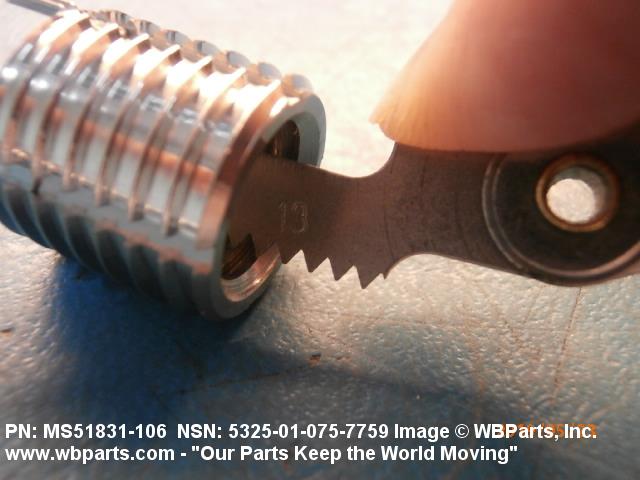

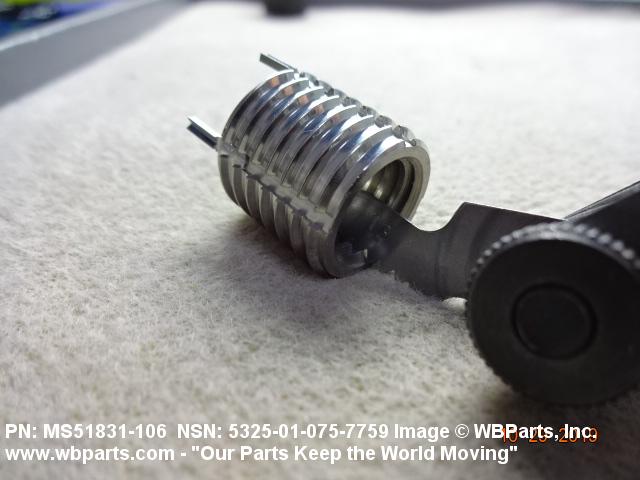

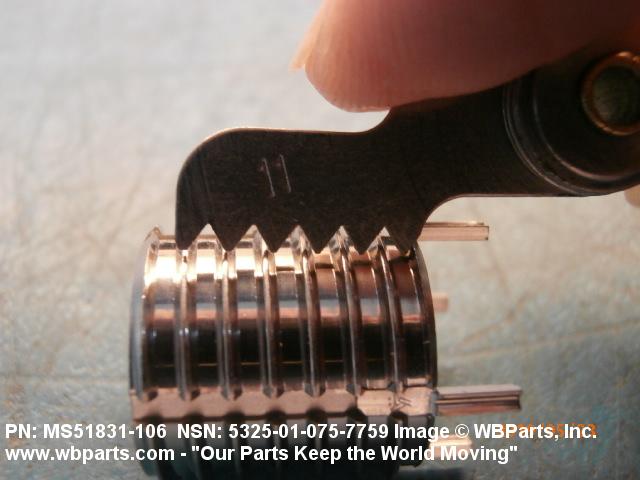

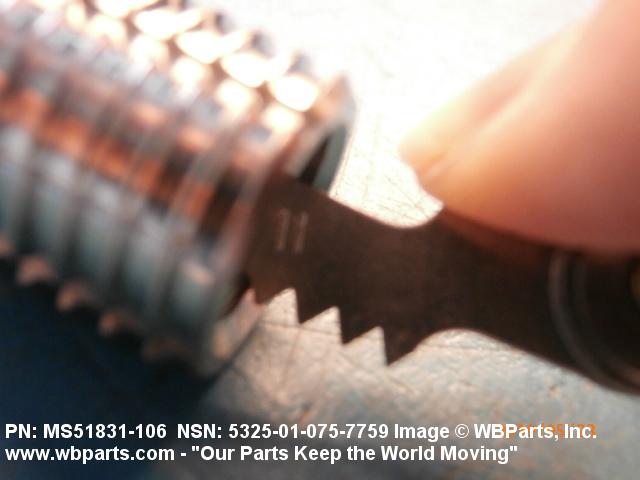

5325-01-075-7759 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS51831106, MS51831-106, KH9905813, KH9905-813, KNH813J, 1/2-13UNC-2AX1. 50, 1213UNC2AX150, 72874186, 7287418-6, 87354700, 873547-00, 5325-01-075-7759, 01-075-7759, 5325010757759, 010757759
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 APR 1979 | 01-075-7759 | 11444 ( INSERT, SCREW THREAD ) |

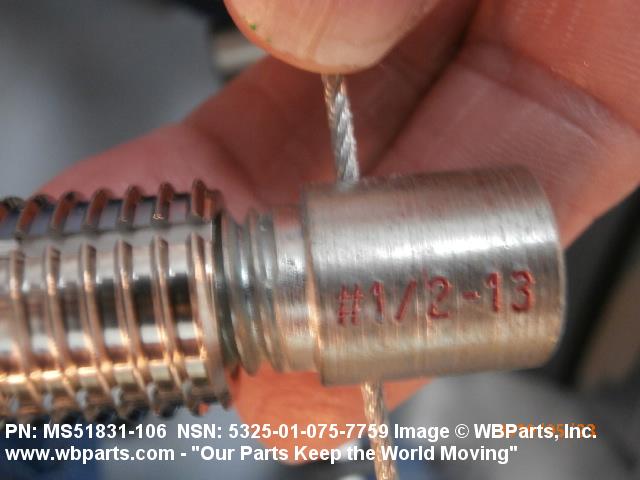

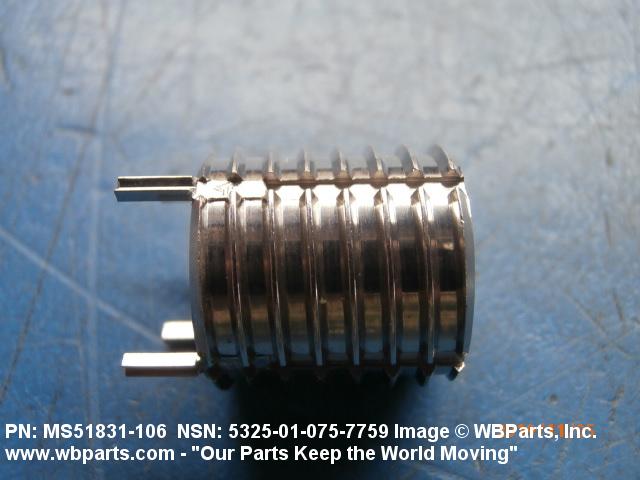

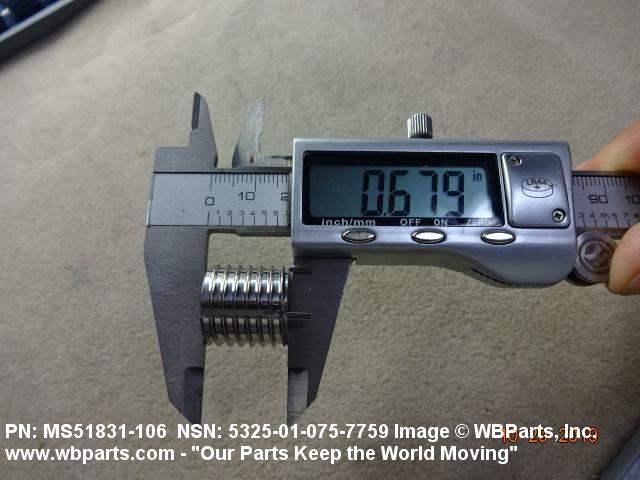

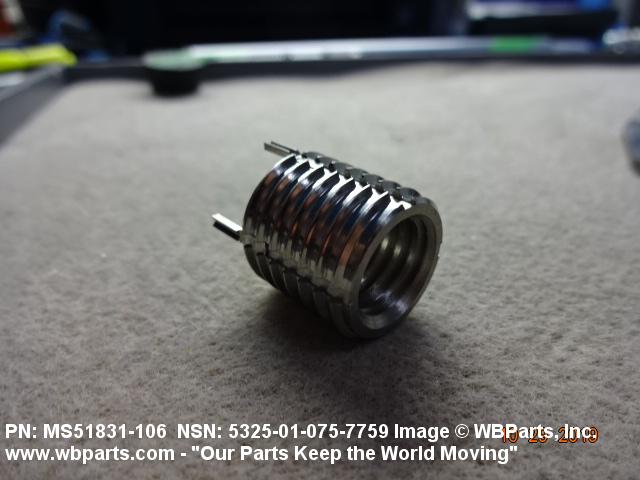

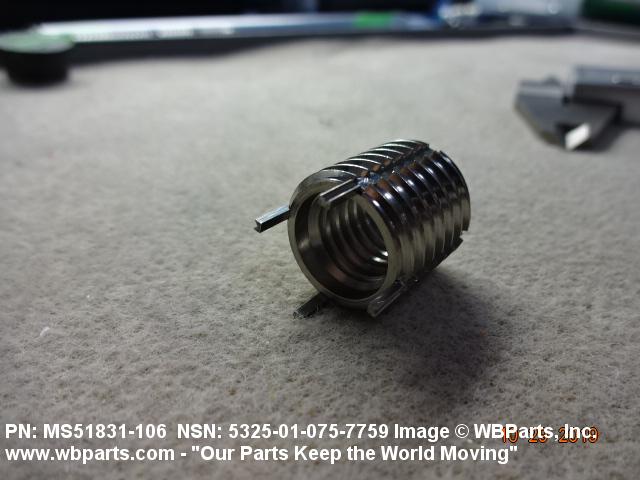

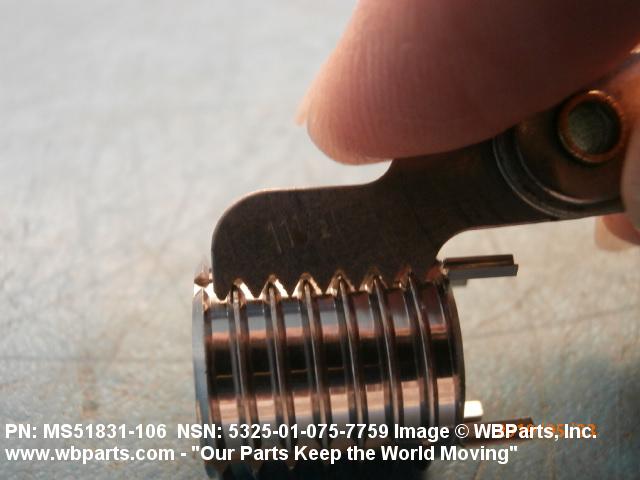

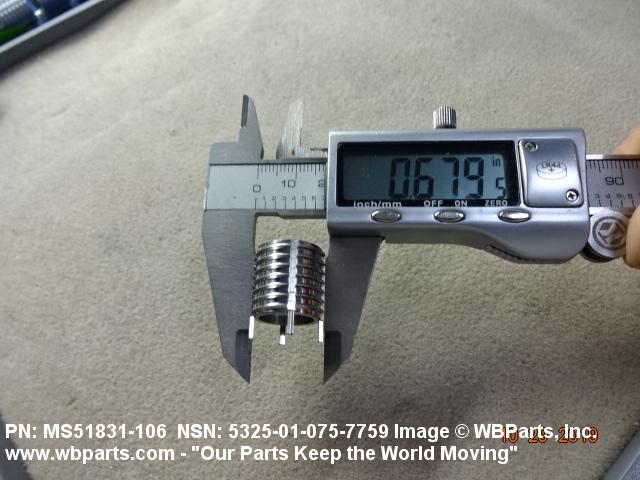

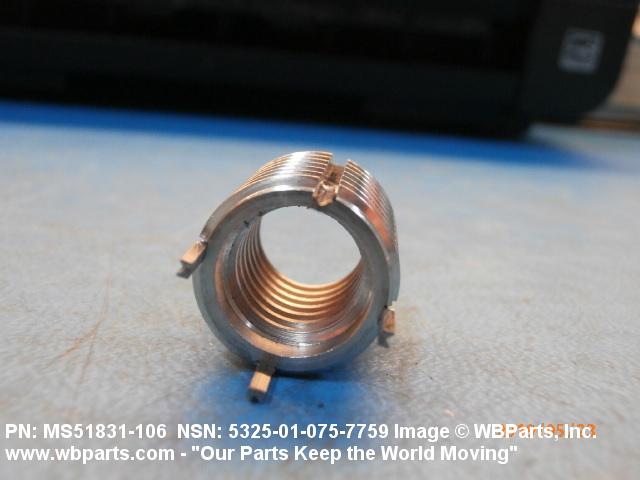

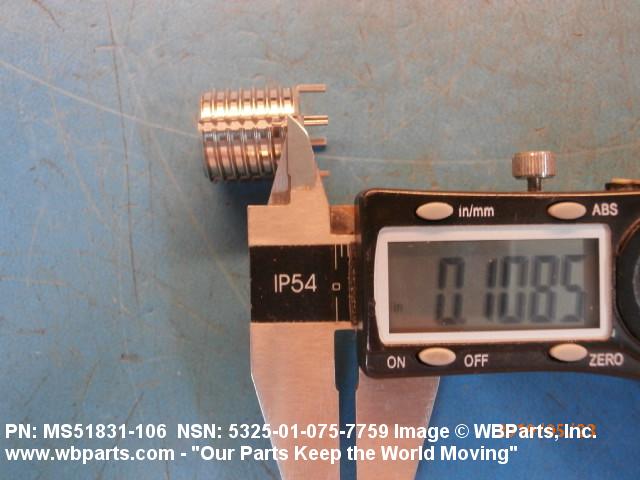

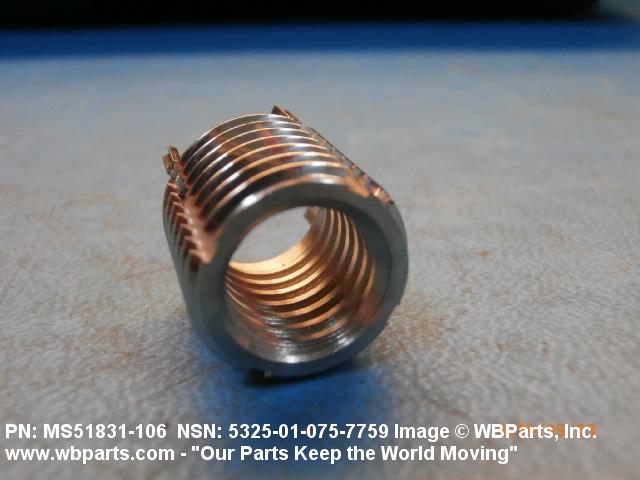

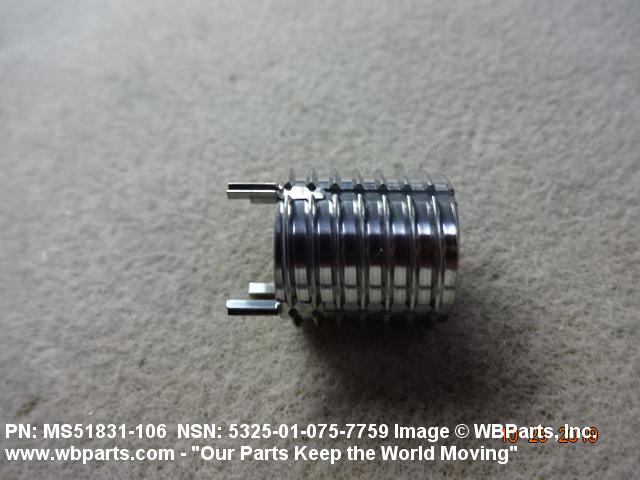

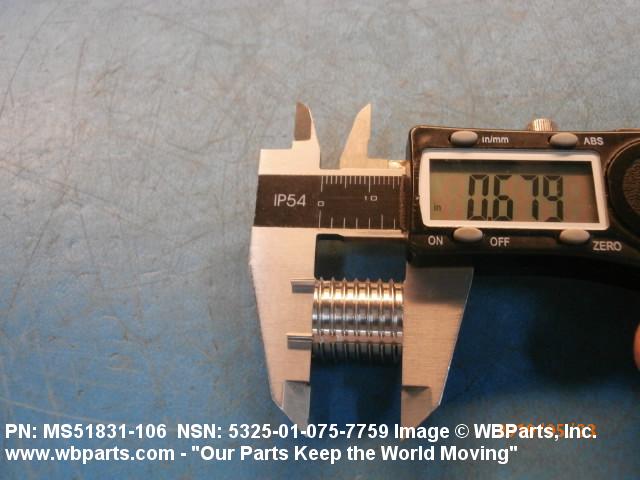

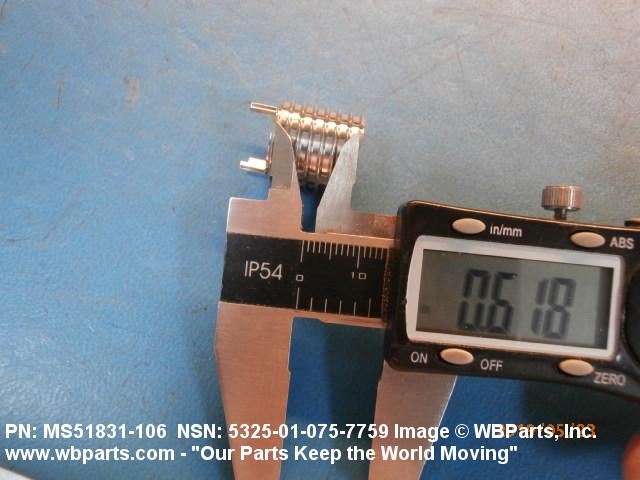

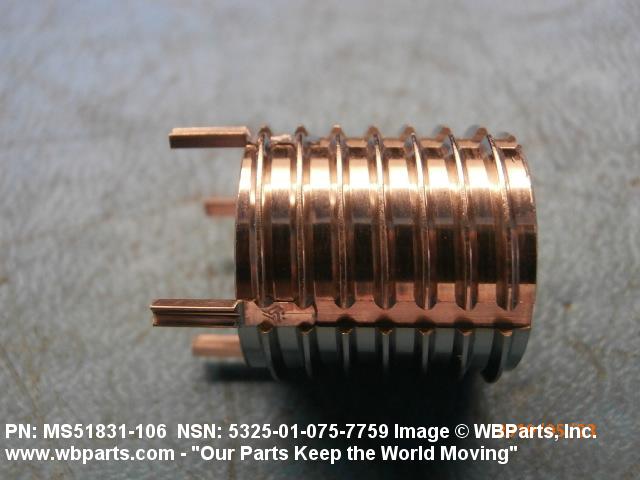

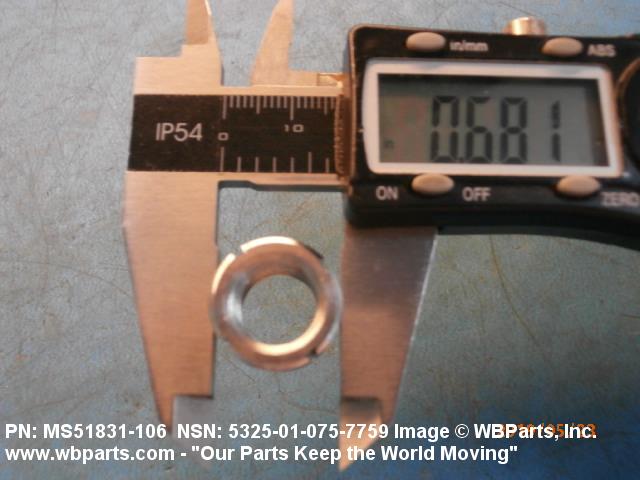

Drawings & Photos | NSN 5325-01-075-7759
Demand History | NSN 5325-01-075-7759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-075-7759 | 2023-03-67 | 786 | DIBBS |
| 5325-01-075-7759 | 2021-10-300 | 340 | United States |
| 5325-01-075-7759 | 2021-02-39 | 340 | United States |
| 5325-01-075-7759 | 2019-10-295 | 500 | United States |
| MS51831106 | 2019-05-141 | 12 | United States |
| MS51831106 | 2018-03-79 | 700 | US |
| 5325-01-075-7759 | 2016-11-313 | 25 | US |
| MS51831106 | 2016-04-118 | 236 | US |
| KNH813J | 2015-11-329 | 20 | us |
| MS51831106 | 2014-03-87 | 30 | United States |
| MS51831-106 | 2014-03-71 | 667 | United States |
| MS51831106 | 2013-11-318 | 10 | United States |
| 5325-01-075-7759 | 2013-04-91 | 2 | United States |
| MS51831106 | 2012-04-100 | 100 | United States |
| 5325-01-075-7759 | 2012-03-61 | 15 | US |
| MS51831106 | 2012-01-27 | 4 | United States |
| 5325-01-075-7759 | 2011-11-312 | 3 | US |
| KNH813J | 2011-10-298 | 352 | US |
| KNH813J | 2011-08-214 | 24 | US |
| 5325-01-075-7759 | 2011-01-06 | 33 | United States |
| MS51831106 | 2010-10-279 | 288 | US |
| MS51831106 | 2010-05-134 | 240 | US |
| MS51831106 | 2010-04-98 | 120 | us |
| 5325-01-075-7759 | 2010-02-56 | 6500 | US |
| KNH813J | 2009-10-292 | 1300 | IL |
| MS51831106 | 2009-10-292 | 1300 | IL |
| KNH813J | 2009-10-287 | 25 | US |
| 5325-01-075-7759 | 2009-08-230 | 800 | US |
| MS51831106 | 2009-06-153 | 1500 | US |
| 5325-01-075-7759 | 2009-04-105 | 8067 | DIBBS |
| 5325-01-075-7759 | 2009-03-89 | 26 | United States |
| 5325-01-075-7759 | 2009-03-72 | 2984 | DIBBS |
| KNH813J | 2009-01-23 | 100 | US |
| KNH813J | 2008-12-339 | 14 | US |
| 5325-01-075-7759 | 2008-11-315 | 20 | US |
| MS51831106 | 2008-09-255 | 50 | Canada |
| MS51831106 | 2008-07-195 | 1500 | US |
| MS51831106 | 2008-01-31 | 6 | US |
| MS51831106 | 2008-01-23 | 350 | US |
| KNH813J | 2007-11-310 | 8 | US |
| KNH813J | 2007-10-289 | 100 | Malaysia |
Cross Reference | NSN 5325-01-075-7759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1/2-13UNC-2AX1. 50 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7287418-6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 873547-00 | 32345 | DEFENSE REDUCTION AGENCY |
| KH9905-813 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNH813J | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KNH813J | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| MS51831-106 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-075-7759
Related Products | NSN 5325-01-075-7759
Technical Data | NSN 5325-01-075-7759
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5640 COMP 303 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582 COMP 303 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5640 COMP 303SE ASSN STD SINGLE MATERIAL RESPONSE OR AMS5738 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582 COMP 303SE ASSN STD SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BODY |
| STYLE DESIGNATOR | H26 KEYLOCK |
| LENGTH | 0.673 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| INTERNAL THREAD RELIEF DEPTH | 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| FULL INTERNAL THREAD LENGTH | 0.563 INCHES MINIMUM AND 0.613 INCHES MAXIMUM |
| INSERT SIZE | 0.6875-11 NS-2A |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.588 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51831-106 |
Restrictions/Controls & Freight Information | NSN 5325-01-075-7759
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
