NSN 5325-01-075-0382 80011S10D120, 80-011S10D120, 80-011-S10D12-0
Product Details | PANEL FASTENER INSERT
5325-01-075-0382 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: 80011S10D120, 80-011S10D120, 80-011-S10D12-0, 5325-01-075-0382, 01-075-0382, 5325010750382, 010750382
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 APR 1979 | 01-075-0382 | 37444 ( INSERT, PANEL FASTENER ) |

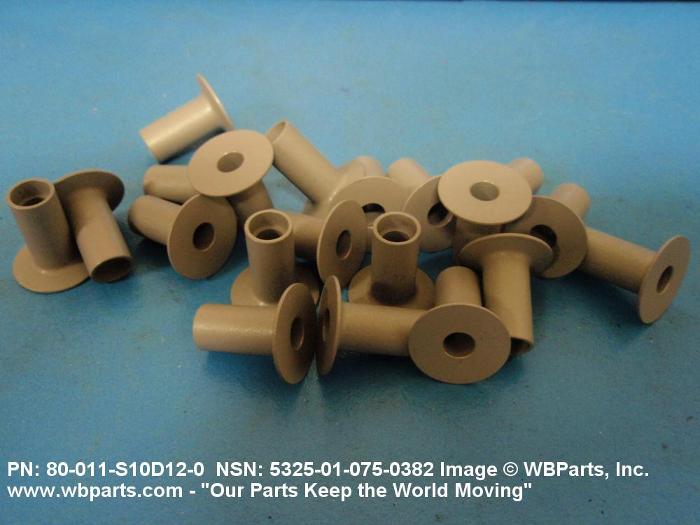

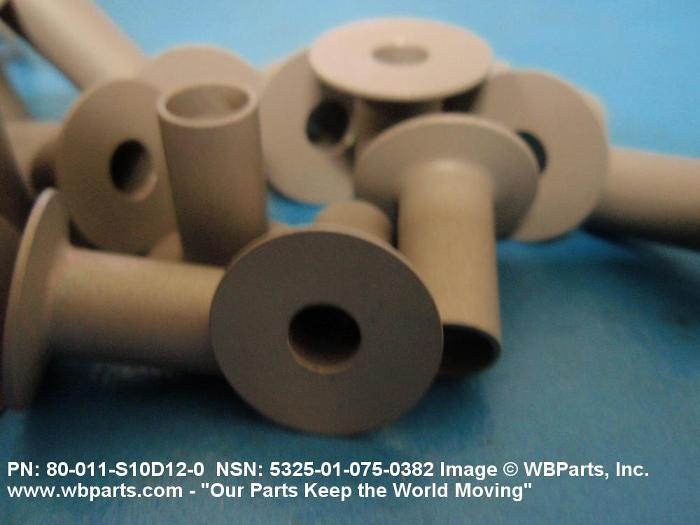

Drawings & Photos | NSN 5325-01-075-0382
Demand History | NSN 5325-01-075-0382
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-075-0382 | 2011-03-74 | 20 | Saudi Arabia |
| 5325-01-075-0382 | 2010-11-307 | 20 | Saudi Arabia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-075-0382
Technical Data | NSN 5325-01-075-0382
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| INSERT STYLE | 7 FLUSH FLANGE |
| FLANGE DIAMETER | 0.625 INCHES NOMINAL |
| FLANGE THICKNESS | 0.023 INCHES NOMINAL |
| BODY DIAMETER | 0.309 INCHES NOMINAL |
| HOLE TYPE | PLAIN |
| HOLE DIAMETER | 0.194 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-075-0382
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-01-075-0382
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
