NSN 5325-01-070-4478 MS51831203, MS51831-203, NAS1395C5

Product Details | SCREW THREAD INSERT

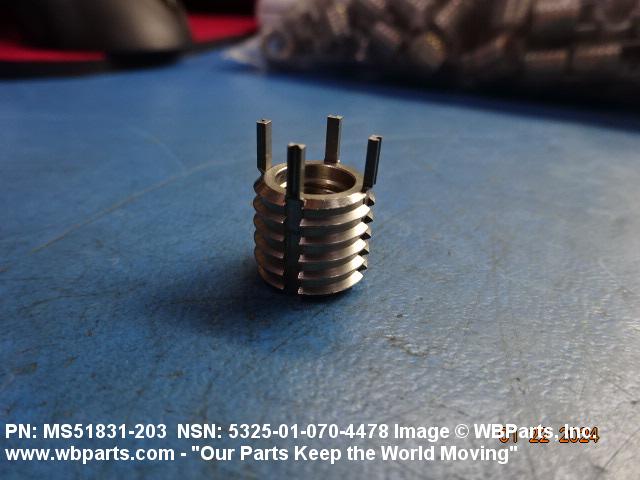

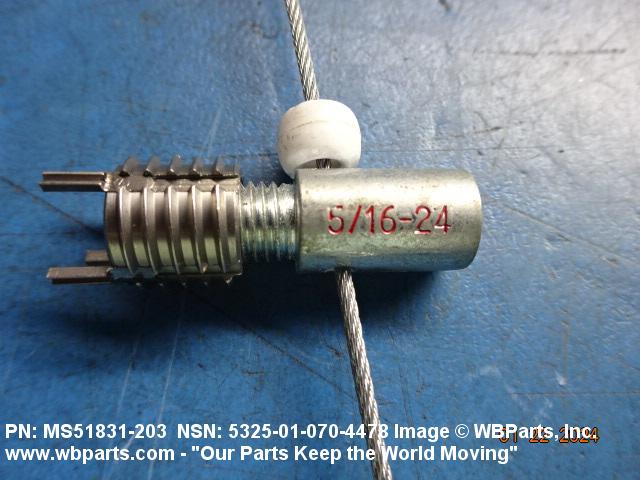

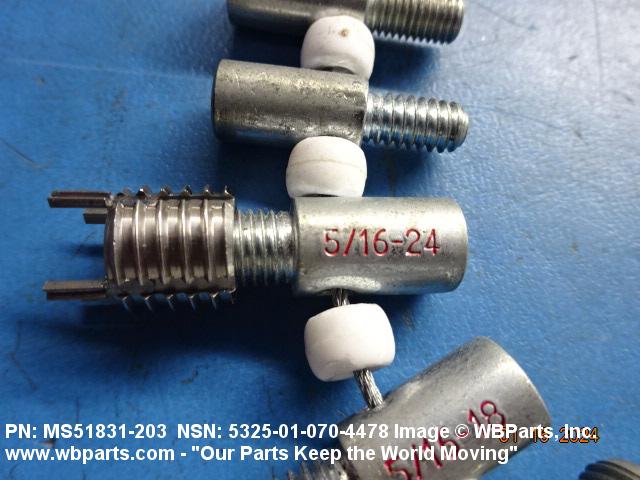

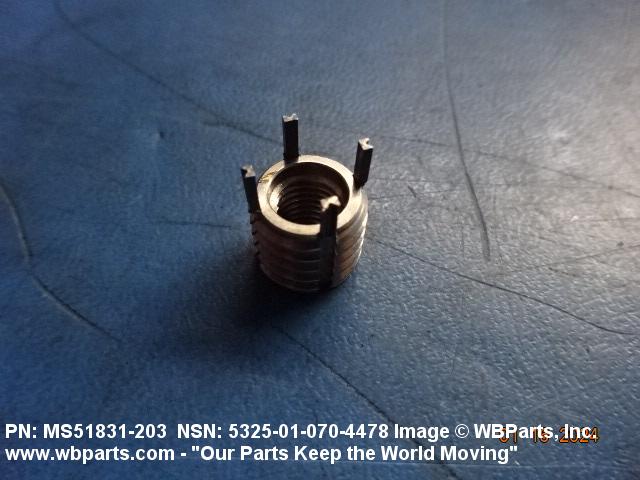

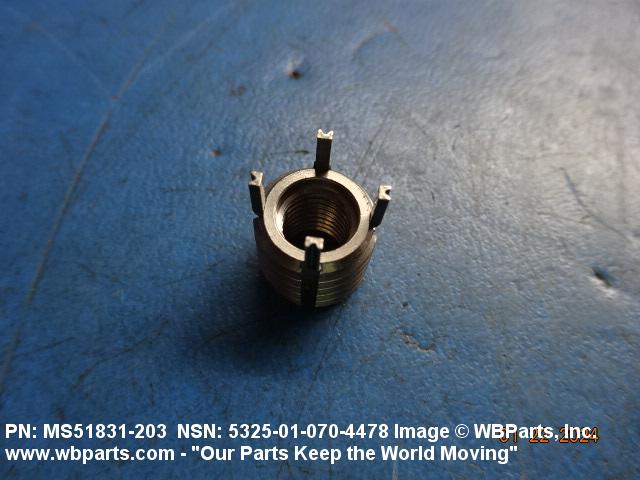

5325-01-070-4478 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51831203, MS51831-203, NAS1395C5, NAS51395C5, CL51624SKS, CL-51624-SKS, KH99055, KH9905-5, KH99055DL, KH9905-5DL, KNH524, KNH524DFL, KNH524J, 1660165PC8, 26103, 5325-01-070-4478, 01-070-4478, 5325010704478, 010704478

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 JAN 1979	01-070-4478	11444 ( INSERT, SCREW THREAD )

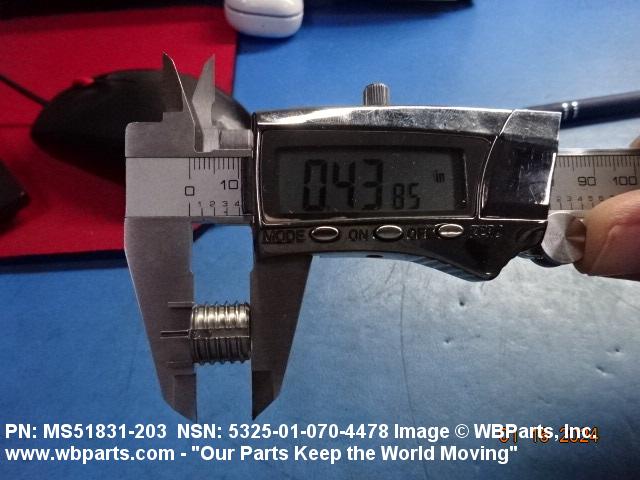

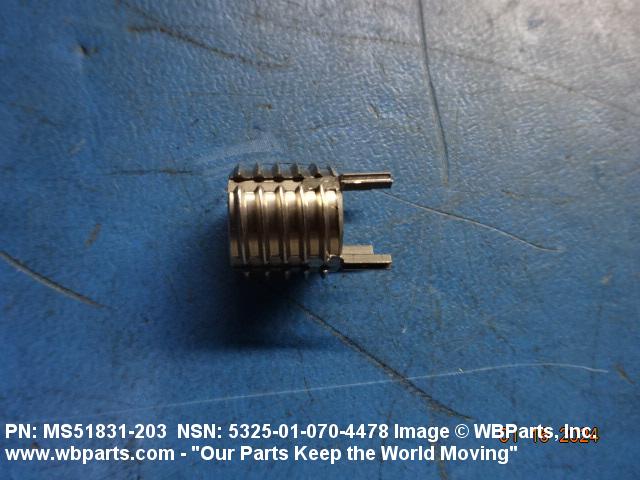

Drawings & Photos | NSN 5325-01-070-4478

Part Number	Request Date	QTY	Origin
5325-01-070-4478	2024-09-260	2	US
MS51831203	2024-08-232	20	United States
MS51831203	2023-12-346	400	United States
5325-01-070-4478	2023-09-249	7220	DIBBS
5325-01-070-4478	2023-08-218	5872	DIBBS
MS51831203	2023-07-205	200	United States
5325-01-070-4478	2021-12-355	7196	DIBBS
5325-01-070-4478	2021-12-353	4546	DIBBS
5325-01-070-4478	2021-08-237	6236	DIBBS
5325-01-070-4478	2021-07-209	6236	DIBBS
5325-01-070-4478	2021-06-154	7003	DIBBS
5325-01-070-4478	2021-05-129	7008	DIBBS
5325-01-070-4478	2020-12-348	881	DIBBS
MS51831203	2019-10-302	10	US
5325-01-070-4478	2018-01-16	1788	DIBBS
KNH524J	2016-04-92	3	US
KNH524J	2016-03-90	10	US
MS51831203	2015-06-152	100	PL
5325-01-070-4478	2014-10-280	12	Singapore
5325-01-070-4478	2012-09-261	65	DIBBS
5325-01-070-4478	2012-07-205	4	FR
5325-01-070-4478	2011-02-38	500	DIBBS
5325-01-070-4478	2011-01-18	224	DIBBS
5325-01-070-4478	2010-11-327	397	DIBBS
5325-01-070-4478	2010-09-270	190	DIBBS
5325-01-070-4478	2010-07-204	779	DIBBS
5325-01-070-4478	2010-04-100	40	DIBBS
MS51831203	2010-03-76	1000	us
5325-01-070-4478	2010-03-73	1800	Israel
5325-01-070-4478	2009-08-238	68	DIBBS
NAS1395C5	2009-03-69	300	US
KNH524J	2008-04-120	14	US
5325-01-070-4478	2008-04-106	10	US

Cross Reference | NSN 5325-01-070-4478

Part Number	Cage Code	Manufacturer
1660165PC8	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
26103	94882	JERGENS, INC. DBA TOOLING COMPONENTS DIVISION
CL-51624-SKS	99862	CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING
KH9905-5	15653	ALCOA GLOBAL FASTENERS, INC.
KH9905-5	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KH9905-5DL	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNH524	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNH524	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
KNH524	K1678	FAIRCHILD FASTENERS UK LTD
KNH524DFL	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNH524J	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MS51831-203	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1395C5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS51395C5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-070-4478

Compare

Related Products | NSN 5325-01-070-4478

5325-01-070-5260, 5325-01-070-5406, 5325-01-070-5864, 5325-01-070-6471, 5325-01-070-6527

Technical Data | NSN 5325-01-070-4478

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	H26 KEYLOCK

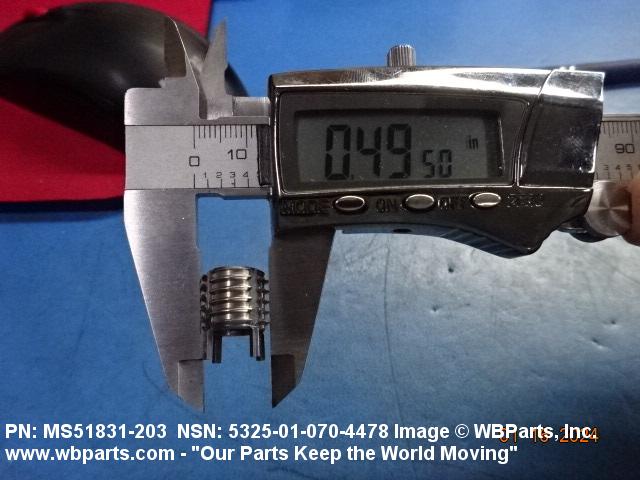

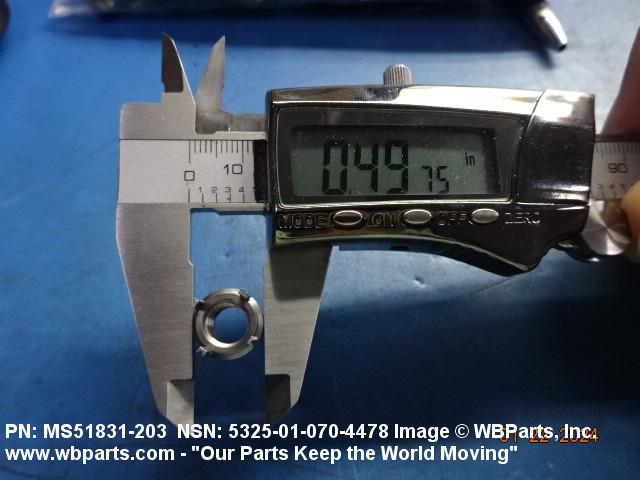

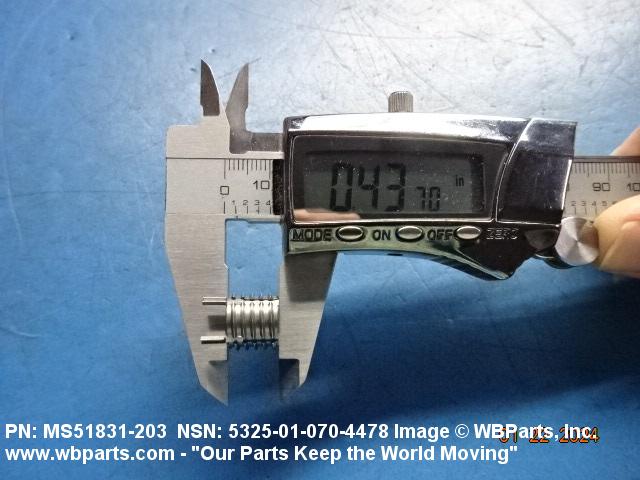

LENGTH	0.422 INCHES MINIMUM AND 0.452 INCHES MAXIMUM
INTERNAL THREAD RELIEF DEPTH	0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
FULL INTERNAL THREAD LENGTH	0.357 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
INSERT SIZE	0.500
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD QUANTITY PER INCH	24
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51831-203
