NSN 5325-01-066-2840 MS51831104, MS51831-104, CL3816SKS

Product Details | SCREW THREAD INSERT

5325-01-066-2840 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51831104, MS51831-104, CL3816SKS, CL-3816-SKS, KNH616, KNH626J, 47818, 5325-01-066-2840, 01-066-2840, 5325010662840, 010662840

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 OCT 1978	01-066-2840	11444 ( INSERT, SCREW THREAD )

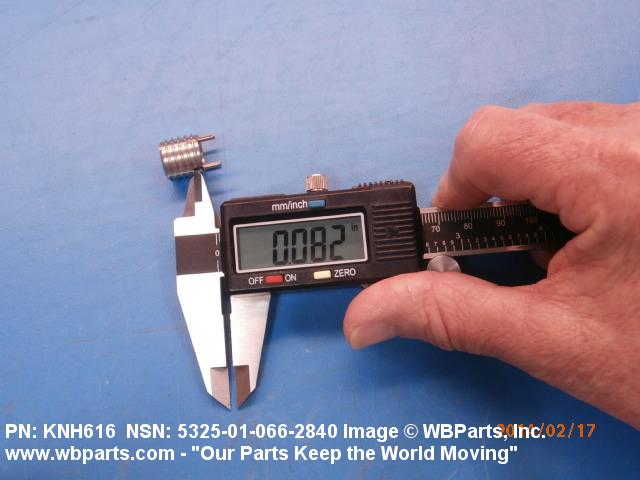

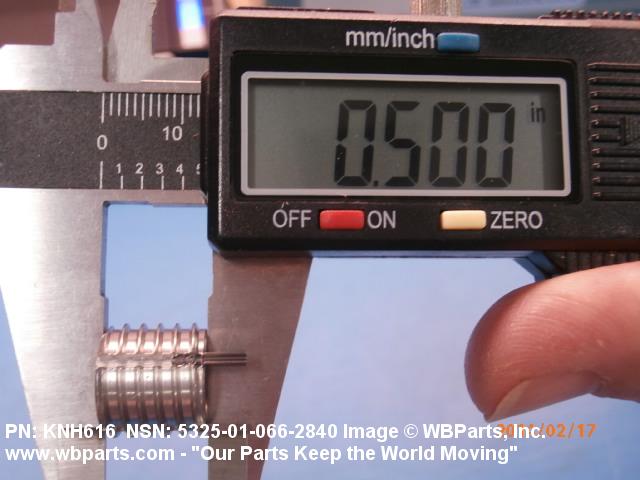

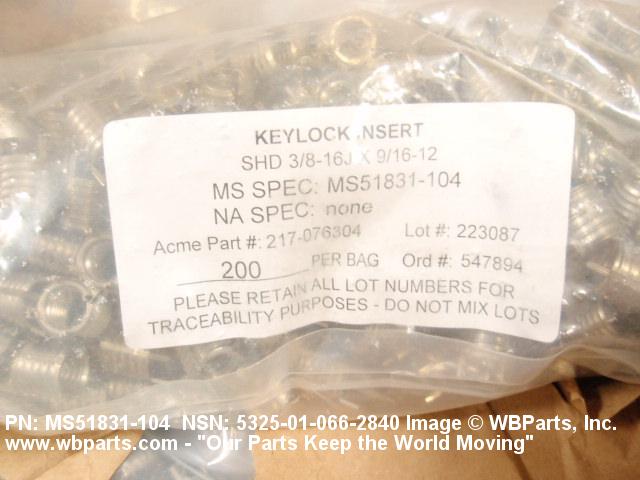

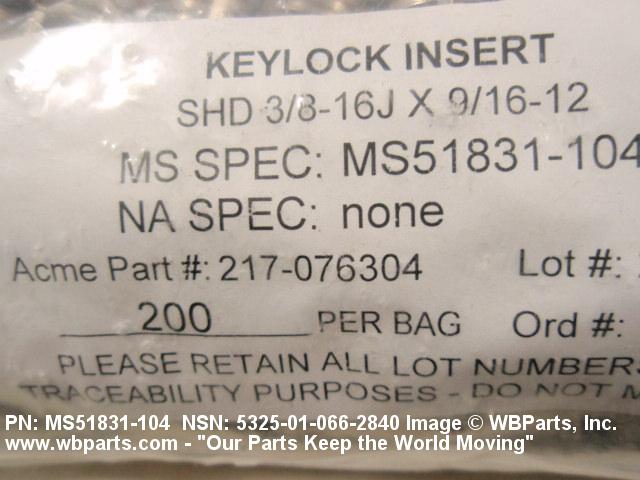

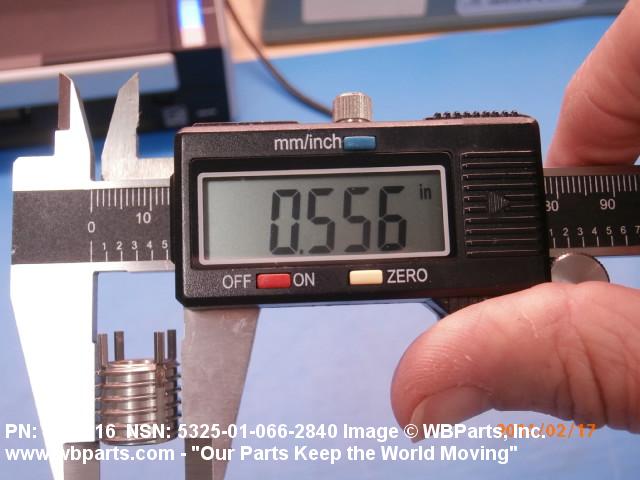

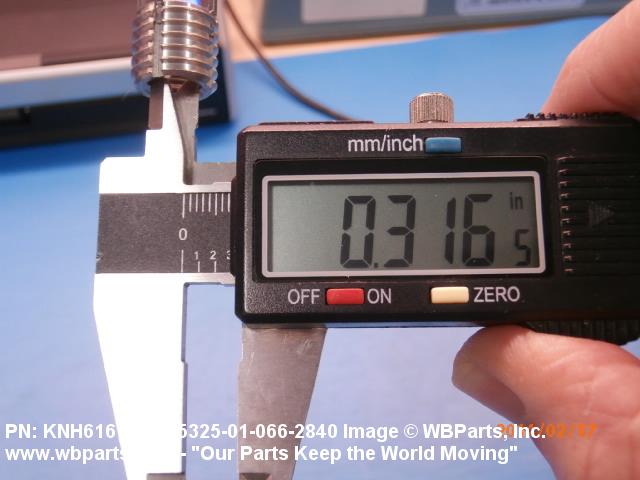

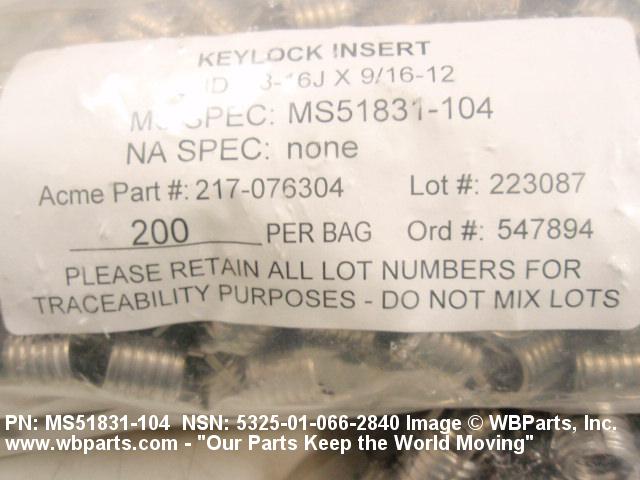

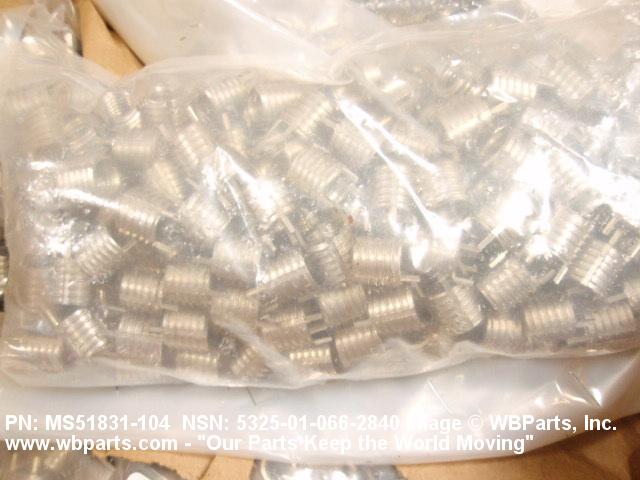

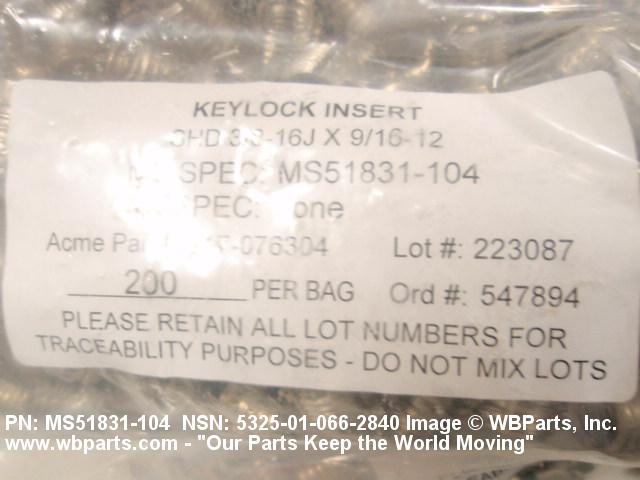

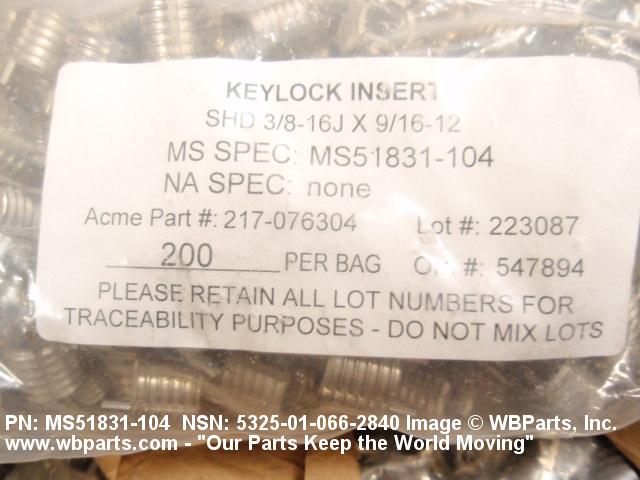

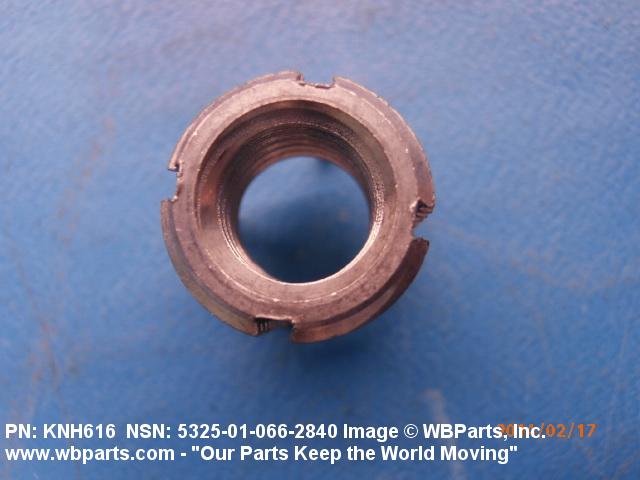

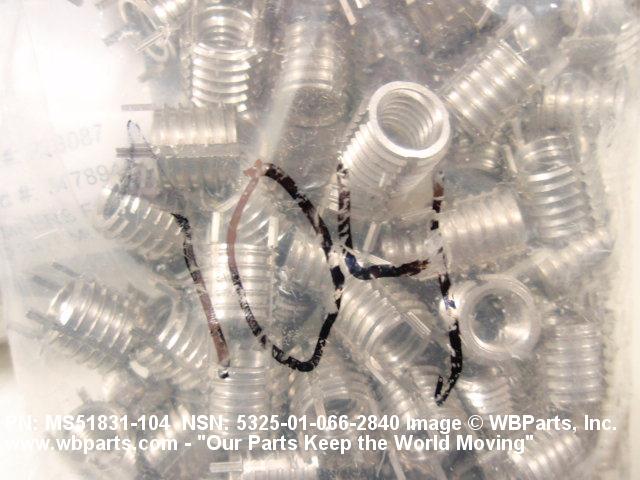

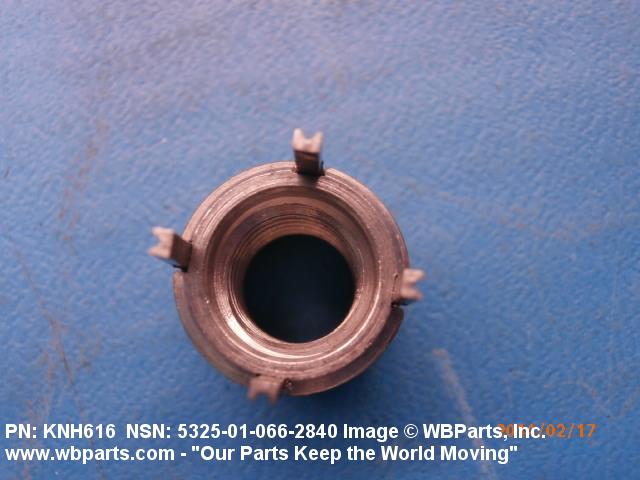

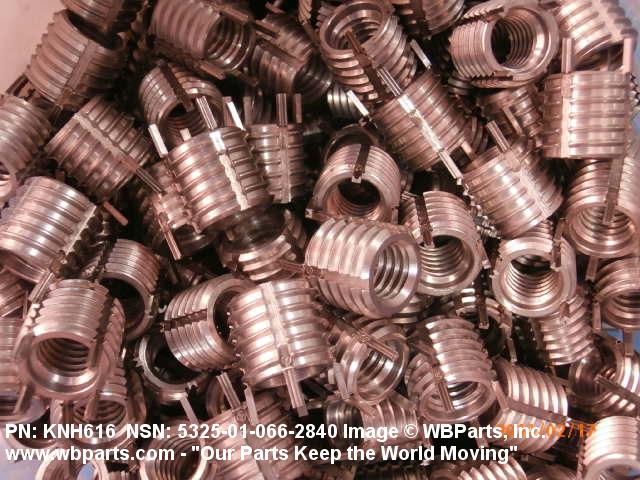

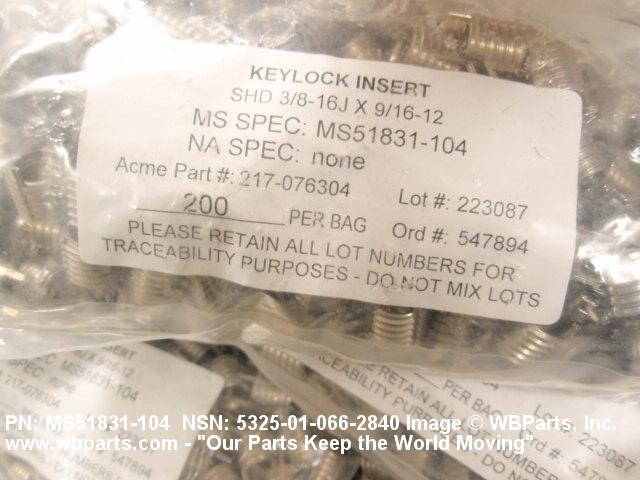

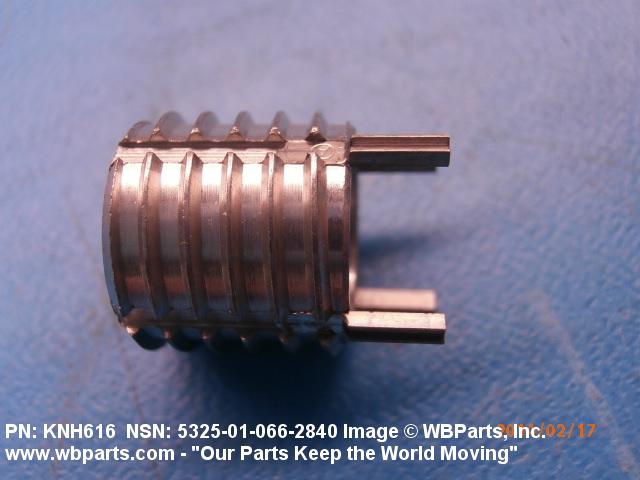

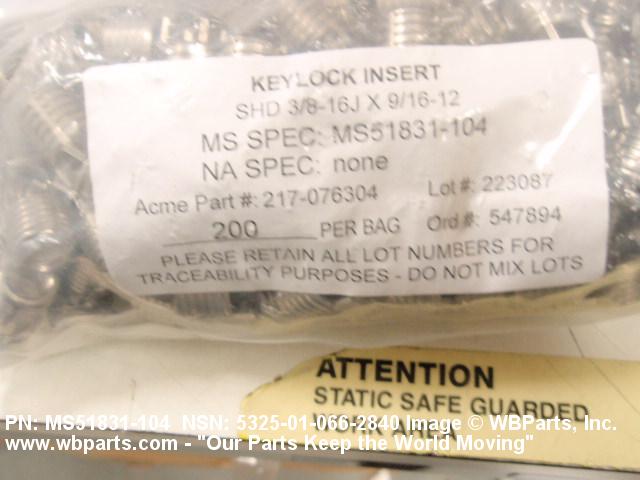

Drawings & Photos | NSN 5325-01-066-2840

Part Number	Request Date	QTY	Origin
MS51831104	2024-04-107	8	US
MS51831104	2022-09-248	50	India
MS51831104	2022-05-144	20	India
5325-01-066-2840	2021-04-116	50	US
5325-01-066-2840	2021-04-116	200	US
MS51831104	2021-02-41	1200	US
MS51831104	2021-01-28	290	US
MS51831104	2021-01-26	145	US
5325-01-066-2840	2019-08-214	662	MANUAL
5325-01-066-2840	2019-05-147	5000	DIBBS
5325-01-066-2840	2019-01-28	2222	DIBBS
MS51831104	2018-08-219	100	United States
MS51831104	2018-08-219	500	United States
MS51831104	2018-08-219	1000	United States
MS51831104	2018-05-130	2	United States
5325-01-066-2840	2018-01-19	2000	US
MS51831104	2017-02-51	86	United States
MS51831104	2017-01-09	6	United States
5325-01-066-2840	2016-09-271	50	United States
5325-01-066-2840	2016-09-271	100	United States
MS51831104	2016-08-222	25	United States
5325-01-066-2840	2016-07-211	15	United States
MS51831104	2016-04-118	205	US
MS51831104	2015-08-237	100	South Korea
5325-01-066-2840	2014-09-273	10000	IL
5325-01-066-2840	2014-05-142	20	Canada
5325-01-066-2840	2014-05-142	200	Canada
MS51831-104	2014-05-136	24	US
MS51831104	2014-05-126	15	US
5325-01-066-2840	2014-03-80	280	PR
MS51831-104	2014-03-71	4	United States
MS51831104	2014-02-36	750	Turkey
5325-01-066-2840	2014-01-28	750	Turkey
MS51831104	2013-12-344	10	US
MS51831104	2013-10-282	24	US
MS51831104	2013-08-241	24	United States
MS51831104	2013-08-238	18	United States
MS51831104	2013-05-136	4	United States
5325-01-066-2840	2012-10-304	16	CA
5325-01-066-2840	2012-10-300	2310	United States
KNH616	2012-04-114	13	US
5325-01-066-2840	2012-04-114	50	US
MS51831104	2012-01-27	8	United States
MS51831104	2011-11-325	10	United States
5325-01-066-2840	2011-11-307	34	United States
KNH616	2011-10-298	8	US
5325-01-066-2840	2011-10-292	8930	DIBBS
MS51831104	2011-09-249	17	US
MS51831104	2011-09-249	50	US
MS51831104	2011-08-220	12	United States
MS51831104	2011-06-171	12	United States
MS51831104	2011-06-171	16	United States
MS51831104	2011-06-171	24	United States
MS51831104	2011-06-171	80	United States
MS51831104	2011-05-122	24	US
MS51831104	2011-01-25	750	United States
5325-01-066-2840	2011-01-06	66	United States
MS51831104	2010-12-363	50	IL
MS51831104	2010-11-309	5	US
MS51831104	2010-11-307	14	United States
MS51831104	2010-10-300	1	US
MS51831104	2010-09-273	6500	US
5325-01-066-2840	2010-07-195	40	US
5325-01-066-2840	2010-07-187	2800	Israel
MS51831104	2010-06-175	200	US
MS51831104	2010-04-118	14000	US
MS51831104	2010-04-106	1650	United States
MS51831104	2010-03-76	800	us
MS51831104	2010-01-07	125	US
MS51831104	2009-12-364	32	US
MS51831104	2009-12-341	2104	United States
5325-01-066-2840	2009-12-336	8126	DIBBS
5325-01-066-2840	2009-11-320	200	US
MS51831104	2009-11-309	322	US
5325-01-066-2840	2009-10-275	68	US
MS51831104	2009-09-272	100	United States
5325-01-066-2840	2009-06-161	3054	DIBBS
MS51831104	2009-06-160	2	United States
MS51831104	2009-06-159	50	US
5325-01-066-2840	2009-06-155	45	US
5325-01-066-2840	2009-04-111	10	US
5325-01-066-2840	2009-03-84	125	US
MS51831104	2009-03-71	260	US
5325-01-066-2840	2009-03-70	6000	United States
5325-01-066-2840	2009-02-56	50	US
MS51831104	2009-02-42	472	US
5325-01-066-2840	2009-01-30	448	US
5325-01-066-2840	2008-10-275	10	United States
5325-01-066-2840	2008-07-202	100	Turkey
5325-01-066-2840	2008-06-168	9	United States
MS51831104	2008-05-150	400	US
MS51831104	2008-04-107	852	US
MS51831104	2008-03-86	100	United States
5325-01-066-2840	2008-03-84	195	US
5325-01-066-2840	2008-02-46	3080	DIBBS
5325-01-066-2840	2008-02-43	2500	US
5325-01-066-2840	2008-01-28	8700	us
5325-01-066-2840	2007-12-347	4	US

Cross Reference | NSN 5325-01-066-2840

Part Number	Cage Code	Manufacturer
47818	94882	JERGENS, INC. DBA TOOLING COMPONENTS DIVISION
CL-3816-SKS	99862	CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING
KNH616	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNH626J	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNH626J	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
MS51831-104	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-066-2840

Compare

Related Products | NSN 5325-01-066-2840

5325-01-066-3113, 5325-01-066-3505, 5325-01-066-3944, 5325-01-066-3945, 5325-01-066-4371

Technical Data | NSN 5325-01-066-2840

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	H26 KEYLOCK
LENGTH	0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM
INTERNAL THREAD RELIEF DEPTH	0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
FULL INTERNAL THREAD LENGTH	0.405 INCHES MINIMUM AND 0.455 INCHES MAXIMUM
INSERT SIZE	0.562-12 UNC 2A
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	3B
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51831-104

Restrictions/Controls & Freight Information | NSN 5325-01-066-2840

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-066-2840

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
