NSN 5325-01-063-6861 AS309403, AS3094-03, 10119205

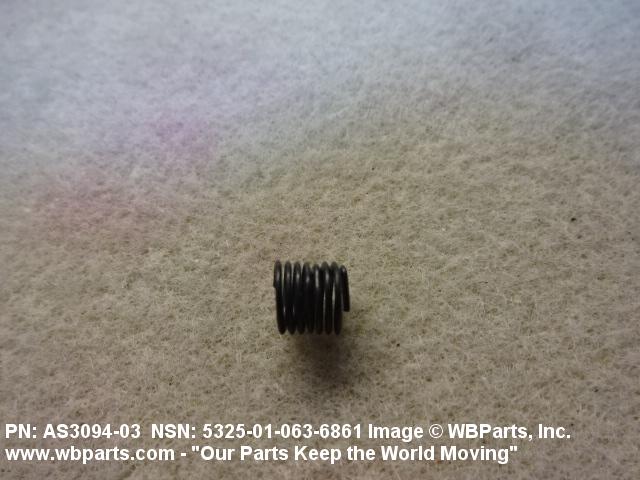

Product Details | SCREW THREAD INSERT
5325-01-063-6861 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: AS309403, AS3094-03, 10119205 , 5325-01-063-6861, 01-063-6861, 5325010636861, 010636861
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1978 | 01-063-6861 | 11444 ( INSERT, SCREW THREAD ) |
Drawings & Photos | NSN 5325-01-063-6861
Demand History | NSN 5325-01-063-6861
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-063-6861 | 2022-01-26 | 6 | United States |
| AS309403 | 2019-09-16 | 96 | United States |
| AS309403 | 2019-06-13 | 421 | United States |
| AS309403 | 2019-04-29 | 500 | United States |
| AS309403 | 2019-04-29 | 1000 | United States |
| AS309403 | 2019-01-10 | 24 | United States |
| 5325-01-063-6861 | 2018-01-04 | 100 | United States |
| 5325-01-063-6861 | 2018-01-04 | 33 | United States |
| AS309403 | 2013-12-12 | 150 | MX |
| 5325-01-063-6861 | 2013-07-11 | 100 | US |
| 5325-01-063-6861 | 2012-05-16 | 10 | US |
| AS309403 | 2012-05-16 | 10 | US |
| 5325-01-063-6861 | 2011-04-26 | 300 | US |
| 5325-01-063-6861 | 2008-12-31 | 1225 | DIBBS |
| 5325-01-063-6861 | 2008-12-10 | 818 | DIBBS |
| 5325-01-063-6861 | 2008-09-23 | 171 | DIBBS |
| 5325-01-063-6861 | 2008-07-28 | 217 | DIBBS |
| 5325-01-063-6861 | 2008-04-25 | 600 | DIBBS |
| 5325-01-063-6861 | 2008-04-23 | 254 | DIBBS |
| 5325-01-063-6861 | 2008-04-19 | 350 | DIBBS |
| 5325-01-063-6861 | 2008-04-14 | 300 | DIBBS |
| 5325-01-063-6861 | 2008-02-20 | 73 | DIBBS |
| 5325-01-063-6861 | 2008-01-16 | 73 | DIBBS |
| 5325-01-063-6861 | 2008-01-15 | 73 | DIBBS |
| AS309403 | 2007-02-12 | 2000 | US |
Cross Reference | NSN 5325-01-063-6861
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS3094-03 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-063-6861
Related Products | NSN 5325-01-063-6861
Technical Data | NSN 5325-01-063-6861
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | H1 COIL |
| LENGTH | 0.285 INCHES NOMINAL |
| INSERT SIZE | 0.236 IN. MIN,0.256 IN. MAX |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| MANUFACTURERS CODE | 81343 |
| MFR SOURCE CONTROLLING REFERENCE | AS3094-03 |
