Product Details | TURNLOCK FASTENER RECEPTACLE

5325-01-032-6572 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: 19606110, 1960-6-11-0, 3M3106110, 3M310-6-11-0, 5325-01-032-6572, 01-032-6572, 5325010326572, 010326572

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 18 DEC 1976 01-032-6572

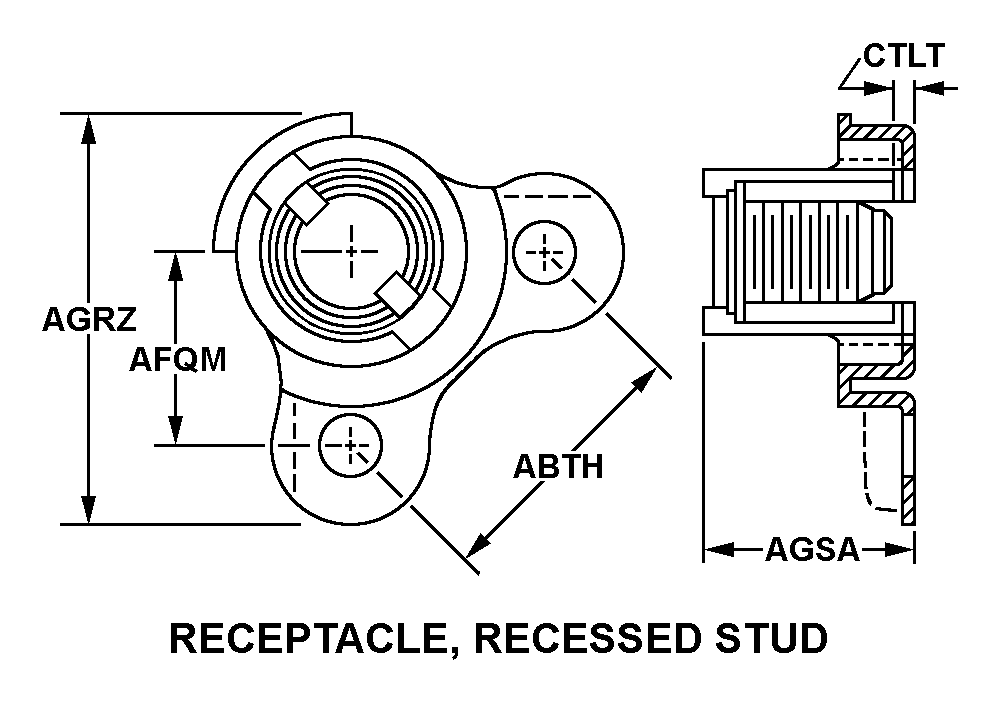

Drawings & Photos | NSN 5325-01-032-6572


Demand History | NSN 5325-01-032-6572

Part Number Request Date QTY Origin
5325-01-032-6572 2009-02-34 4 DIBBS

Cross Reference | NSN 5325-01-032-6572

Part Number Cage Code Manufacturer
1960-6-11-0 80539 SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
1960-6-11-0 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
3M310-6-11-0 76301 BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-032-6572

Technical Data | NSN 5325-01-032-6572

Characteristic Specifications
MATERIAL STEEL COMP 8740 BARREL STEEL COMP 1050 RETAINER STEEL COMP 8740 STUD
MATERIAL DOCUMENT AND CLASSIFICATION AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE BARREL SAE ASSN STD SINGLE MATERIAL RESPONSE RETAINER AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STUD
SURFACE TREATMENT CADMIUM AND CHROMATE BARREL CADMIUM AND CHROMATE RETAINER CADMIUM STUD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE BARREL QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE RETAINER QQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE STUD
TURNLOCK RECEPTACLE STYLE 52 RECEPTACLE, RECESSED STUD
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES 0.705 INCHES MINIMUM AND 0.709 INCHES MAXIMUM
DISTANCE BETWEEN MOUNTING HOLE CENTERS 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
RECEPTACLE OVERALL LENGTH 1.050 INCHES MAXIMUM
RECEPTACLE HEIGHT 0.834 INCHES MAXIMUM
STUD RECESS DEPTH 0.025 INCHES NOMINAL
RECEPTACLE THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.250-28 UNF
MOUNTING STYLE 2 PLAIN W/MOUNTING HOLE
TURNLOCK MOUNTING HOLE DIAMETER 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
FEATURES PROVIDED PROTECTIVE CAP
