NSN 5325-01-026-3818 2510114, 34R0121BA, 34R01-2-1BA

Product Details | TURNLOCK FASTENER RECEPTACLE

5325-01-026-3818 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: 2510114, 34R0121BA, 34R01-2-1BA, 5325-01-026-3818, 01-026-3818, 5325010263818, 010263818

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 AUG 1976	01-026-3818	18485 ( RECEPTACLE, TURNLOCK FASTENER )

Drawings & Photos | NSN 5325-01-026-3818

Part Number	Request Date	QTY	Origin
5325-01-026-3818	2019-10-298	578	US
34R01-2-1BA	2019-10-276	263	DIBBS
34R01-2-1BA	2019-09-268	263	DIBBS
34R01-2-1BA	2019-09-261	263	DIBBS
34R01-2-1BA	2019-08-234	263	DIBBS
34R01-2-1BA	2019-08-226	263	DIBBS
34R01-2-1BA	2019-08-217	263	DIBBS
34R01-2-1BA	2019-07-209	263	DIBBS
34R01-2-1BA	2019-07-182	263	DIBBS
34R01-2-1BA	2019-06-174	263	DIBBS
34R01-2-1BA	2019-01-07	1580	DIBBS
5325-01-026-3818	2018-11-332	615	DIBBS
5325-01-026-3818	2018-10-302	160	DIBBS
5325-01-026-3818	2018-10-294	160	DIBBS
5325-01-026-3818	2018-08-220	45	US
5325-01-026-3818	2018-07-199	615	DIBBS
5325-01-026-3818	2018-07-191	615	DIBBS
5325-01-026-3818	2018-07-190	187	DIBBS
5325-01-026-3818	2018-07-182	187	DIBBS
5325-01-026-3818	2017-11-318	615	DIBBS
5325-01-026-3818	2017-09-249	497	DIBBS
5325-01-026-3818	2017-04-97	497	DIBBS
5325-01-026-3818	2017-03-89	497	DIBBS
5325-01-026-3818	2017-02-54	457	DIBBS
5325-01-026-3818	2014-11-306	486	DIBBS
34R0121BA	2013-10-288	2000	US
5325-01-026-3818	2013-10-283	50	US
5325-01-026-3818	2011-08-220	48	US
34R0121BA	2010-06-180	1600	US
5325-01-026-3818	2010-02-49	500	Italy
5325-01-026-3818	2008-09-274	2208	US
34R0121BA	2007-09-265	500	US

Cross Reference | NSN 5325-01-026-3818

Part Number	Cage Code	Manufacturer
2510114	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
34R01-2-1BA	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-026-3818

Compare

Related Products | NSN 5325-01-026-3818

5325-01-026-4099, 5325-01-026-4242, 5325-01-026-4430, 5325-01-026-5265, 5325-01-026-6698

Technical Data | NSN 5325-01-026-3818

Characteristic	Specifications
MATERIAL	STEEL EYELET STEEL LOCKSPRING STEEL RECEPTACLE
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-698 MIL SPEC 3RD MATERIAL RESPONSE EYELET QQ-S-777 MIL SPEC 1ST MATERIAL RESPONSE LOCKSPRING MIL-S-16974,AISI 1060 FED SPEC 2ND MATERIAL RESPONSE RECEPTACLE
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

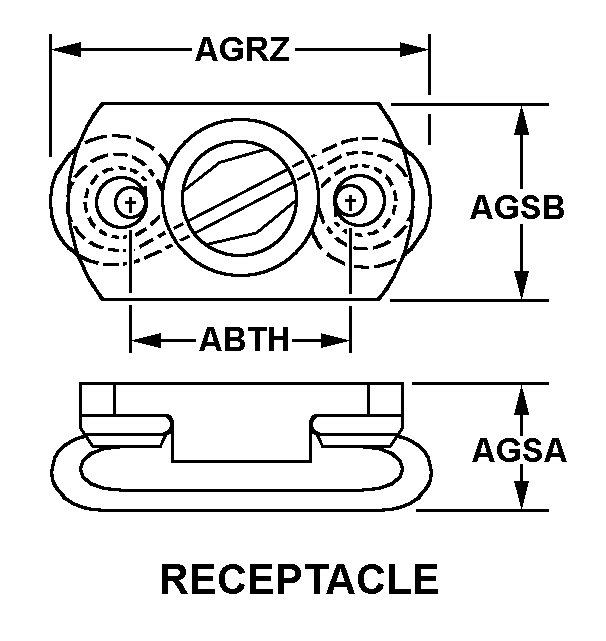

TURNLOCK RECEPTACLE STYLE	50 RECEPTACLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES	1.616 INCHES MINIMUM AND 1.624 INCHES MAXIMUM
RECEPTACLE OVERALL LENGTH	2.230 INCHES NOMINAL
RECEPTACLE HEIGHT	0.810 INCHES NOMINAL
RECEPTACLE WIDTH	1.230 INCHES NOMINAL

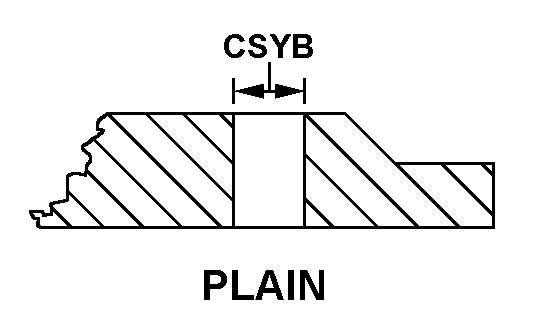

MOUNTING STYLE	12 PLAIN
