NSN 5325-01-026-0238 MS21209F420P, MS21209F4-20P , 35914CNY0500
Product Details | SCREW THREAD INSERT
5325-01-026-0238 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS21209F420P, MS21209F4-20P , 35914CNY0500, 3591-4CNY0500, 35914CNY500, 3591-4CNY500, 5325-01-026-0238, 01-026-0238, 5325010260238, 010260238
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 AUG 1976 | 01-026-0238 | 11444 ( INSERT, SCREW THREAD ) |

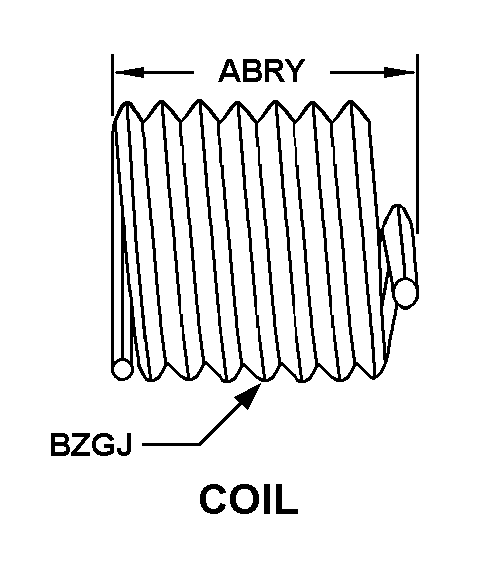

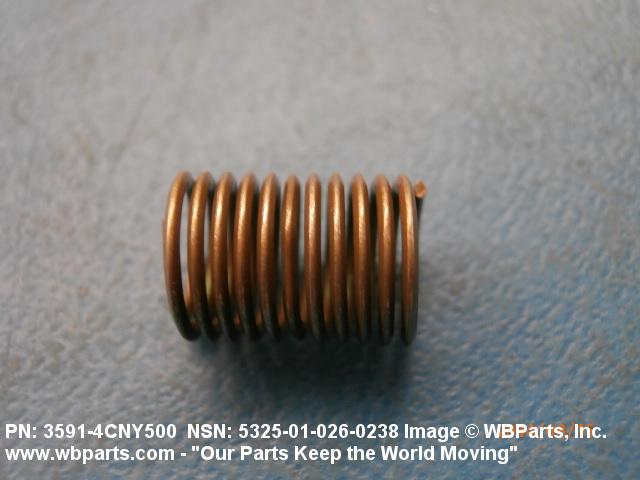

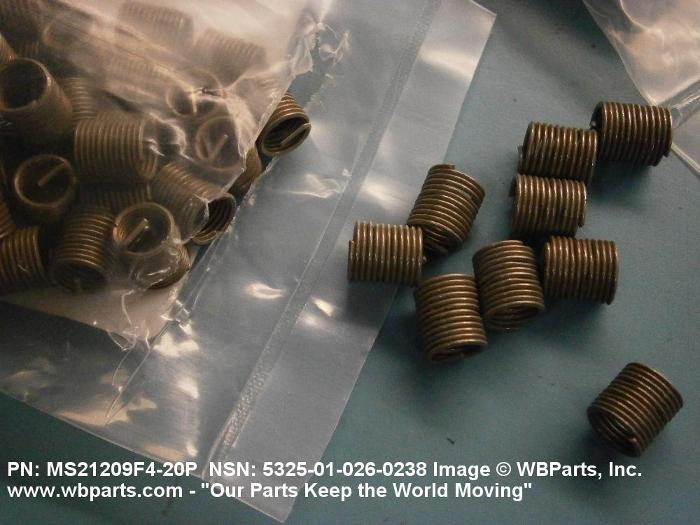

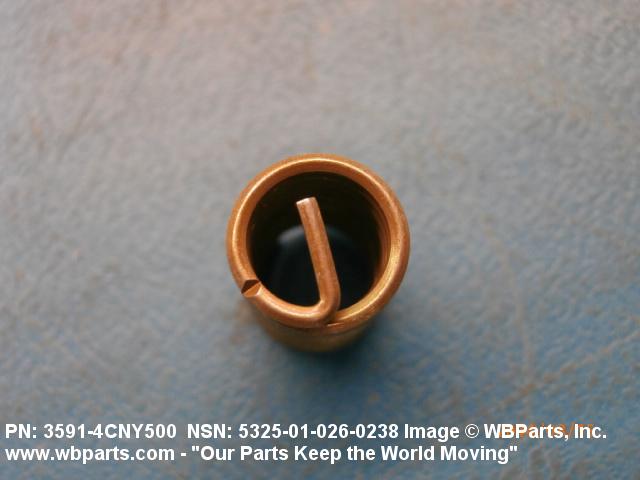

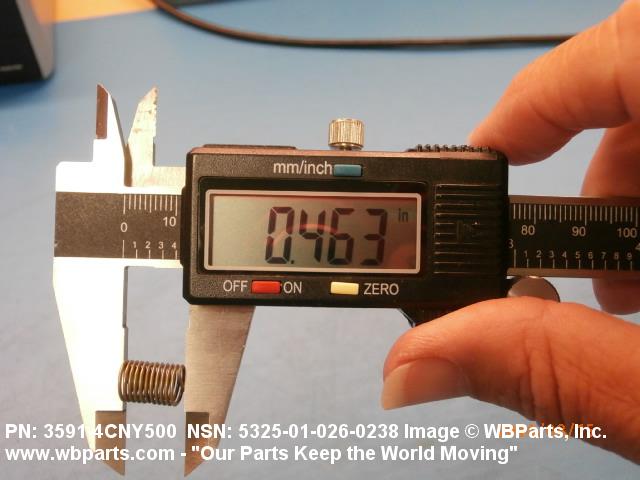

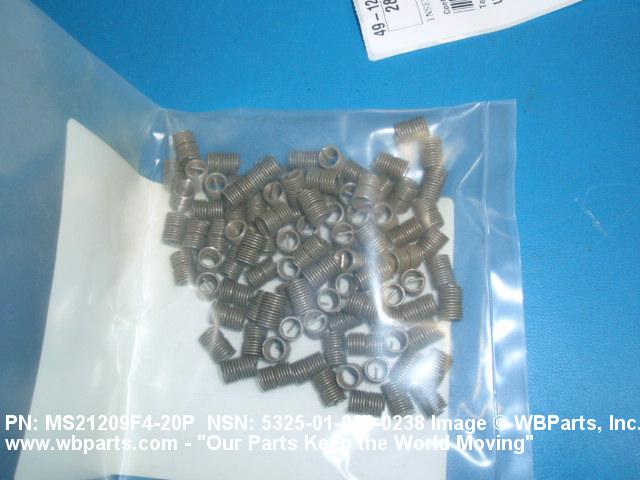

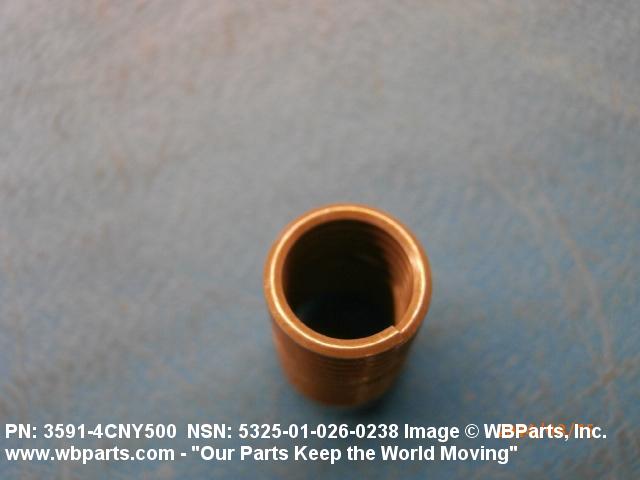

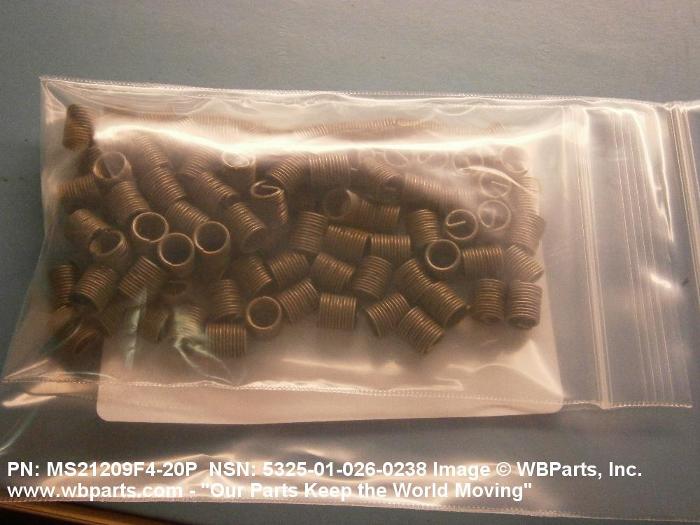

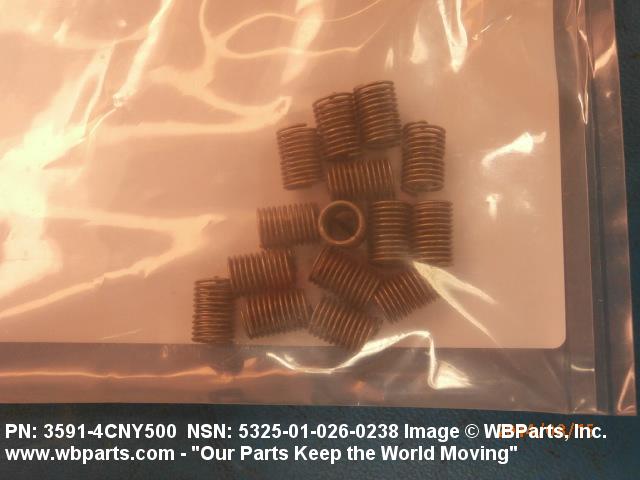

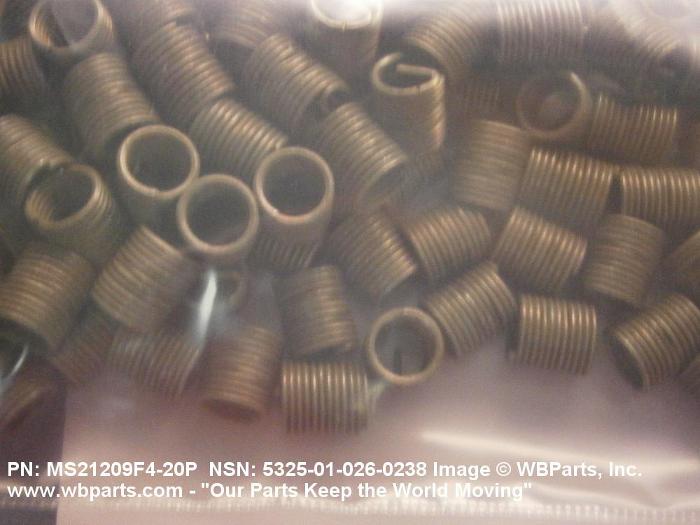

Drawings & Photos | NSN 5325-01-026-0238
Demand History | NSN 5325-01-026-0238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-026-0238 | 2021-09-258 | 18 | United States |
| 5325-01-026-0238 | 2019-02-42 | 931 | DIBBS |
| MS21209F420P | 2018-08-220 | 11 | ZA |
| 35914CNY500 | 2014-07-210 | 15 | United States |
| 5325-01-026-0238 | 2013-04-116 | 1332 | DIBBS |
| 5325-01-026-0238 | 2012-05-129 | 500 | United States |
| MS21209F420P | 2011-11-315 | 40 | US |
| MS21209F420P | 2010-07-193 | 1 | United Kingdom |
| MS21209F420P | 2009-09-253 | 5 | United States |
| 5325-01-026-0238 | 2009-06-175 | 500 | DIBBS |
Cross Reference | NSN 5325-01-026-0238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3591-4CNY0500 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 3591-4CNY500 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| MS21209F4-20P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21209F4-20P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-026-0238
Related Products | NSN 5325-01-026-0238
Technical Data | NSN 5325-01-026-0238
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H1 COIL |

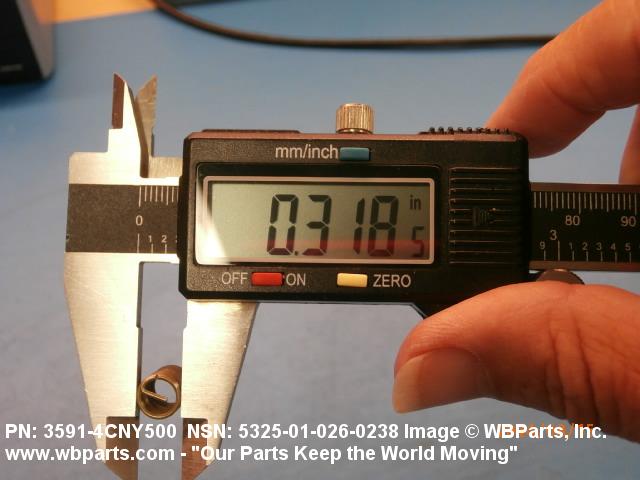

| LENGTH | 0.500 INCHES NOMINAL |

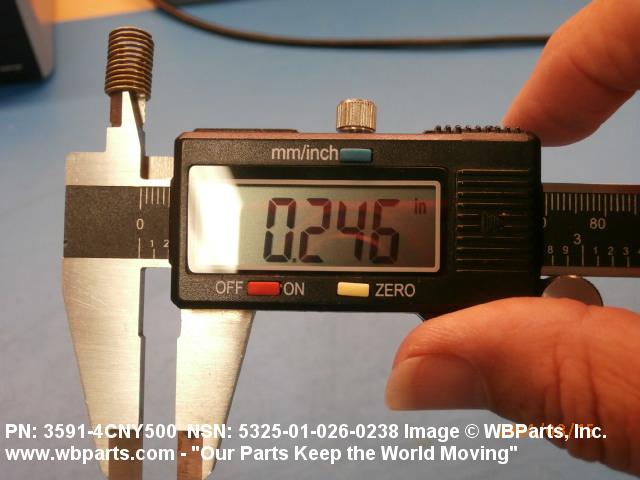

| INSERT SIZE | 0.306 IN. MIN,0.326 IN. MAX FREE OD |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| SPECIAL FEATURES | CADMIUM PLATE 0.0001 IN. THK MAX |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21209F4-20P |
