NSN 5325-01-014-5199 URFA3-NO SPACERS, URFA3NOSPACERS, 2135203G003
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-014-5199 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: URFA3-NO SPACERS, URFA3NOSPACERS, 2135203G003, 5325-01-014-5199, 01-014-5199, 5325010145199, 010145199
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 DEC 1975 | 01-014-5199 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-014-5199
Demand History | NSN 5325-01-014-5199
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-014-5199 | 2014-08-237 | 44 | DIBBS |
| 5325-01-014-5199 | 2014-04-103 | 44 | DIBBS |
| 5325-01-014-5199 | 2013-09-268 | 62 | DIBBS |
| 5325-01-014-5199 | 2013-07-190 | 15 | DIBBS |
| 5325-01-014-5199 | 2013-04-93 | 62 | DIBBS |
| 5325-01-014-5199 | 2012-10-290 | 15 | DIBBS |
| 5325-01-014-5199 | 2010-12-349 | 15 | DIBBS |
| 5325-01-014-5199 | 2010-08-217 | 15 | DIBBS |
| 5325-01-014-5199 | 2010-01-28 | 15 | DIBBS |
| 5325-01-014-5199 | 2009-11-324 | 15 | DIBBS |
| 5325-01-014-5199 | 2008-10-291 | 15 | DIBBS |
| 5325-01-014-5199 | 2008-06-155 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-014-5199
Related Products | NSN 5325-01-014-5199
Technical Data | NSN 5325-01-014-5199
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL LOCKSPRING ALUMINUM ALLOY RECEPTACLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE LOCKSPRING |
| SURFACE TREATMENT | CADMIUM LOCKSPRING ANODIZE RECEPTACLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 1 CL 2 FED SPEC SINGLE TREATMENT RESPONSE LOCKSPRING |

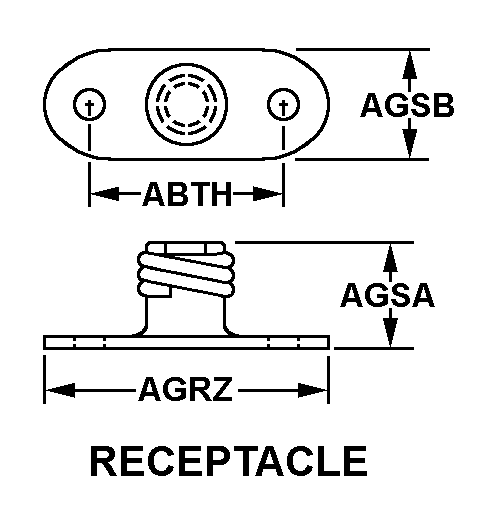

| TURNLOCK RECEPTACLE STYLE | 40 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.625 INCHES NOMINAL |
| RECEPTACLE OVERALL LENGTH | 0.937 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.343 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.375 INCHES NOMINAL |

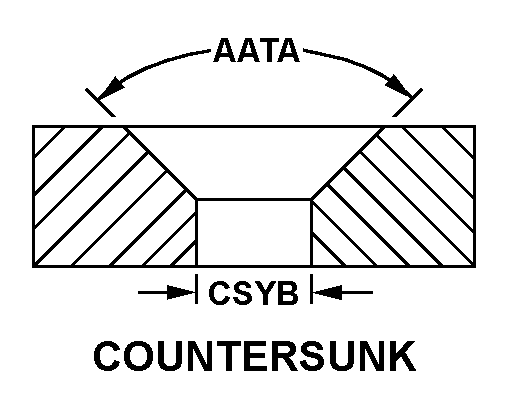

| MOUNTING STYLE | 13 COUNTERSUNK |
