NSN 5325-01-014-1331 NSA555101, NSA5551-01, STBF34K3
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-014-1331 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: NSA555101, NSA5551-01, STBF34K3, CA18157, Z00.N7736235101, Z00N7736235101, 1550007001, 1550007-001, 5325-01-014-1331, 01-014-1331, 5325010141331, 010141331
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 15 DEC 1975 | 01-014-1331 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |
Demand History | NSN 5325-01-014-1331
Part Number | Request Date | QTY | Origin |
---|---|---|---|
CA18157 | 2024-02-46 | 180 | DIBBS |
STBF34K3 | 2024-02-46 | 180 | DIBBS |
CA18157 | 2023-05-146 | 500 | United Kingdom |
CA18157 | 2022-08-243 | 500 | United States |
CA18157 | 2022-08-227 | 3300 | United States |
CA18157 | 2022-05-132 | 3400 | United States |
CA18157 | 2022-03-68 | 50000 | United States |
CA18157 | 2022-02-53 | 8000 | United States |
CA18157 | 2022-01-04 | 10500 | United States |
CA18157 | 2021-05-131 | 9000 | United States |
CA18157 | 2021-03-90 | 480 | United States |
STBF34K3 | 2021-01-13 | 325 | United States |
STBF34K3 | 2021-01-12 | 375 | United States |
5325-01-014-1331 | 2018-08-231 | 1232 | DIBBS |
5325-01-014-1331 | 2018-08-230 | 1232 | DIBBS |
5325-01-014-1331 | 2018-05-144 | 1 | DIBBS-RFPs |
5325-01-014-1331 | 2018-05-127 | 3120 | DIBBS |
5325-01-014-1331 | 2017-08-243 | 1416 | DIBBS |
5325-01-014-1331 | 2017-01-19 | 1223 | DIBBS |
5325-01-014-1331 | 2012-08-230 | 20 | US |
CA18157 | 2012-02-44 | 110 | NG |
5325-01-014-1331 | 2011-07-198 | 500 | CN |
5325-01-014-1331 | 2011-05-137 | 450 | IL |
5325-01-014-1331 | 2010-06-165 | 1200 | DIBBS |
5325-01-014-1331 | 2010-05-125 | 1279 | DIBBS |
5325-01-014-1331 | 2010-04-105 | 1279 | DIBBS |
STBF34K3 | 2009-10-301 | 15 | US |
CA18157 | 2009-10-301 | 15 | US |
STBF34K3 | 2009-10-301 | 15 | US |
CA18157 | 2009-08-239 | 50 | US |
5325-01-014-1331 | 2009-06-176 | 25 | US |
5325-01-014-1331 | 2009-06-153 | 5040 | Brazil |
5325-01-014-1331 | 2009-01-06 | 653 | DIBBS |
5325-01-014-1331 | 2008-12-338 | 361 | DIBBS |
5325-01-014-1331 | 2008-11-317 | 339 | DIBBS |
5325-01-014-1331 | 2008-08-232 | 369 | DIBBS |
5325-01-014-1331 | 2008-07-189 | 463 | DIBBS |
5325-01-014-1331 | 2008-06-161 | 430 | DIBBS |
5325-01-014-1331 | 2008-06-155 | 10 | US |
NSA555101 | 2008-03-63 | 4 | Italy |
5325-01-014-1331 | 2008-02-36 | 308 | DIBBS |
STBF34K3 | 2006-11-319 | 25 | US |
Cross Reference | NSN 5325-01-014-1331
Part Number | Cage Code | Manufacturer |
---|---|---|
1550007-001 | 47916 | HARRIS-MAGNAVOX SYSTEMS CO A JOINT VENTURE |
CA18157 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
CA18157 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
CA18157 | F0224 | ALCOA FIXATIONS SIMMONDS SAS |
CA18157 | F8995 | FAIRCHILD FASTENERS FRANCE SARL |
CA18157 | K0F27 | FIELD AND TREK UK LTD |
NSA5551-01 | F5442 | AIRBUS GROUP |
STBF34K3 | 81205 | THE BOEING COMPANY DBA BOEING |
Z00.N7736235101 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-014-1331
Related Products | NSN 5325-01-014-1331
Technical Data | NSN 5325-01-014-1331
Characteristic | Specifications |
---|---|
MATERIAL | ALUMINUM ALLOY 7075 RECEPTACLE STEEL COMP 8740 STUD |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE RECEPTACLE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STUD |
SURFACE TREATMENT | OXIDE FILM RECEPTACLE CADMIUM AND CHROMATE STUD |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-8625 TY 2 MIL SPEC SINGLE TREATMENT RESPONSE RECEPTACLE QQ-P-416 TY 2 FED SPEC SINGLE TREATMENT RESPONSE STUD |
TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.685 INCHES MINIMUM AND 0.689 INCHES MAXIMUM |
RECEPTACLE OVERALL LENGTH | 0.927 INCHES NOMINAL |
RECEPTACLE HEIGHT | 0.568 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
RECEPTACLE WIDTH | 0.531 INCHES NOMINAL |

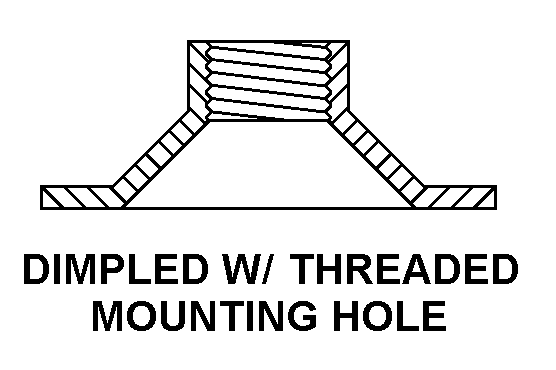

MOUNTING STYLE | 4 DIMPLED W/THREADED MOUNTING HOLE |
TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
SPECIAL FEATURES | CAGE STEEL AMS 5528 17-PH |
MANUFACTURERS CODE | 81205 |
DESIGN CONTROL REFERENCE | STBF34K3 |
Restrictions/Controls & Freight Information | NSN 5325-01-014-1331
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
