Product Details | RETAINING RING
5325-01-014-1110 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 589853, 5325-01-014-1110, 01-014-1110, 1120005801001, 5325010141110, 010141110
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 15 DEC 1975 | 01-014-1110 | 07623 ( RING, RETAINING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-014-1110
Related Products | NSN 5325-01-014-1110
Technical Data | NSN 5325-01-014-1110
Characteristic | Specifications |
---|---|
MATERIAL | STEEL SAE 1065 THRU 1090 |
SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 OR ZINC, QQ-Z-325, TYPE 2, CLASS 3 |
STRENGTH RATING | NOT RATED |
MATERIAL HARDNESS RATING | 51.5 ROCKWELL C NOMINAL |
CASEHARDENING INDICATOR | NOT CASEHARDENED |

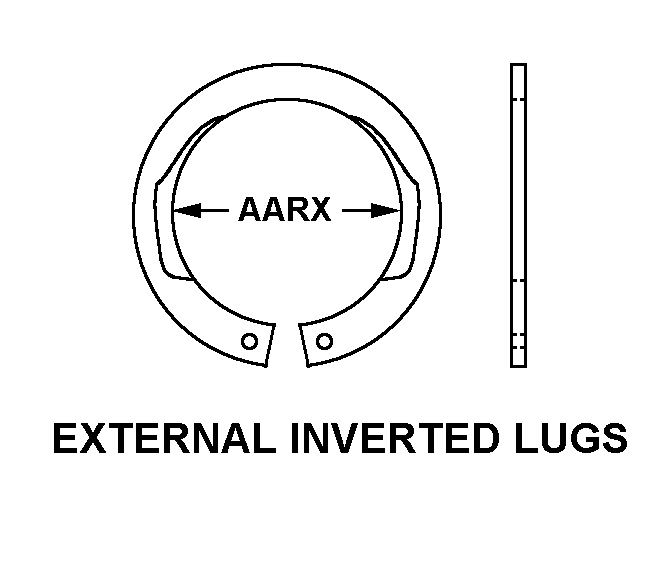

RING STYLE | A46 EXTERNAL INVERTED LUGS |
INSIDE DIAMETER | 2.056 INCHES MINIMUM AND 2.096 INCHES MAXIMUM |
CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
MAJOR THICKNESS | 0.075 INCHES MINIMUM AND 0.081 INCHES MAXIMUM |
USAGE DESIGN | EXTERNAL |
