NSN 5325-01-005-4614 80007163, 01-005-4614, 80-007-16-3
Product Details | PANEL FASTENER INSERT
5325-01-005-4614 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: 80007163, 5325-01-005-4614, 01-005-4614, 80-007-16-3, 5325010054614, 010054614
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1975 | 01-005-4614 | 37444 ( INSERT, PANEL FASTENER ) |
Drawings & Photos | NSN 5325-01-005-4614
Demand History | NSN 5325-01-005-4614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-005-4614 | 2013-08-223 | 447 | DIBBS |
| 5325-01-005-4614 | 2012-09-265 | 250 | DIBBS |
| 5325-01-005-4614 | 2012-09-250 | 250 | DIBBS |
| 5325-01-005-4614 | 2012-07-187 | 141 | DIBBS |
| 5325-01-005-4614 | 2012-05-143 | 43 | DIBBS |
| 80007163 | 2009-09-266 | 10 | Colombia |
Cross Reference | NSN 5325-01-005-4614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80-007-16-3 | 56958 | YOUNG ENGINEERS INC. THE |
| 80-007-16-3 | 58794 | FASTENER TECHNOLOGY CORP. |
| 80-007-16-3 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| 80-007-16-3 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 80-007-16-3 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| 80-007-16-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-005-4614
Related Products | NSN 5325-01-005-4614
Technical Data | NSN 5325-01-005-4614
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

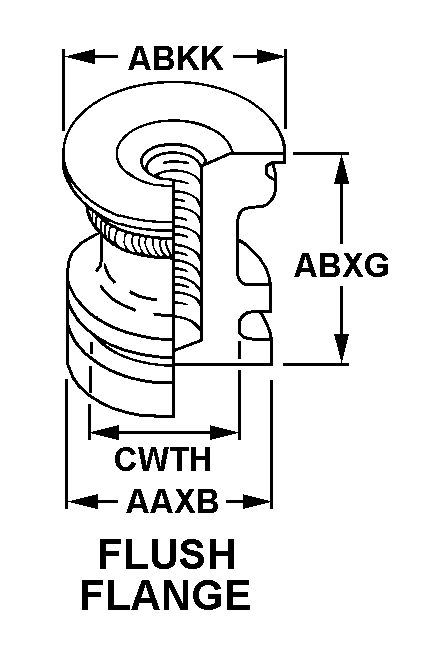

| INSERT STYLE | 17 FLUSH FLANGE |
| SHOULDER DIAMETER | 0.368 INCHES MINIMUM AND 0.378 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.687 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| BODY DIAMETER | 0.350 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-12 UNJF |
| FEATURES PROVIDED | ALL METAL LOCKING ELEMENT |
Restrictions/Controls & Freight Information | NSN 5325-01-005-4614
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-005-4614
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
