NSN 5325-00-990-9916 M4593217L, M45932-1-7L, SR162L
Product Details | SCREW THREAD INSERT
5325-00-990-9916 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: M4593217L, M45932-1-7L, SR162L, K800208, K8002-08, 10018772005, 10018772-005, 10173122 , 715658-260, 77923033, 7792303-3, 8832848, 88401559, 8840155-9, 91115402, 911154-02, 5325-00-990-9916, 00-990-9916, 5325009909916, 009909916, 715658260
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-990-9916 | 11444 ( INSERT, SCREW THREAD ) |

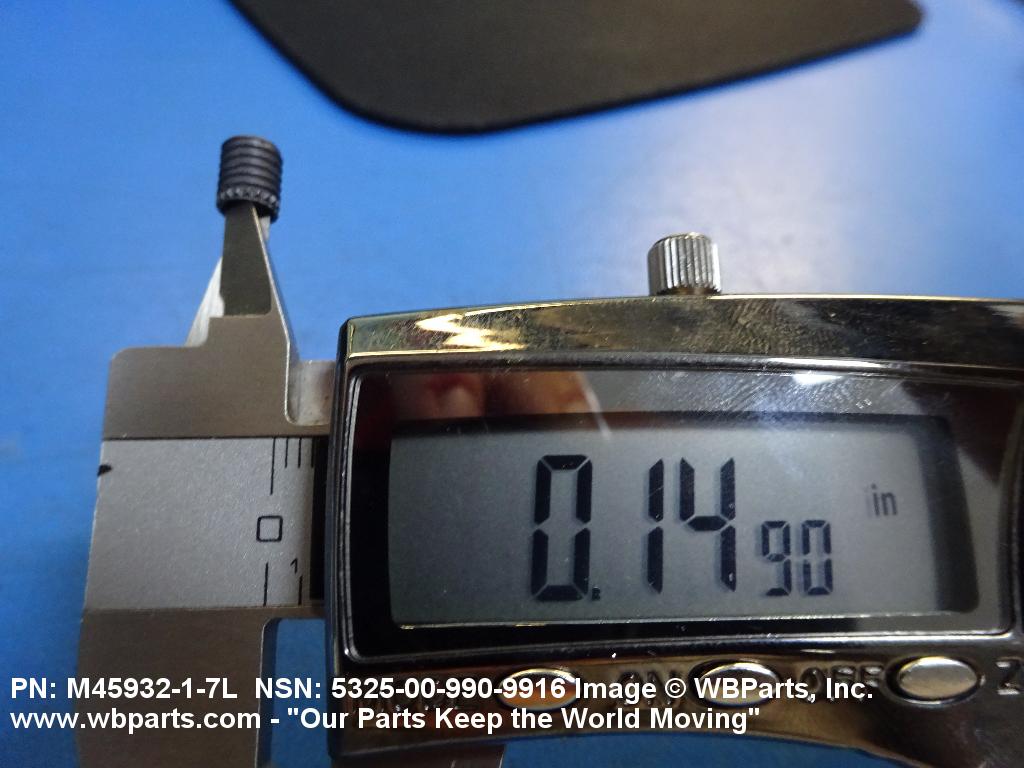

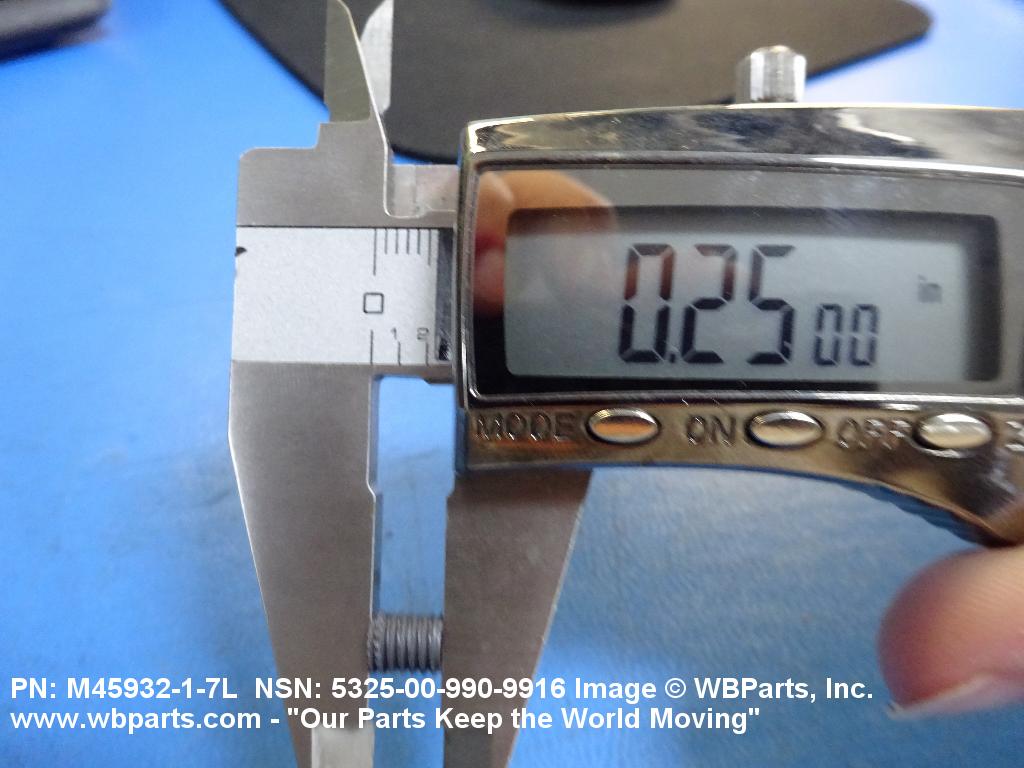

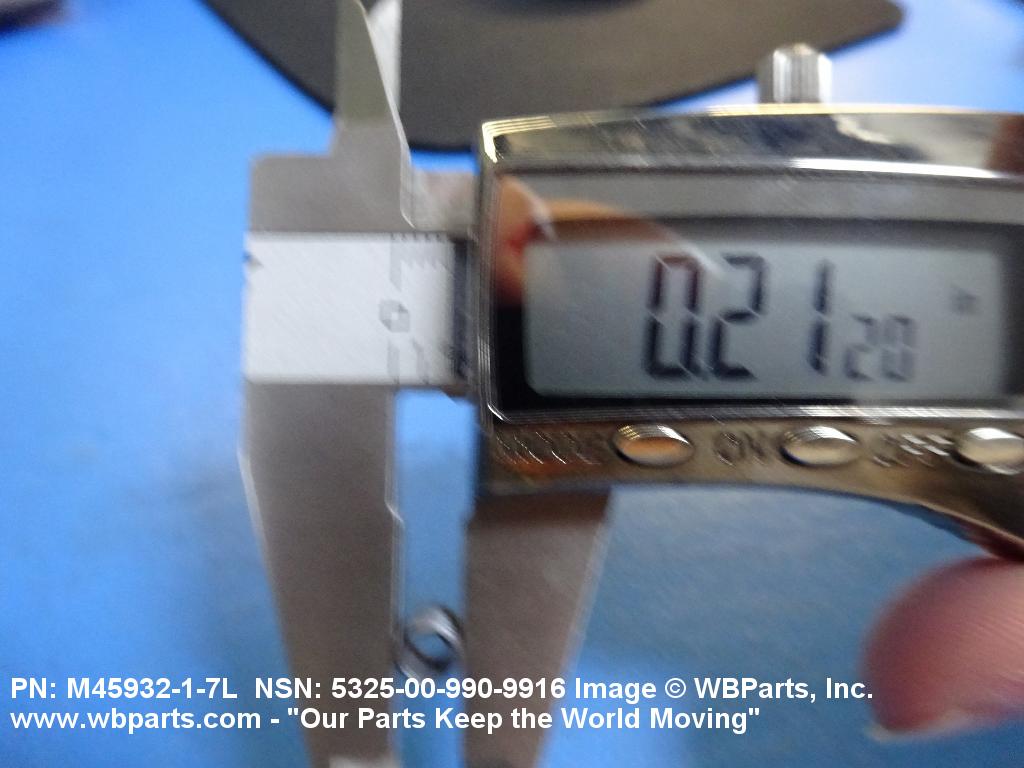

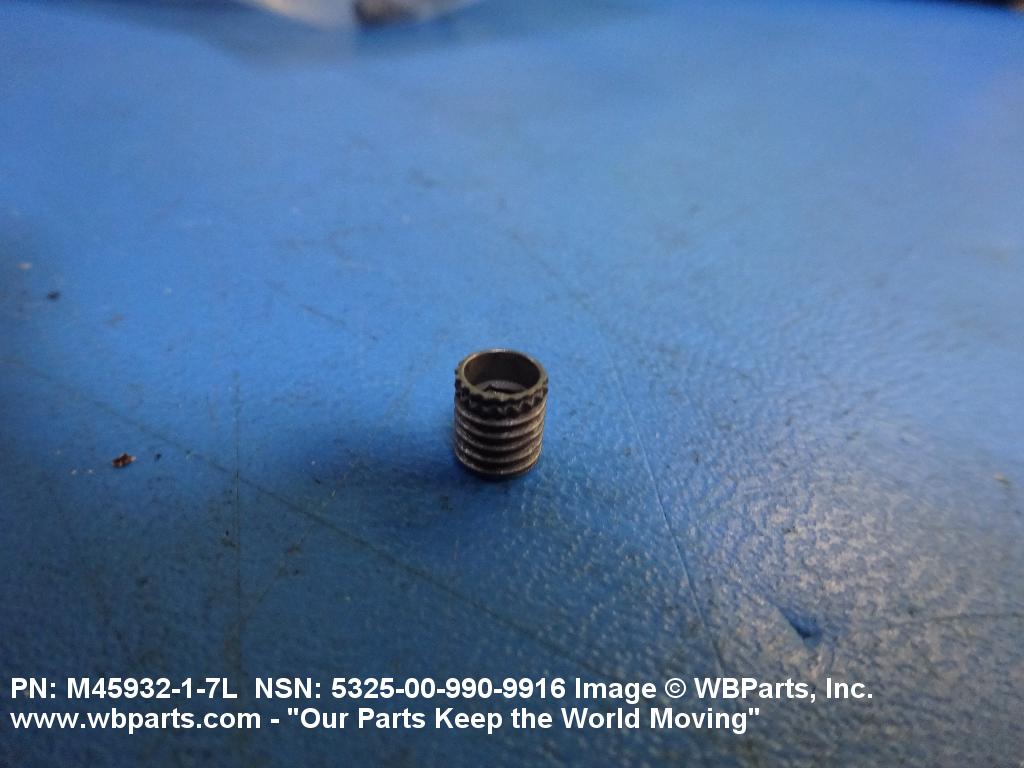

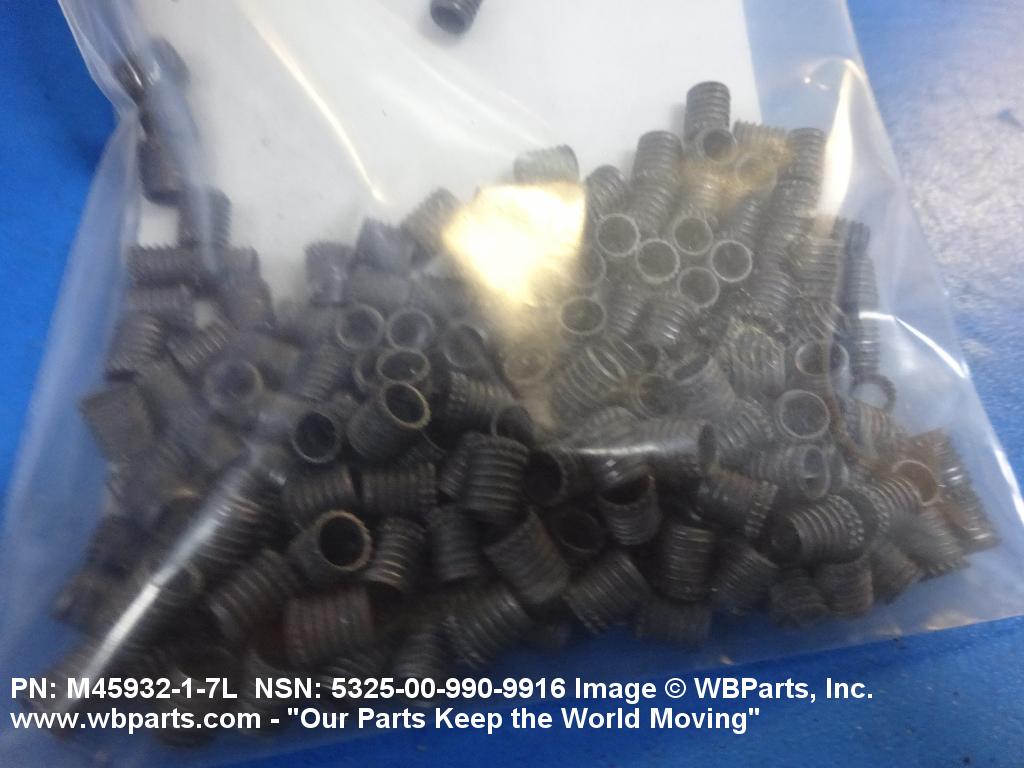

Drawings & Photos | NSN 5325-00-990-9916
Demand History | NSN 5325-00-990-9916
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-990-9916 | 2024-01-31 | 2488 | DIBBS |
| SR162L | 2023-10-276 | 810 | United States |
| SR162L | 2023-07-209 | 90 | United States |
| SR162L | 2023-07-209 | 330 | United States |
| M4593217L | 2022-03-68 | 175 | United States |
| 5325-00-990-9916 | 2021-12-344 | 4 | Philippines |
| 5325-00-990-9916 | 2019-02-45 | 1654 | DIBBS |
| 5325-00-990-9916 | 2019-01-30 | 2732 | DIBBS |
| 5325-00-990-9916 | 2018-06-171 | 15 | US |
| SR162L | 2015-03-79 | 36 | US |
| M4593217L | 2014-06-157 | 50 | AT |
| 5325-00-990-9916 | 2013-11-311 | 4711 | DIBBS |
| M4593217L | 2012-03-79 | 110 | US |
| SR162L | 2011-08-230 | 8 | United States |
| 5325-00-990-9916 | 2010-05-125 | 3242 | DIBBS |
| SR162L | 2010-03-63 | 20 | US |
| SR162L | 2010-02-56 | 0 | US |
| 5325-00-990-9916 | 2009-12-343 | 1335 | DIBBS |
| 5325-00-990-9916 | 2009-04-106 | 1 | India |
| 5325-00-990-9916 | 2008-12-350 | 190 | us |
| M4593217L | 2008-06-172 | 8 | US |
| M4593217L | 2008-06-165 | 45 | US |
| 5325-00-990-9916 | 2008-04-119 | 1 | US |
Cross Reference | NSN 5325-00-990-9916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10018772-005 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 715658-260 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 7792303-3 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8832848 | 19203 | PICATINNY ARSENAL |
| 8840155-9 | 19203 | PICATINNY ARSENAL |
| 911154-02 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| K8002-08 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| K8002-08 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| M45932+1+7L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M45932-1-7L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SR162L | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-990-9916
Related Products | NSN 5325-00-990-9916
Technical Data | NSN 5325-00-990-9916
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 17-4PH,ARMCO STEEL CO MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | H2 PLAIN |
| LENGTH | 0.250 INCHES NOMINAL |
| INSERT SIZE | 12-28 NF NONSTD |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.210 INCHES NOMINAL |
| FEATURES PROVIDED | INDIVIDUALLY KEYED |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45932-1-7L |
Restrictions/Controls & Freight Information | NSN 5325-00-990-9916
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-990-9916
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
