NSN 5325-00-857-8252 16002311, 1600231-1, 00-857-8252
Product Details | SCREW THREAD INSERT
5325-00-857-8252 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: 16002311, 1600231-1, 5325-00-857-8252, 00-857-8252, 5325008578252, 008578252
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1962 | 00-857-8252 | 11444 ( INSERT, SCREW THREAD ) |
Cross Reference | NSN 5325-00-857-8252
Part Number | Cage Code | Manufacturer |
---|---|---|
1600231-1 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5325-00-857-8252
Technical Data | NSN 5325-00-857-8252
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING OVERALL |

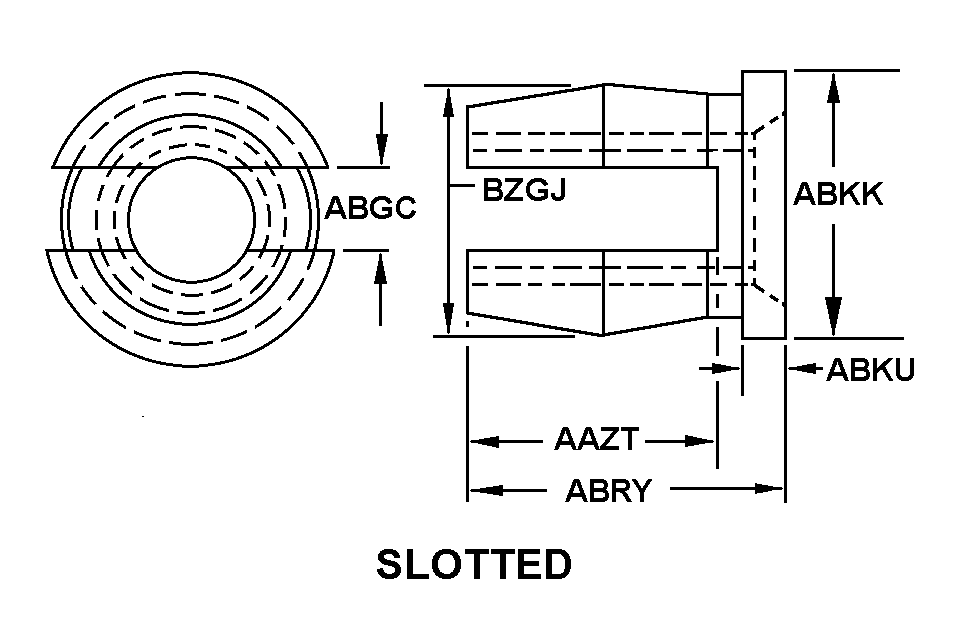

STYLE DESIGNATOR | H12 SLOTTED |
SLOT DEPTH | 0.172 INCHES NOMINAL |
SLOT WIDTH | 0.062 INCHES NOMINAL |
FLANGE THICKNESS | 0.020 INCHES NOMINAL |
LENGTH | 0.202 INCHES NOMINAL |
WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
INSERT SIZE | 0.216 IN. NOM |
FEATURES PROVIDED | INDIVIDUALLY KEYED |
MANUFACTURERS CODE | 99251 |
DESIGN CONTROL REFERENCE | 1600231-1 |
Restrictions/Controls & Freight Information | NSN 5325-00-857-8252
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
