NSN 5325-00-826-4023 MS122076, MS122095, MS21208C0410

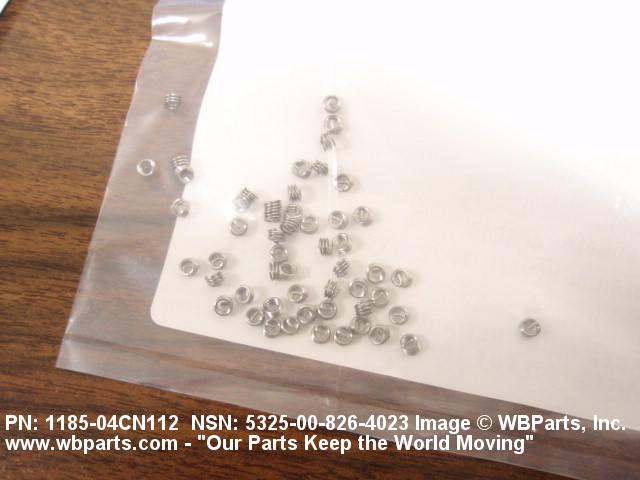

Product Details | SCREW THREAD INSERT

5325-00-826-4023 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS122076, MS122095, MS21208C0410, MS21209C0420, PL7414632002, PL7414632-002, PL7529232002, PL7529232-002, QC039UUF0RM5PC, QC0-39UUF0RM5PC, U140302, 117913-003, 118504CN0112, 1185-04CN0112, 1185-04CN-0112, 118504CN112, 1185-04CN112, 118504CNX112, 1185-04CNX112, 118504CNY0112, 1185-04CNY-0112, 1400302, 208C020172, 208C02-0172, 208C040112, 208C04-0112, 294498, 29449-8, 40560000119, 4169361, 416936-1, 021.450453, 10356430, 1079995, 107999-5, 55225668, 552256-68, 58A5A1201, 58A5A120-1, 69991042C, 69991-04-2C, 7351103, 735110-3, 80470002, 80470-002, 90698517, 906985-17, 9465331041, 946533-1041, 5325-00-826-4023, 00-826-4023, 5325008264023, 008264023, 021450453, 117913003

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-826-4023	11444 ( INSERT, SCREW THREAD )

Drawings & Photos | NSN 5325-00-826-4023

Part Number	Request Date	QTY	Origin
MS122076	2024-10-297	250	Japan
MS21209C0420	2024-07-211	1000	United States
MS122076	2024-07-191	100	Japan
MS21209C0420	2023-07-205	380	United States
MS21209C0420	2022-03-90	1000	United States
5325-00-826-4023	2021-11-321	22500	TW
5325-00-826-4023	2021-07-201	5	US
MS122076	2020-08-234	120	US
MS21208C0410	2020-01-14	100	United States
MS21209C0420	2019-12-345	1000	IN
5325-00-826-4023	2019-09-249	10	United States
MS21209C0420	2019-06-171	18	United States
5325-00-826-4023	2019-02-55	24000	DIBBS
5325-00-826-4023	2019-01-30	4597	DIBBS
5325-00-826-4023	2018-11-308	4261	DIBBS
MS122076	2018-10-299	25	United States
MS122076	2018-10-289	10	United States
MS122076	2018-08-240	15	United States
MS21209C0420	2016-07-207	72	United States
MS122095	2016-03-83	818	US
MS122095	2015-03-83	80	United States
MS21209C0420	2014-11-324	120	PL
MS21209C0420	2014-11-324	360	PL
5325-00-826-4023	2014-11-306	6250	DIBBS
MS21208C0410	2014-06-168	129	UM
MS21209C0420	2014-04-92	50	United States
MS21209C0420	2014-02-58	75	UM
MS122095	2014-02-38	25	US
MS21209C0420	2013-12-364	100	Greece
MS21209C0420	2012-12-354	40	Greece
MS21209C0420	2012-05-131	1	Greece
MS122076	2012-05-130	200	United States
MS21209C0420	2012-03-82	80	Greece
118504CN0112	2012-02-44	70	US
118504CNY0112	2012-02-44	70	US
MS21209C0420	2011-10-304	108	United States
MS122076	2011-10-280	13	United States
MS21209C0420	2011-09-269	114	us
118504CN112	2010-10-281	50	Poland
5325-00-826-4023	2010-04-120	50	US
MS21209C0420	2010-04-118	30	Singapore
5325-00-826-4023	2010-04-103	4547	DIBBS
MS122076	2009-07-189	13000	US
MS122076	2009-07-189	25500	US
MS122095	2009-07-189	30	US
MS122095	2009-07-189	100	US
5325-00-826-4023	2008-08-221	20	Taiwan
5325-00-826-4023	2007-05-122	2000	China

Cross Reference | NSN 5325-00-826-4023

Part Number	Cage Code	Manufacturer
021.450453	D1597	AIM INFRAROT-MODULE GMBH DBA AIM IR GMBH
107999-5	37695	RAYTHEON COMPANY DBA RAYTHEON
117913-003	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
1185-04CN-0112	20049	THE ELECTRIC TACHOMETER CORP.
1185-04CN0112	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-04CN112	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-04CNX112	26344	NEW HAVEN MFG CORP
1185-04CNY-0112	26344	NEW HAVEN MFG CORP
1400302	K5974	ROLLS-ROYCE PLC NAVAL MARINE
208C02-0172	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
208C04-0112	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
29449-8	96214	RAYTHEON COMPANY DBA RAYTHEON
40560000119	S0522	TADIRAN LTD
416936-1	96214	RAYTHEON COMPANY DBA RAYTHEON
552256-68	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
58A5A120-1	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
69991-04-2C	73030	HAMILTON SUNDSTRAND CORPORATION
735110-3	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
80470-002	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
906985-17	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
946533-1041	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
MS122076	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS122076	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS122095	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21208C0410	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21209C0420	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
PL7414632-002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
PL7529232-002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
QC0-39UUF0RM5PC	59474	JEFFERS ELECTRONICS INC
U140302	K5974	ROLLS-ROYCE PLC NAVAL MARINE
