NSN 5325-00-825-4826 MS122158, MS122178, MS21208C0620

Product Details | SCREW THREAD INSERT

5325-00-825-4826 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS122158, MS122178, MS21208C0620, M010007, M01-0007, SMD209378, SMD20937815, SMD209378-15, U140383, P6136, P613-6, 58A5A1208, 58A5A120-8, 7004990P1CN, 7030112, 703011-2, 82653, 9072696, 1185-06 CNX.276, 118506CN0276, 1185-06CN0276, 118506CN276, 1185-06CN276, 118506CNV276, 1185-06CNV276, 118506CNX276, 1400383, 208C060276, 208C06-0276, 3041736062, 30-417-360-62, 3641011P1, 364-1011P1, 41693668, 416936-68, 5325-00-825-4826, 00-825-4826, 5340008254826 , 5325008254826, 008254826

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-825-4826	11444 ( INSERT, SCREW THREAD )

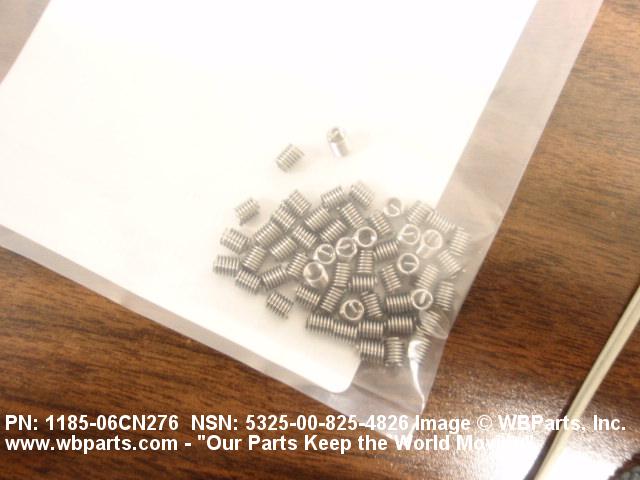

Drawings & Photos | NSN 5325-00-825-4826

Part Number	Request Date	QTY	Origin
MS21208C0620	2023-09-268	150	CN
5325-00-825-4826	2022-03-87	1	UM
5325-00-825-4826	2021-11-321	2100	TW
5325-00-825-4826	2020-10-288	10000	DIBBS
5325-00-825-4826	2020-06-162	6	VI
5325-00-825-4826	2019-09-269	4000	DIBBS
5325-00-825-4826	2019-07-202	1429	DIBBS
118506CN276	2019-05-127	100	United States
5325-00-825-4826	2016-03-63	2224	DIBBS
MS122158	2013-09-269	132	US
MS122158	2013-09-269	246	US
118506CNV276	2012-07-198	4	CN
MS122158	2011-09-257	100	Israel
5325-00-825-4826	2011-01-17	55	CA
118506CN0276	2011-01-04	5	US
118506CN276	2010-10-281	50	Poland
118506CNV276	2010-09-258	1000	CN
MS122158	2010-06-165	50	United States
5325-00-825-4826	2008-11-331	5000	DIBBS
5325-00-825-4826	2008-08-221	50	Taiwan
5325-00-825-4826	2008-03-91	50	United States

Cross Reference | NSN 5325-00-825-4826

Part Number	Cage Code	Manufacturer
1185-06 CNX.276	K1012	ARMSTRONG PRECISION COMPONENTS LTD
1185-06CN0276	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-06CN276	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1185-06CNV276	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1400383	K5974	ROLLS-ROYCE PLC NAVAL MARINE
208C06-0276	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
30-417-360-62	K0802	MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS
364-1011P1	49956	RAYTHEON COMPANY DBA RAYTHEON
416936-68	96214	RAYTHEON COMPANY DBA RAYTHEON
5340008254826	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
58A5A120-8	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
7004990P1CN	03538	LOCKHEED MARTIN CORPORATION DIV MST
7004990P1CN	24446	GENERAL ELECTRIC CO
703011-2	96214	RAYTHEON COMPANY DBA RAYTHEON
82653	11312	TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS
9072696	18876	U S ARMY AVIATION AND MISSILE COMMAND
M01-0007	20019	WARD LEONARD ELECTRIC CO INC
MS122158	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS122178	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21208C0620	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
P613-6	80203	GABRIEL ELECTRONICS INC
SMD209378	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SMD209378-15	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
U140383	K5974	ROLLS-ROYCE PLC NAVAL MARINE
