NSN 5325-00-824-8793 CA170364, CA17036-4, CA170364HS

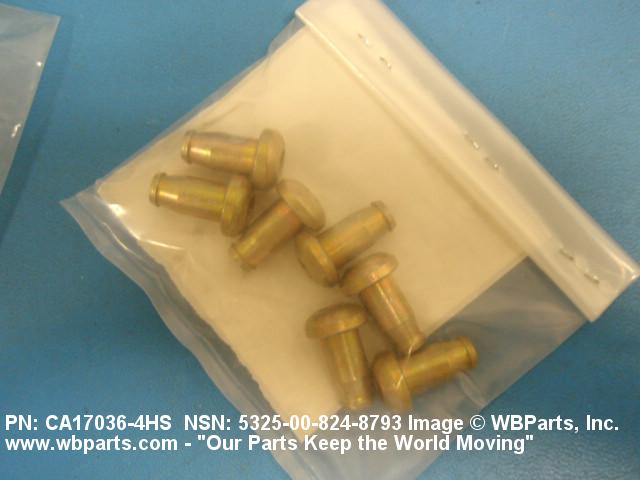

Product Details | TURNLOCK FASTENER STUD

5325-00-824-8793 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: CA170364, CA17036-4, CA170364HS, CA17036-4HS, FIT3075, FIT30754, FIT3075-4, 4843724, 484372-4, 5325-00-824-8793, 00-824-8793, 5325008248793, 008248793

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 APR 1972	00-824-8793	18421 ( STUD, TURNLOCK FASTENER )

Drawings & Photos | NSN 5325-00-824-8793

Part Number	Request Date	QTY	Origin
5325-00-824-8793	2017-11-327	242	DIBBS
5325-00-824-8793	2017-04-116	117	DIBBS
5325-00-824-8793	2017-04-108	117	DIBBS
5325-00-824-8793	2012-09-251	204	DIBBS
5325-00-824-8793	2009-10-280	7	United States
5325-00-824-8793	2009-06-152	7	United States

Cross Reference | NSN 5325-00-824-8793

Part Number	Cage Code	Manufacturer
484372-4	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
484372-4	49956	RAYTHEON COMPANY DBA RAYTHEON
CA17036-4	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CA17036-4HS	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
FIT3075	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
FIT3075-4	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
