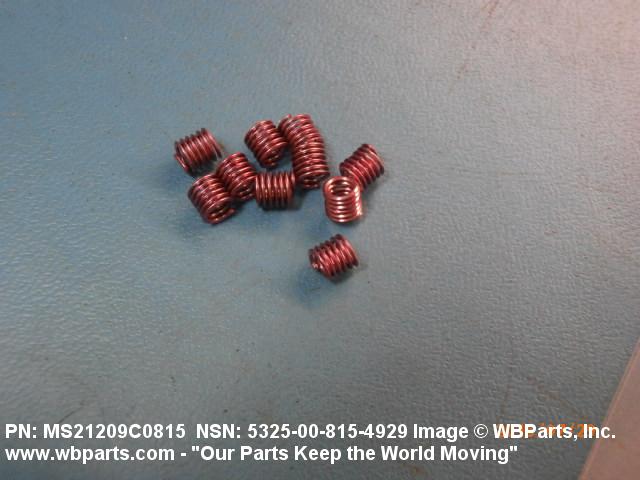

NSN 5325-00-815-4929 MS21209C0815, MS21209-C0815, MS21209C08-15

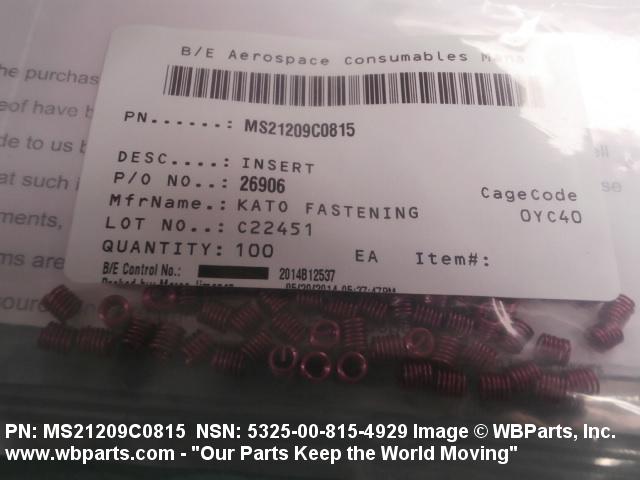

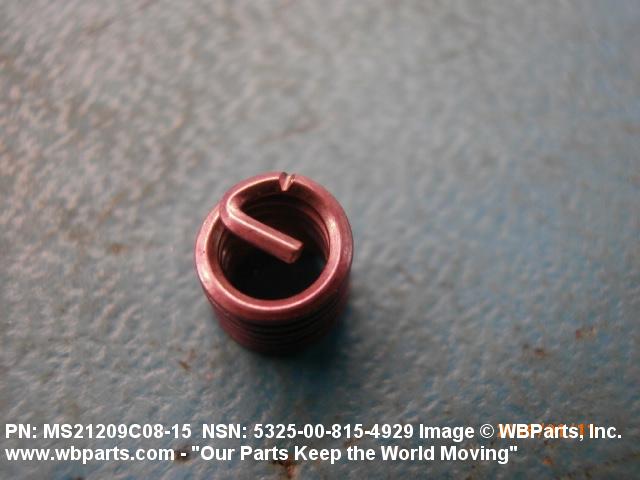

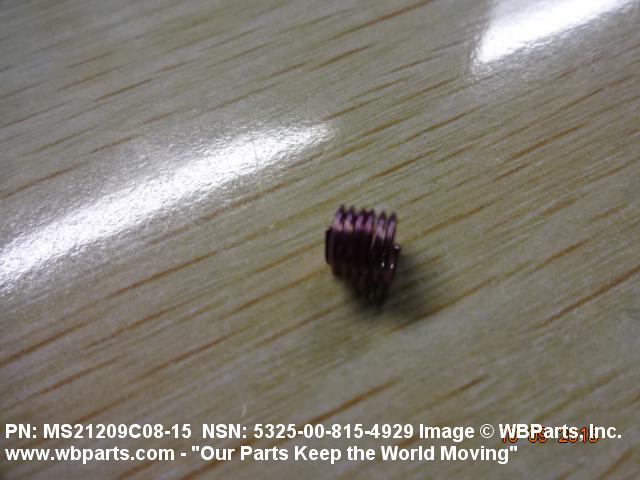

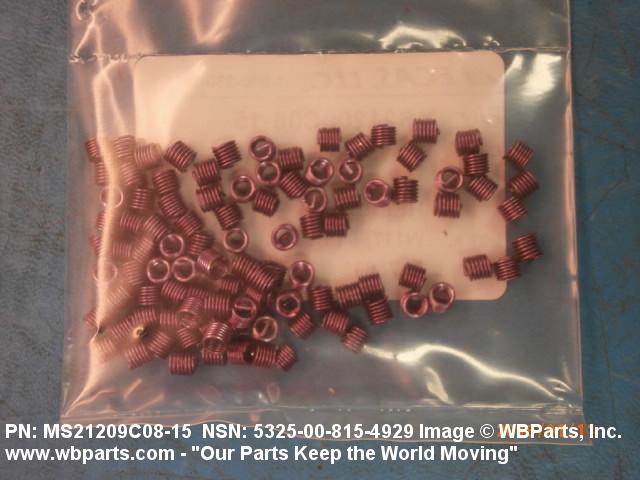

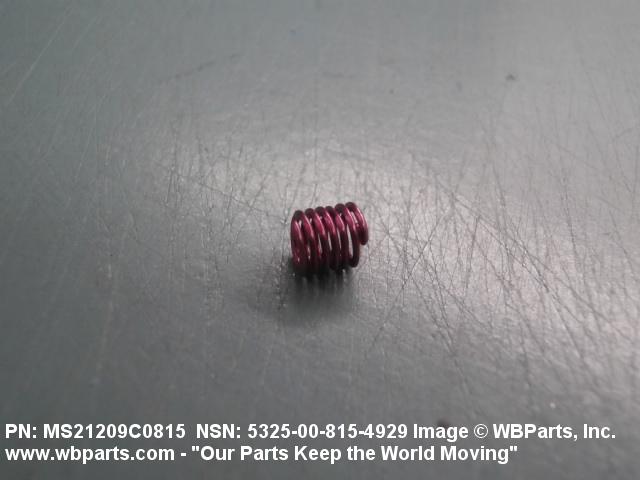

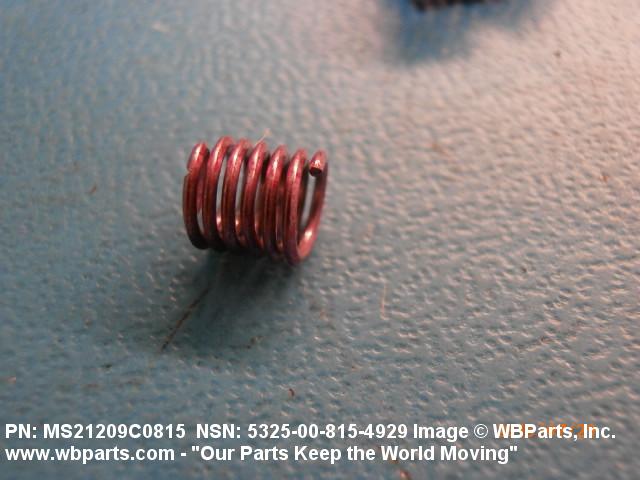

Product Details | SCREW THREAD INSERT
5325-00-815-4929 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS21209C0815, MS21209-C0815, MS21209C08-15, MS321209C0815, NAS122208D, NAS1222-08D, SMD5033092, SMD503309-2, B66545, B6654-5, CH12119350, CH121193-50, 540005-007, 54160685, 5-4-1606-8-5, 5628923, 562892-3, 64539408B, 645394-08B, 691C650P5, 829344, 82934400, 829344-00, 8526368, 8808093, 8823585, 8824439, 9059543, 90770504, 907705-04, 94755581, 947555-81, 0122112000, 012-2112-000, 1070223, 107022-3, 15862182, 1586218-2, 16432UNC246LONG, 188390, 209C080246, 209C08-0246, 218080, 2350010815, 235-001-0815, 26J10008M, 26J100-08M, 2JC, 35852 CNX.246, 35852CN246, 3585-2CN246, 35852CNX246, 3585-2CNX246, 364MR8P3, 364MS008P003, 3669456, 36694-56, 404341, 40434-1, 41021611, 410216-11, 4575707, 457-5707 , 501C6134, 501C6-134, 5325-00-815-4929, 00-815-4929, 5340008154929 , 5325008154929, 540005007, 008154929
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-815-4929 | 11444 ( INSERT, SCREW THREAD ) |
Demand History | NSN 5325-00-815-4929
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS21209C0815 | 2024-04-15 | 3000 | IL |
5325-00-815-4929 | 2022-07-07 | 25 | US |
MS21209C0815 | 2022-02-17 | 4 | United States |
MS21209C0815 | 2020-02-13 | 400 | US |
MS21209C0815 | 2020-02-06 | 400 | US |
MS21209C0815 | 2020-02-06 | 400 | US |
MS21209C0815 | 2020-02-06 | 1 | US |
B66545 | 2019-09-20 | 125 | US |
5325-00-815-4929 | 2019-09-20 | 125 | US |
MS21209C0815 | 2019-07-09 | 35 | KR |
5325-00-815-4929 | 2019-03-28 | 51682 | DIBBS |
MS21209C0815 | 2019-03-07 | 25 | United States |
MS21209C0815 | 2018-11-28 | 60 | TR |
5325-00-815-4929 | 2018-07-10 | 39829 | DIBBS |
5325-00-815-4929 | 2018-06-05 | 68598 | DIBBS |
MS21209C0815 | 2017-11-03 | 84 | UK |
MS21209C0815 | 2017-08-11 | 92 | United States |
MS21209C0815 | 2017-08-11 | 100 | United States |
5325-00-815-4929 | 2017-05-07 | 68598 | DIBBS |
5325-00-815-4929 | 2017-04-25 | 10 | US |
5325-00-815-4929 | 2017-02-05 | 6497 | DIBBS |
MS21209C0815 | 2016-08-09 | 75 | United States |
MS21209C0815 | 2016-07-05 | 40 | United States |
MS21209C0815 | 2016-06-30 | 6 | us |
5325-00-815-4929 | 2016-01-08 | 20 | United States |
MS21209C0815 | 2015-08-14 | 48 | United States |
MS21209C0815 | 2015-07-22 | 256 | South Korea |
5325-00-815-4929 | 2015-06-18 | 960 | US |
5325-00-815-4929 | 2015-06-17 | 5 | United States |
MS21209C0815 | 2015-04-21 | 103 | United States |
MS21209C0815 | 2014-08-20 | 10 | United States |
MS21209C0815 | 2014-07-03 | 250 | United States |
MS21209C0815 | 2014-06-17 | 50 | United States |
MS21209C0815 | 2014-06-09 | 50 | United States |
MS21209C0815 | 2014-05-20 | 100 | United States |
MS21209C0815 | 2014-05-19 | 25 | United States |
MS21209C0815 | 2014-02-11 | 100 | US |
MS21209C0815 | 2013-12-12 | 1000 | US |
5325-00-815-4929 | 2013-04-18 | 10 | MANUAL |
5325-00-815-4929 | 2013-04-10 | 24000 | DIBBS |
5325-00-815-4929 | 2013-03-13 | 23159 | DIBBS |
MS21209C0815 | 2012-12-10 | 400 | China |
MS21209C0815 | 2012-08-01 | 16 | US |
5325-00-815-4929 | 2012-08-01 | 23777 | DIBBS |
5325-00-815-4929 | 2012-07-24 | 23777 | DIBBS |
5325-00-815-4929 | 2012-06-22 | 100 | IN |
MS21209C0815 | 2012-06-11 | 12000 | CN |
MS21209C0815 | 2012-06-05 | 10 | US |
5325-00-815-4929 | 2012-04-09 | 34298 | DIBBS |
MS21209C0815 | 2012-02-09 | 112 | US |
MS21209C0815 | 2012-02-07 | 2000 | United States |
MS21209C0815 | 2011-12-22 | 1100 | TH |
MS21209C0815 | 2011-12-02 | 90 | US |
MS21209C0815 | 2011-12-02 | 360 | US |
MS21209C0815 | 2011-12-02 | 1080 | US |
5325-00-815-4929 | 2011-11-07 | 500 | Singapore |
5325-00-815-4929 | 2011-11-07 | 320 | Singapore |
MS21209C0815 | 2011-11-02 | 50 | United States |
MS21209C0815 | 2011-10-31 | 30 | US |
5325-00-815-4929 | 2011-07-22 | 50 | US |
5325-00-815-4929 | 2011-07-22 | 50 | US |
MS21209C0815 | 2011-07-20 | 300 | TR |
MS21209C0815 | 2011-07-06 | 3500 | United States |
MS21209C0815 | 2011-06-28 | 70 | United States |
MS21209C0815 | 2011-06-18 | 36 | United States |
MS21209C0815 | 2011-05-25 | 4 | us |
MS21209C0815 | 2011-04-14 | 100 | US |
MS21209C0815 | 2011-03-22 | 300 | US |
5325-00-815-4929 | 2011-03-07 | 40 | US |
5325-00-815-4929 | 2011-02-03 | 8000 | DIBBS |
5325-00-815-4929 | 2011-01-04 | 7993 | DIBBS |
MS21209C0815 | 2010-09-20 | 30 | United States |
35852CNX246 | 2010-04-02 | 20 | US |
5325-00-815-4929 | 2010-04-02 | 20 | US |
5325-00-815-4929 | 2010-03-09 | 500 | US |
MS21209C0815 | 2010-01-07 | 562 | India |
5325-00-815-4929 | 2009-08-21 | 12 | US |
5325-00-815-4929 | 2009-08-19 | 60 | United States |
5325-00-815-4929 | 2009-05-06 | 20 | US |
5325-00-815-4929 | 2009-04-30 | 10 | US |
5325-00-815-4929 | 2008-07-30 | 16000 | DIBBS |
MS21209C0815 | 2008-07-22 | 40 | US |
5325-00-815-4929 | 2008-03-03 | 2500 | DIBBS |
5325-00-815-4929 | 2006-12-19 | 100 | US |
Cross Reference | NSN 5325-00-815-4929
Part Number | Cage Code | Manufacturer |
---|---|---|
012-2112-000 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
107022-3 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
1586218-2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
164-32UNC, 246 LONG | 0R503 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS INC |
188390 | 62983 | EATON AEROSPACE LLC |
209C08-0246 | 12360 | ALBANY FASTENERS PAWTUCKET FASTENERS DIV |
218080 | 66503 | WOODWARD, INC. DBA WOODWARD |
218080 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
235-001-0815 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
26J100-08M | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
2JC | 79500 | WESTINGHOUSE ELECTRIC CORP |
2JC | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
3585-2CN246 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
3585-2CNX246 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
3585-2CNX246 | 05214 | COMPUTER MACHINING TECHNOLOGY CORP |
3585-2CNX246 | U1835 | GORDON ARMSTRONG PATENT SUSPENSION |
35852 CNX.246 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
364MR8P3 | 04164 | RAYTHEON ELECTRONIC SYSTEMS, INC |
364MR8P3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
364MS008P003 | 04164 | RAYTHEON ELECTRONIC SYSTEMS, INC |
364MS008P003 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
36694-56 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
40434-1 | 86090 | EATON INDUSTRIAL CORPORATION DBA AIRFRAME |
410216-11 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
5-4-1606-8-5 | 05699 | BRUNSWICK CORP DEFENSE DIV |
5-4-1606-8-5 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
501C6-134 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
5340008154929 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
540005-007 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
562892-3 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
645394-08B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
691C650P5 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
829344 | 19203 | PICATINNY ARSENAL |
829344-00 | 32345 | DEFENSE REDUCTION AGENCY |
8526368 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
8808093 | 19203 | PICATINNY ARSENAL |
8823585 | 19203 | PICATINNY ARSENAL |
8824439 | 19203 | PICATINNY ARSENAL |
9059543 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
907705-04 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
907705-04 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
947555-81 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
947555-81 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
B6654-5 | 07639 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
B6654-5 | 26344 | NEW HAVEN MFG CORP |
CH121193-50 | K0377 | GOODRICH ACTUATION SYSTEMS LTD |
MS21209-C0815 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
MS21209C08-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS21209C0815 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
MS21209C0815 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS321209C0815 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
NAS1222-08D | 04989 | FANSTEEL INC FANSTEEL/PSM |
NAS1222-08D | 06401 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST |
NAS1222-08D | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
NAS1222-08D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
SMD503309-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5325-00-815-4929
Technical Data | NSN 5325-00-815-4929
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING OVERALL |
SURFACE TREATMENT | PASSIVATE OVERALL |
STYLE DESIGNATOR | H1 COIL |

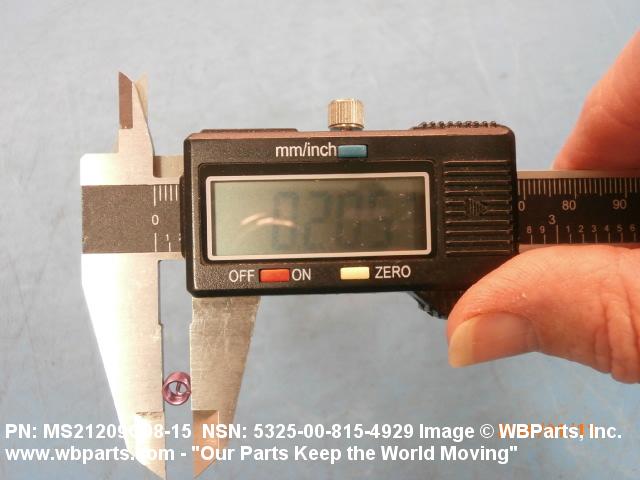

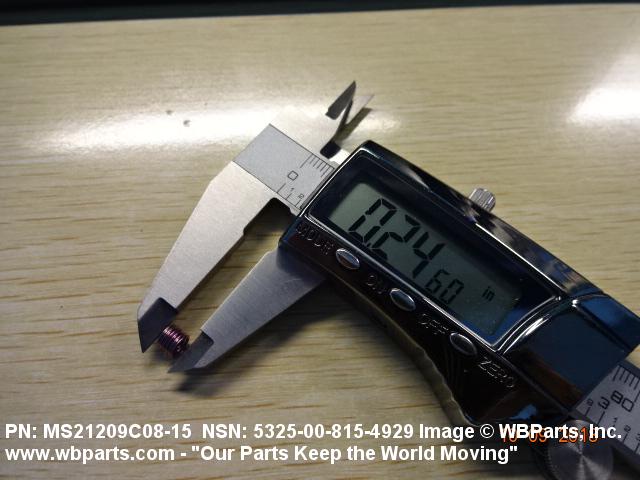

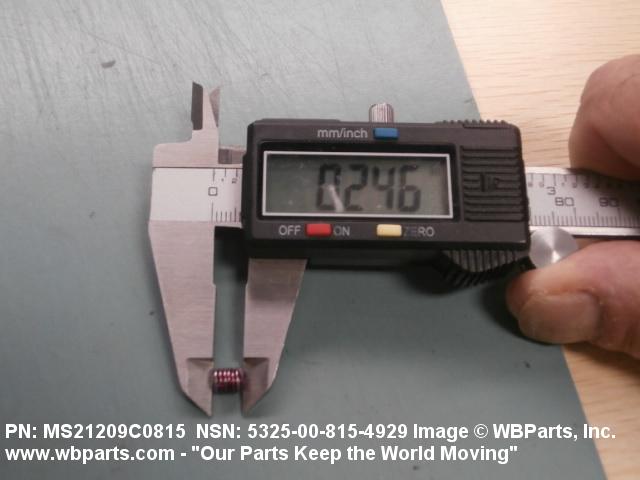

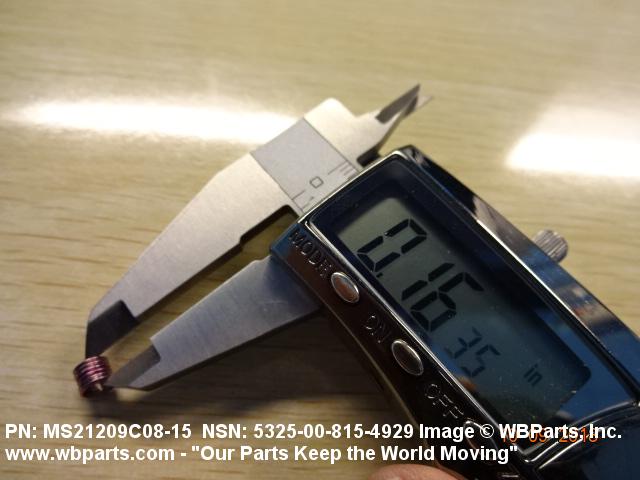

LENGTH | 0.246 INCHES NOMINAL |

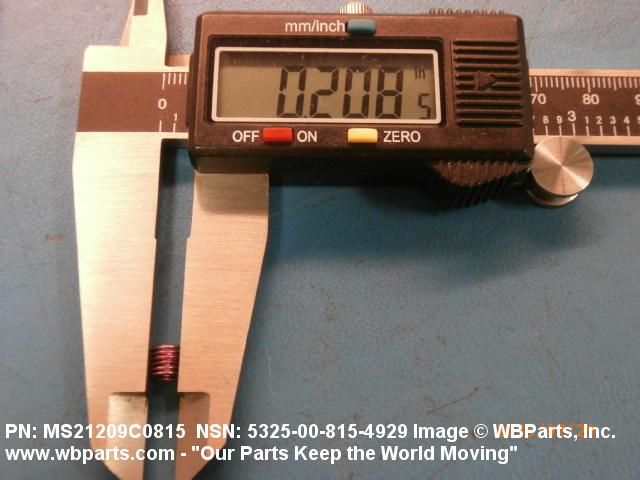

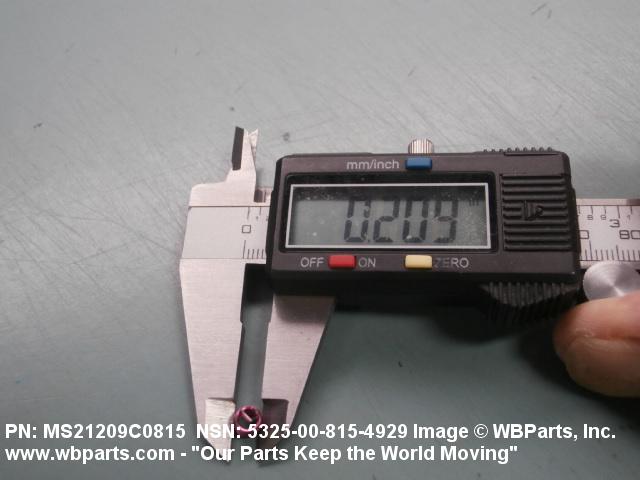

INSERT SIZE | 0.205 IN. MIN,0.220 IN. MAX |
THREAD SERIES DESIGNATOR | UNC |

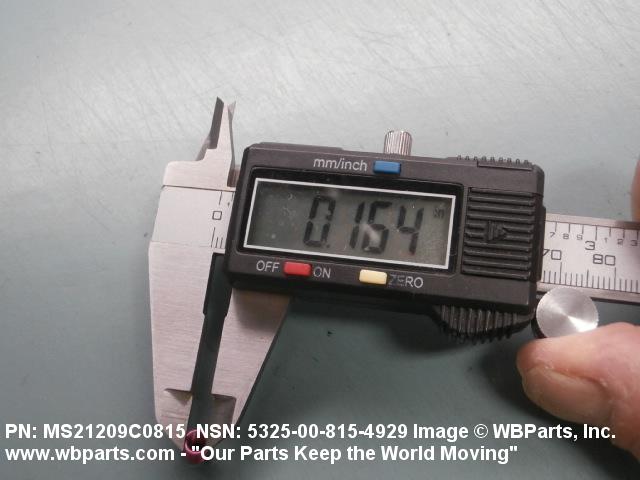

NOMINAL THREAD SIZE | 0.164 INCHES |

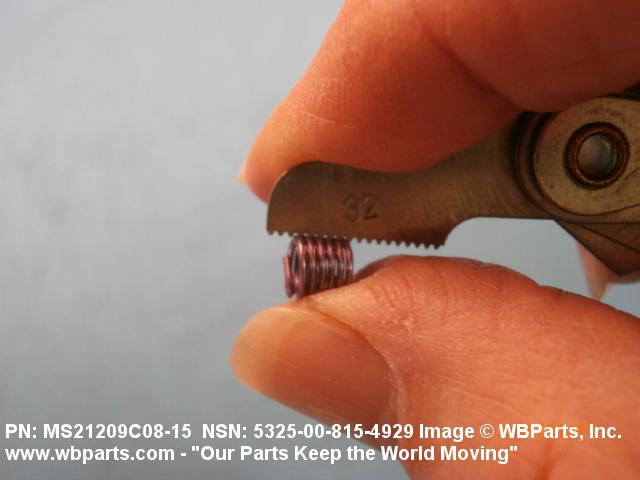

THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 0.246 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-815-4929
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
Category | Code | Description |
---|---|---|
NMF Description | 095190 | HARDWARE, NOI SUB 9 |
Less than car load rating | ||
Less than truck load rating | Q | 70.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-815-4929
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
M EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
M EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | K | Reserved |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
M EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
M EA : Each |
