Product Details | PANEL FASTENER INSERT

5325-00-738-1243 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Part Alternates: S106F103210, S106F1032-10, 5325-00-738-1243, 00-738-1243, 5325007381243, 007381243

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1961 00-738-1243

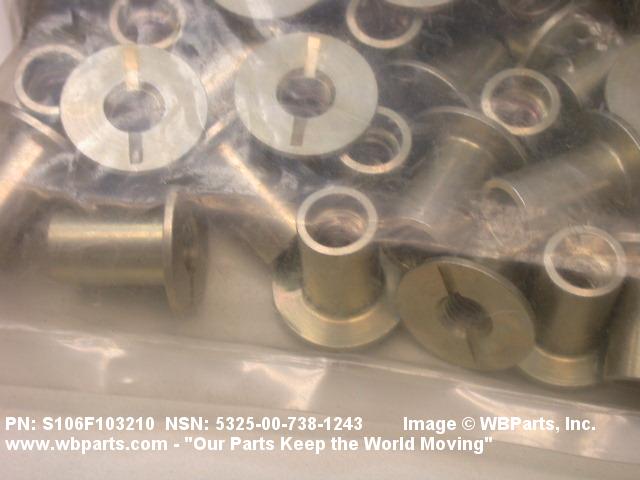

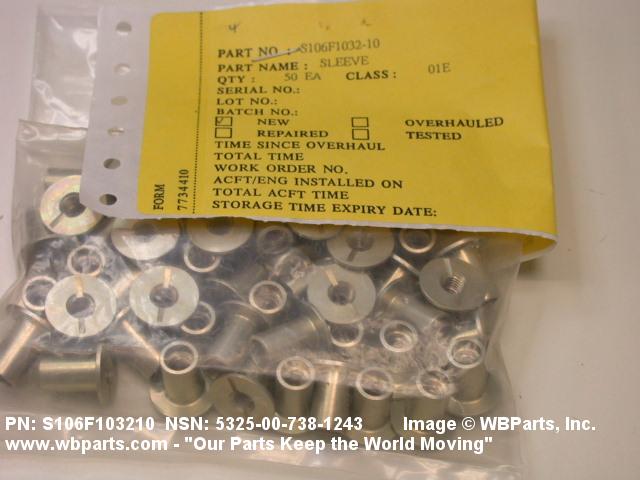

Drawings & Photos | NSN 5325-00-738-1243


Demand History | NSN 5325-00-738-1243

Part Number Request Date QTY Origin
S106F1032-10 2022-08-234 150 DIBBS
S106F1032-10 2022-08-221 150 DIBBS
S106F1032-10 2022-03-73 125 DIBBS
S106F1032-10 2022-03-62 125 DIBBS
S106F1032-10 2021-11-305 25 DIBBS
S106F1032-10 2021-10-297 25 DIBBS
S106F1032-10 2021-03-84 25 DIBBS
5325-00-738-1243 2018-07-190 200 DIBBS
5325-00-738-1243 2018-06-179 200 DIBBS
5325-00-738-1243 2011-08-237 75 DIBBS
5325-00-738-1243 2011-08-227 50 DIBBS
5325-00-738-1243 2009-06-162 500 DIBBS
5325-00-738-1243 2009-05-129 1500 DIBBS
5325-00-738-1243 2008-08-214 500 DIBBS
S106F103210 2007-07-187 50 United States

Cross Reference | NSN 5325-00-738-1243

Part Number Cage Code Manufacturer
S106F1032-10 29372 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
S106F1032-10 83324 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-738-1243

Technical Data | NSN 5325-00-738-1243

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 2024 OVERALL
SURFACE TREATMENT ANODIZE OVERALL
INSERT STYLE 6 PROTRUDING FLANGE
FLANGE DIAMETER 0.625 INCHES NOMINAL
FLANGE THICKNESS 0.043 INCHES NOMINAL
BODY DIAMETER 0.341 INCHES NOMINAL
HOLE TYPE THREADED
THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.190-32 UNJF
FEATURES PROVIDED GROMMET
SPECIAL FEATURES 0.620 IN. LG

Restrictions/Controls & Freight Information | NSN 5325-00-738-1243

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 013120 ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-738-1243

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
H
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
H
EA : Each
