NSN 5325-00-702-7781 AJ3358P, AJ3-35-8P, AJ335ZBY
Product Details | TURNLOCK FASTENER STUD
5325-00-702-7781 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: AJ3358P, AJ3-35-8P, AJ335ZBY, AJ3-35ZBY, 106C70055, 106C7005-5, 5325-00-702-7781, 00-702-7781, 5325007027781, 007027781
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-702-7781 | 18421 ( STUD, TURNLOCK FASTENER ) |

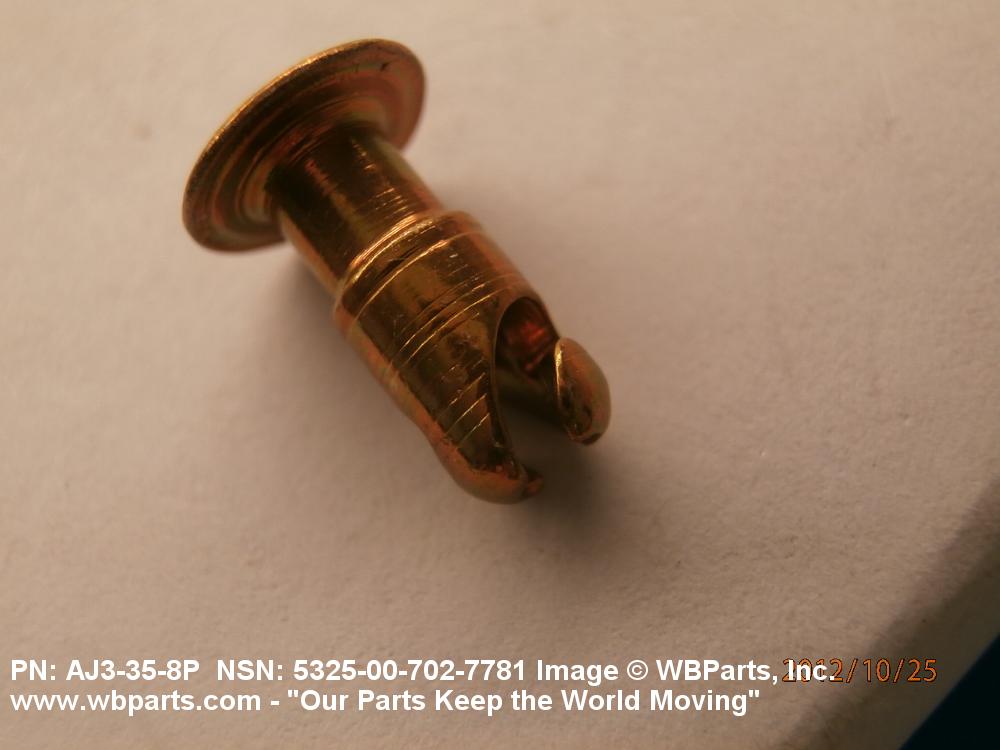

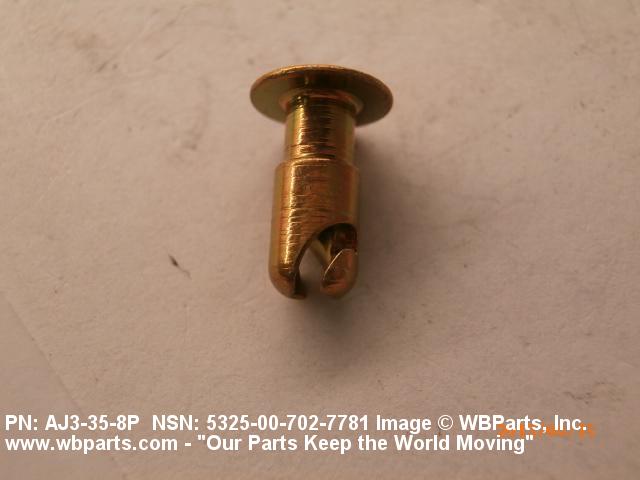

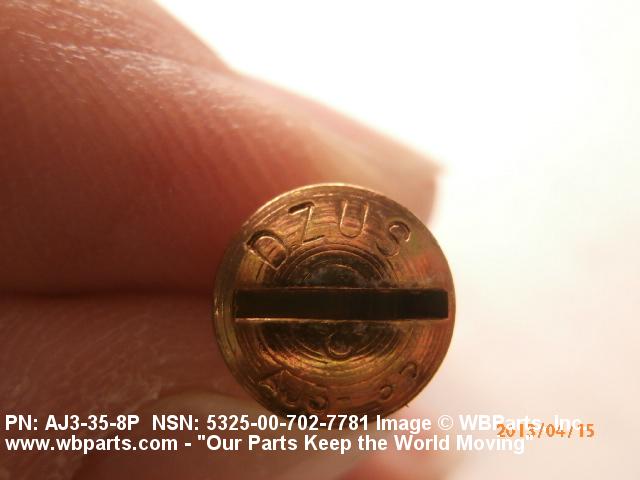

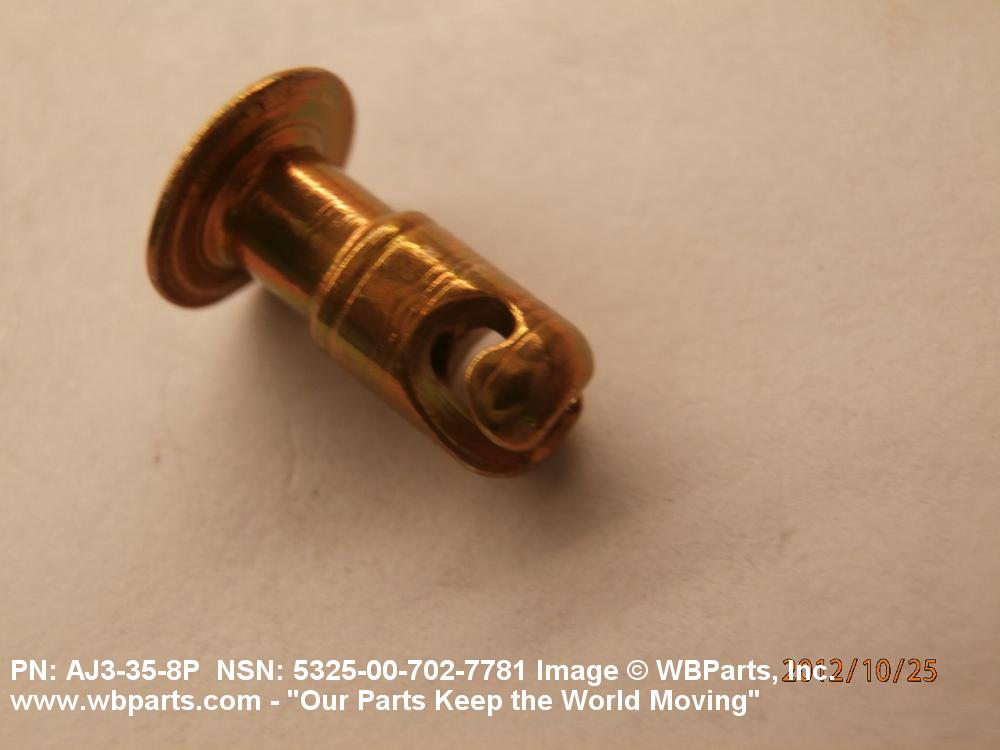

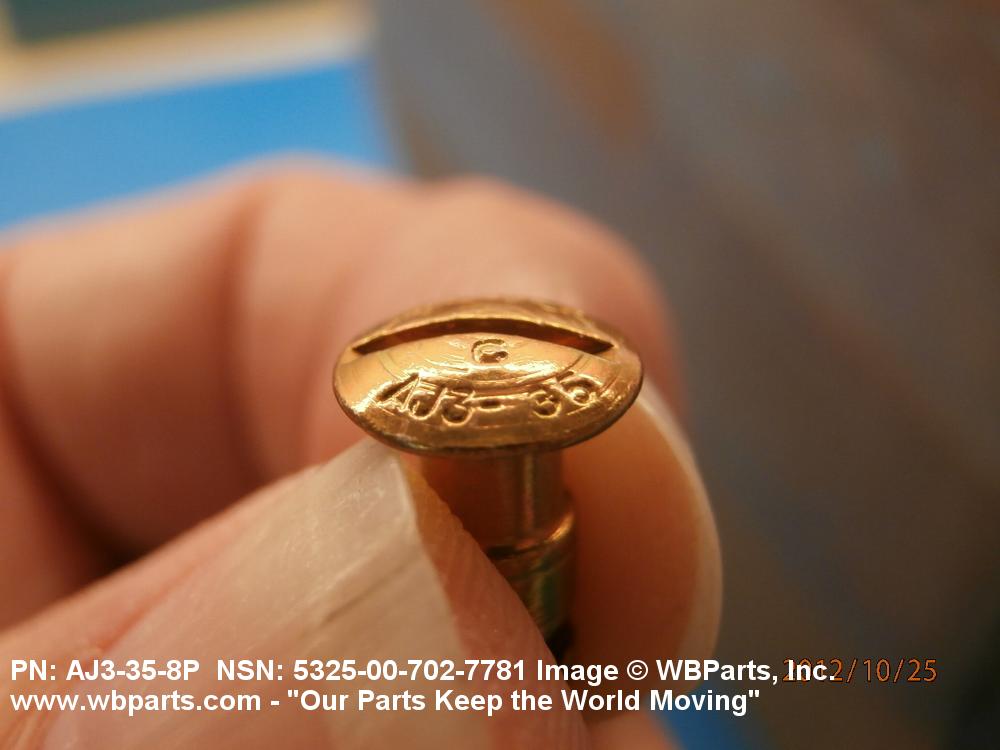

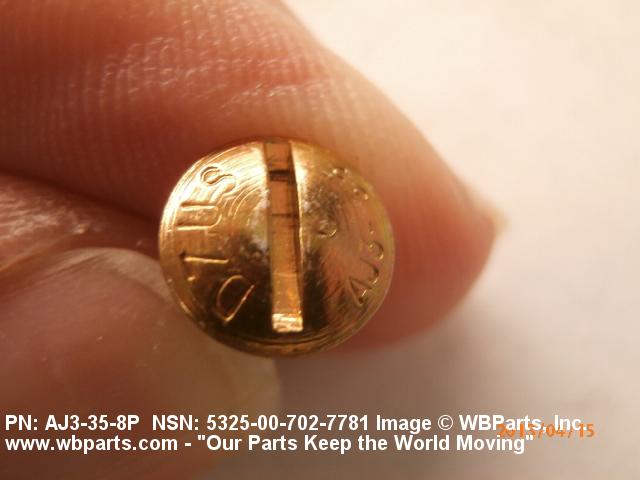

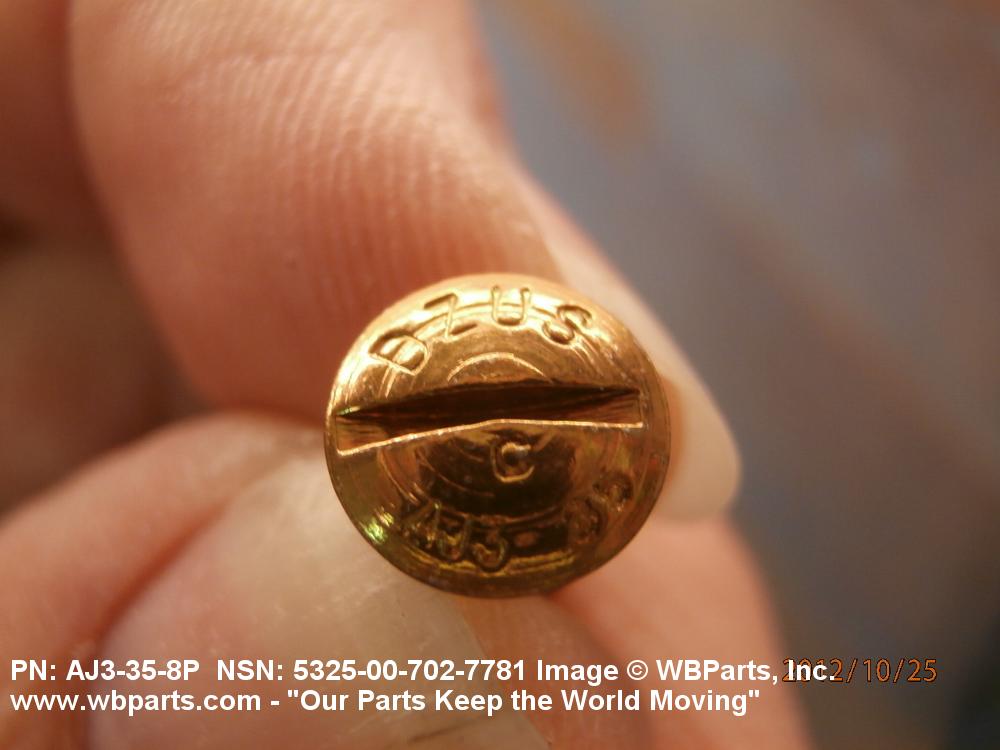

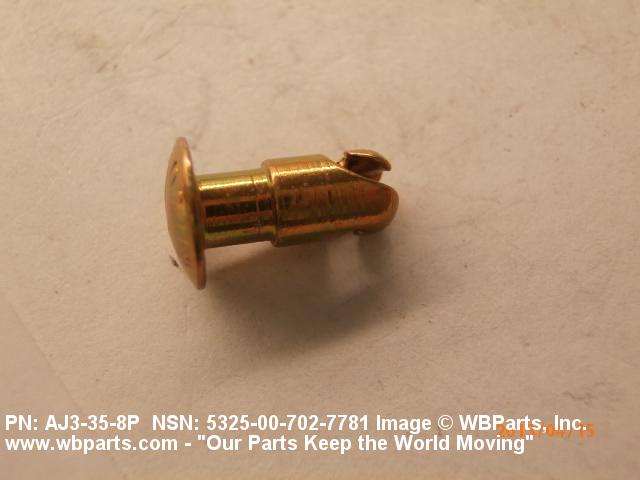

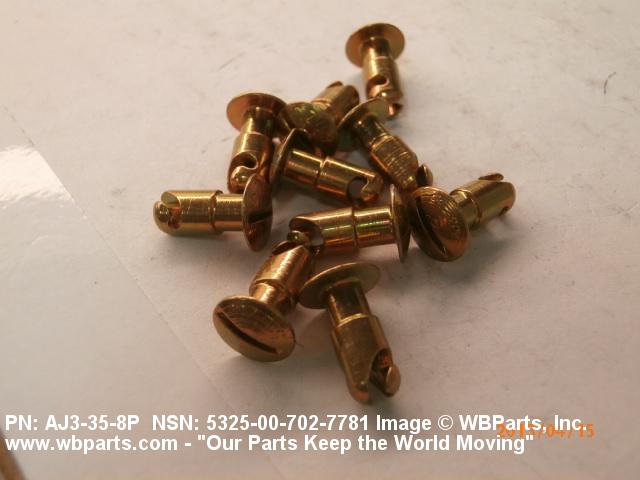

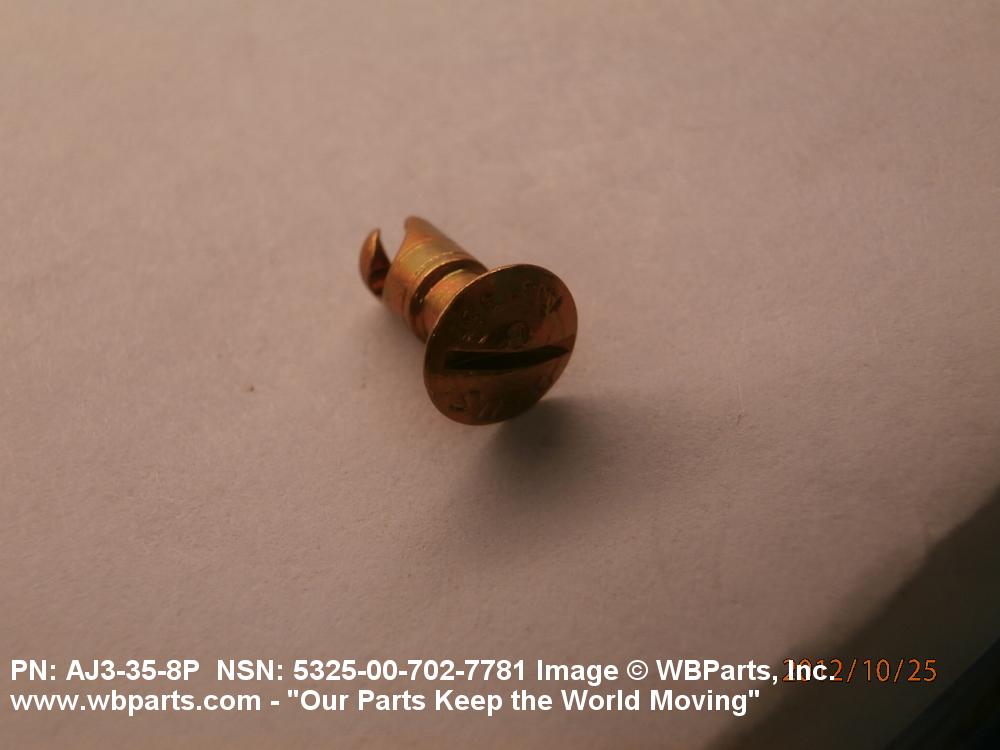

Drawings & Photos | NSN 5325-00-702-7781
Demand History | NSN 5325-00-702-7781
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AJ3358P | 2013-06-165 | 40 | United States |
| AJ3358P | 2013-04-98 | 40 | United States |
| AJ3358P | 2012-08-228 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-702-7781
Technical Data | NSN 5325-00-702-7781
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK STUD SHANK STYLE | 1 STUD SHANK |
| GRIP LENGTH | 0.800 INCHES NOMINAL |

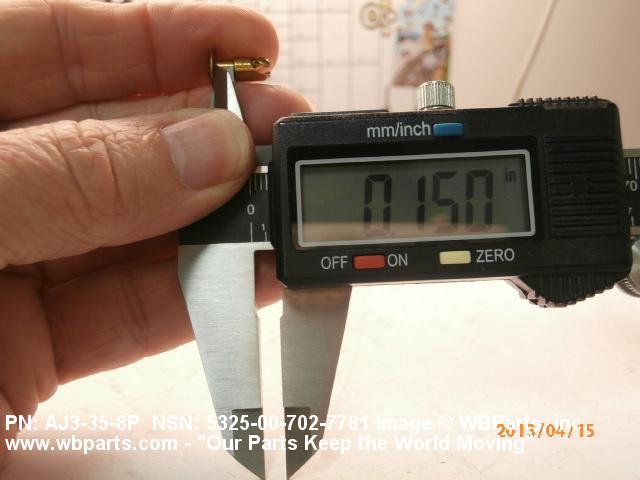

| SHANK NECK LENGTH | 0.150 INCHES NOMINAL |

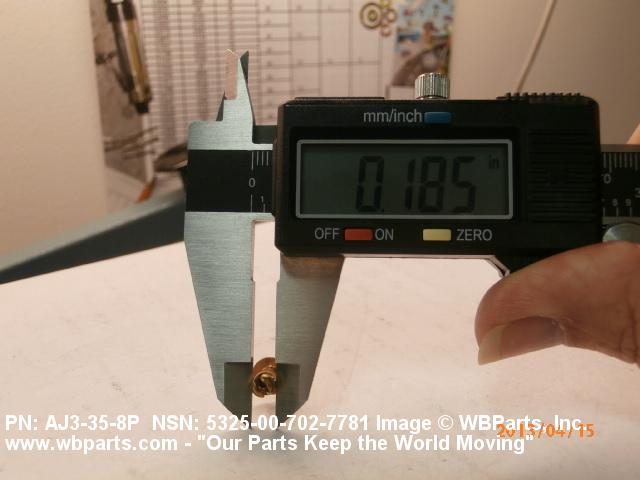

| STUD SHANK MAJOR DIAMETER | 0.188 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.313 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.190 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| MANUFACTURERS CODE | 72794 |
| DESIGN CONTROL REFERENCE | AJ3-35ZBY |
Restrictions/Controls & Freight Information | NSN 5325-00-702-7781
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-702-7781
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
