NSN 5325-00-687-3843 40S51A0703A, 40S51A070-3A, 00-687-3843
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-687-3843 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 40S51A0703A, 40S51A070-3A, 5325-00-687-3843, 00-687-3843, 5325006873843, 006873843
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAR 1967 | 00-687-3843 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

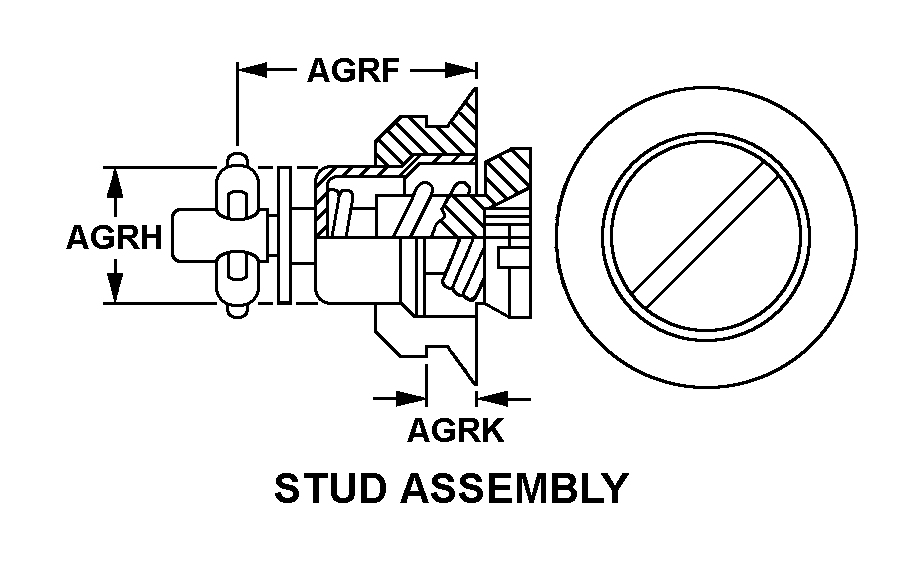

Drawings & Photos | NSN 5325-00-687-3843
Cross Reference | NSN 5325-00-687-3843
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40S51A070-3A | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-687-3843
Related Products | NSN 5325-00-687-3843
Technical Data | NSN 5325-00-687-3843
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 17 STUD HEAD |
| DIAMETER | 0.377 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.102 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 13 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.483 INCHES MINIMUM AND 0.493 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.365 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| EYELET LENGTH | 0.145 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.443 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 40S51A070-3A |
Restrictions/Controls & Freight Information | NSN 5325-00-687-3843
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
