NSN 5325-00-687-5037 HS493302, HS49330-2, 00-687-5037
Product Details | TRIM SPRING TENSION FASTENER
5325-00-687-5037 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.
Part Alternates: HS493302, HS49330-2, 5325-00-687-5037, 00-687-5037, 5325006875037, 006875037
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-687-5037 | 18517 ( FASTENER, SPRING TENSION, TRIM ) |

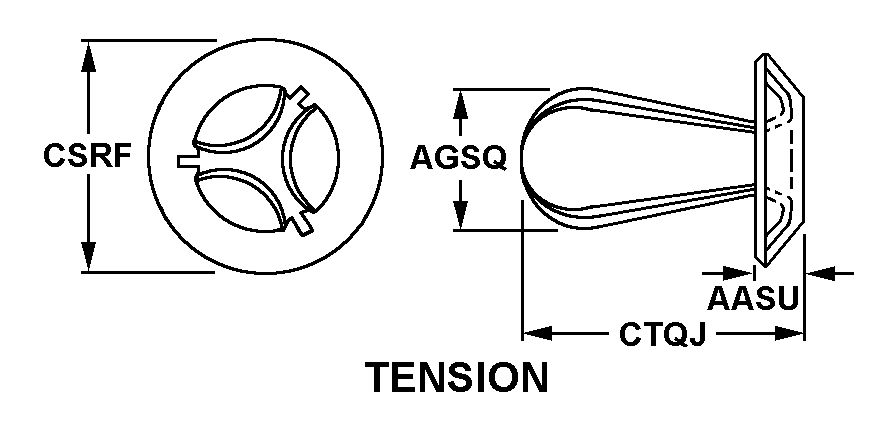

Drawings & Photos | NSN 5325-00-687-5037
Cross Reference | NSN 5325-00-687-5037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS49330-2 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-687-5037
Technical Data | NSN 5325-00-687-5037
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| FASTENER STYLE | BH2 TENSION |
| HEAD HEIGHT | 0.020 INCHES NOMINAL |
| PRONG DIAMETER | 0.175 INCHES NOMINAL |
| FASTENER OUTSIDE DIAMETER | 0.359 INCHES NOMINAL |
| FASTENER OVERALL LENGTH | 0.281 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-687-5037
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
