NSN 5325-00-680-8768 MS21209F615, MS21209F6-15, MS21209F615L

Product Details | SCREW THREAD INSERT

5325-00-680-8768 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS21209F615, MS21209F6-15, MS21209F615L, MS21209F6-15L, NAS122260, NAS1222-60, NAS12226D, NAS1222-6D, NAS1222Q6D, NAS1222-Q6D, BACS13W6CN3, 0122122000, 012-2122-000, 10702223, 107022-23, 209F60562, 209F6-0562, 35916CN, 3591-6CN, 35916CNX562, 3591-6CNX562, 4575700, 457-5700 , 69679636, 69679-6-36, 938.19.71.126 , 9381971126, 5325-00-680-8768, 00-680-8768, 5340006808768, 5325006808768 , 006808768

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-680-8768	11444 ( INSERT, SCREW THREAD )

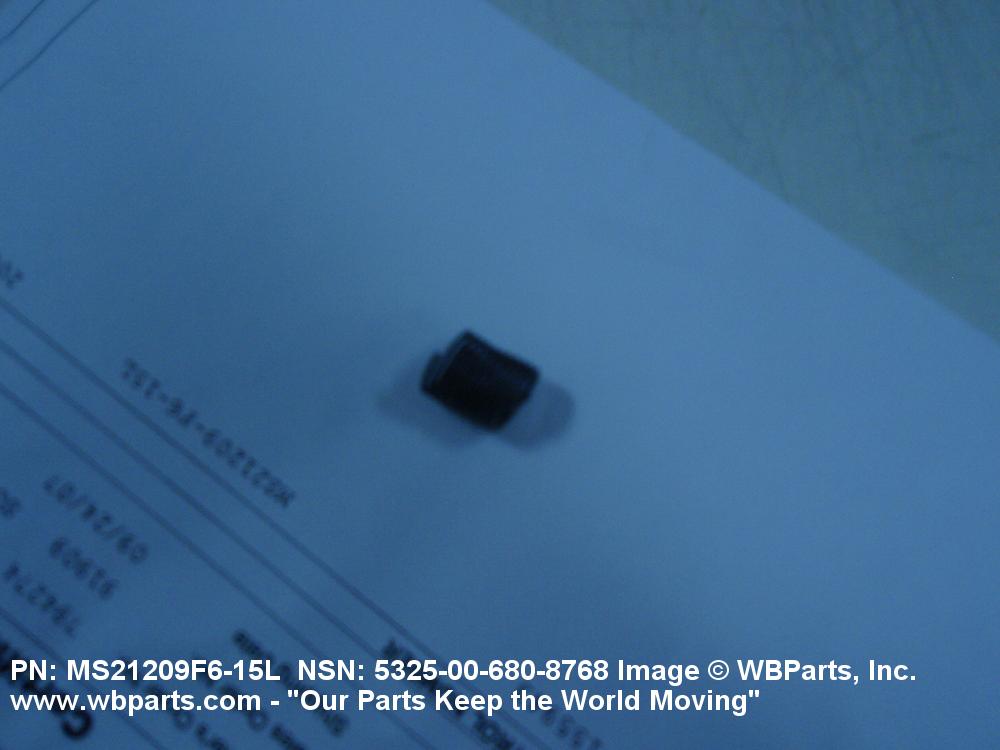

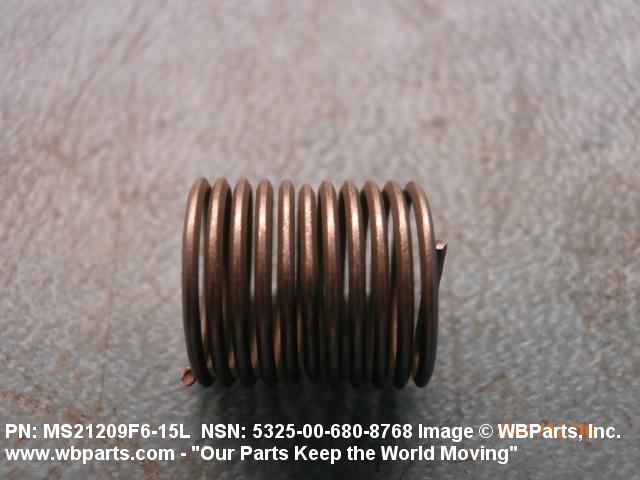

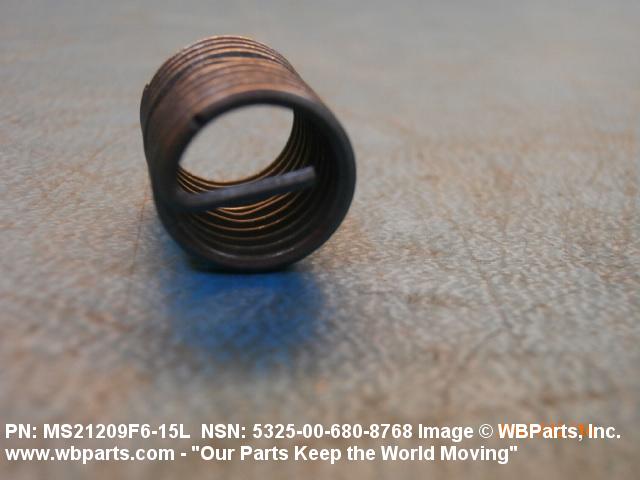

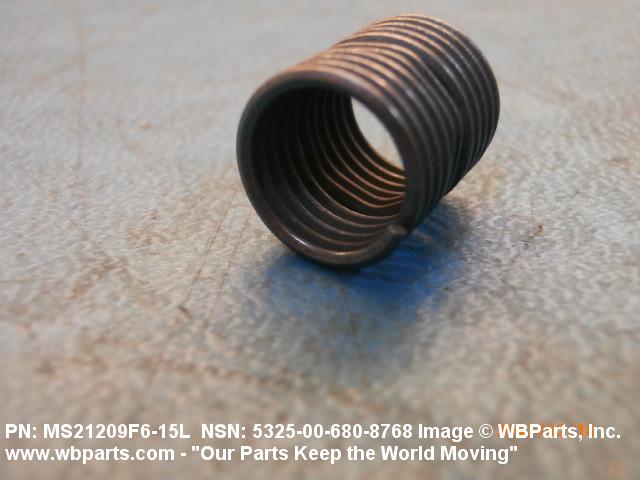

Drawings & Photos | NSN 5325-00-680-8768

Part Number	Request Date	QTY	Origin
MS21209F615	2022-01-31	8	United States
5325-00-680-8768	2020-07-199	1000	US
5325-00-680-8768	2018-12-347	1316	DIBBS
5325-00-680-8768	2018-12-340	2343	GU
5325-00-680-8768	2018-12-340	3865	GU
MS21209F615L	2017-05-131	50	US
MS21209F615L	2017-02-38	16	United States
MS21209F615	2016-12-348	1	United States
MS21209F615	2016-09-272	16	us
5325-00-680-8768	2016-06-157	14794	DIBBS
5325-00-680-8768	2015-05-147	9759	DIBBS
MS21209F615L	2015-02-33	12	United States
MS21209F615L	2015-02-33	27	United States
MS21209F615	2013-12-346	1000	US
MS21209F615L	2013-09-261	10	India
MS21209F615L	2012-06-163	500	CN
MS21209F615L	2012-01-19	250	United States
MS21209F615L	2012-01-18	250	United States
5325-00-680-8768	2012-01-05	20	United States
5325-00-680-8768	2011-07-182	4000	US
5325-00-680-8768	2011-07-182	200	US
5325-00-680-8768	2011-07-182	400	US
5325-00-680-8768	2011-06-173	5400	DIBBS
35916CN	2011-06-167	50	US
MS21209F615	2011-06-167	50	US
MS21209F615L	2010-03-74	44	United States
MS21209F615L	2010-03-70	44	US
MS21209F615	2010-02-35	226	US
MS21209F615	2010-02-34	226	US
MS21209F615L	2009-12-355	500	China
MS21209F615	2009-12-353	500	China
MS21209F615L	2009-12-353	500	China
MS21209F615L	2009-12-336	425	United States
MS21209F615L	2009-11-334	100	Italy
5325-00-680-8768	2009-06-174	30	US
MS21209F615L	2009-06-163	572	United States
5325-00-680-8768	2009-02-56	3	US
5325-00-680-8768	2008-09-270	5525	DIBBS
MS21209F615L	2008-09-259	114	United States
MS21209F615	2008-06-176	1000	US
5325-00-680-8768	2008-04-105	3011	DIBBS
5325-00-680-8768	2008-02-46	800	Taiwan

Cross Reference | NSN 5325-00-680-8768

Part Number	Cage Code	Manufacturer
012-2122-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
107022-23	37695	RAYTHEON COMPANY DBA RAYTHEON
209F6-0562	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
3591-6CN	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
3591-6CN	01566	MATHIS WELDING AND MACHINE CO INC
3591-6CNX562	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
5325006808768	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5340006808768	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
69679-6-36	73030	HAMILTON SUNDSTRAND CORPORATION
938.19.71.126	S4080	PILATUS AIRCRAFT LTD
BACS13W6CN3	81205	THE BOEING COMPANY DBA BOEING
MS21209F6-15	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21209F6-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21209F6-15L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1222-60	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1222-6D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1222-Q6D	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-680-8768

Compare

Related Products | NSN 5325-00-680-8768

5325-00-680-8833, 5325-00-680-8918, 5325-00-680-8990, 5325-00-682-0632, 5325-00-682-0734

Technical Data | NSN 5325-00-680-8768

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OR STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI/SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H1 COIL

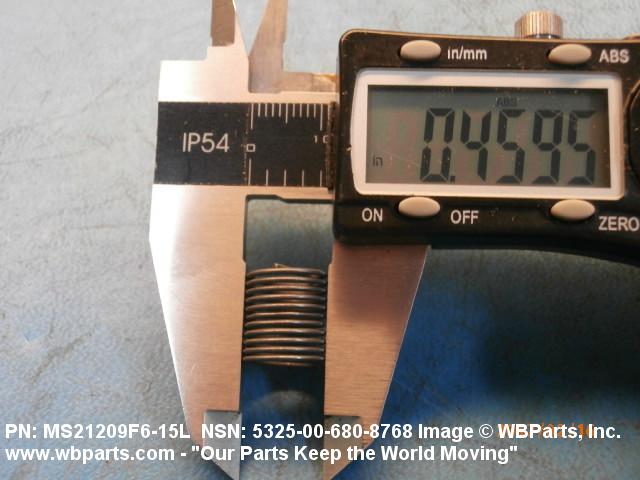

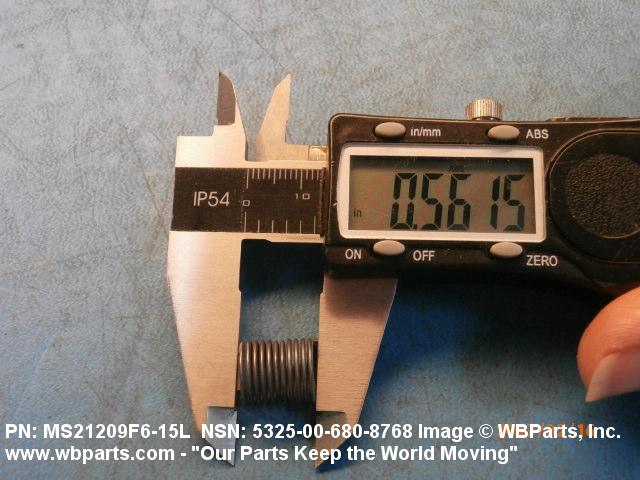

LENGTH	0.562 INCHES NOMINAL
INSERT SIZE	0.448 IN.MIN,0.468 IN.MAX
THREAD DIRECTION	RIGHT-HAND
SPECIFICATION/STANDARD DATA	81205-BACS13 MANUFACTURERS SPECIFICATION
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21209F6-15
