NSN 5325-00-680-8734 1819782, 666-900-084, 00-680-8734
Product Details | RETAINING RING
5325-00-680-8734 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 1819782, 666-900-084, 5325-00-680-8734, 00-680-8734, 5325006808734, 006808734, 666900084
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-680-8734 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-00-680-8734
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-680-8734
Technical Data | NSN 5325-00-680-8734
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE,1065-1090 |
| SURFACE TREATMENT | CADMIUM PLATED FINISH PER FED SPEC QQ-P-416,TYPE 2,CLASS 2 |
| STRENGTH RATING | 238000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

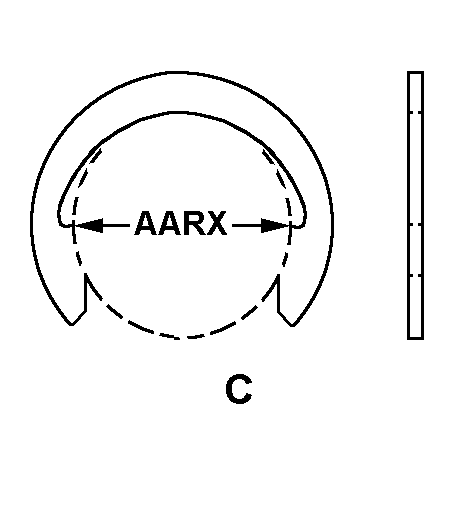

| RING STYLE | A49 C |
| INSIDE DIAMETER | 0.359 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.025 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
| SPECIAL FEATURES | RING SHALL BE CAPABLE OF BEING EXPANDED TO AN ID OF NO LESS THAN 0.395 IN. WITHOUT BREAKING OR DEFORMATION,AND SHALL RETURN TO THE ORIGNIAL FREE DIA UPON REMOVAL OF THE EXPANDING FORCE |
Restrictions/Controls & Freight Information | NSN 5325-00-680-8734
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
