NSN 5325-00-639-4829 295310, 00-639-4829, 006394829
Product Details | POSITIVE LOCK RECEPTACLE
5325-00-639-4829 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control.
Part Alternates: 295310, 5325-00-639-4829, 00-639-4829, 5325006394829, 006394829
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-639-4829 | 18015 ( RECEPTACLE, POSITIVE LOCK ) |

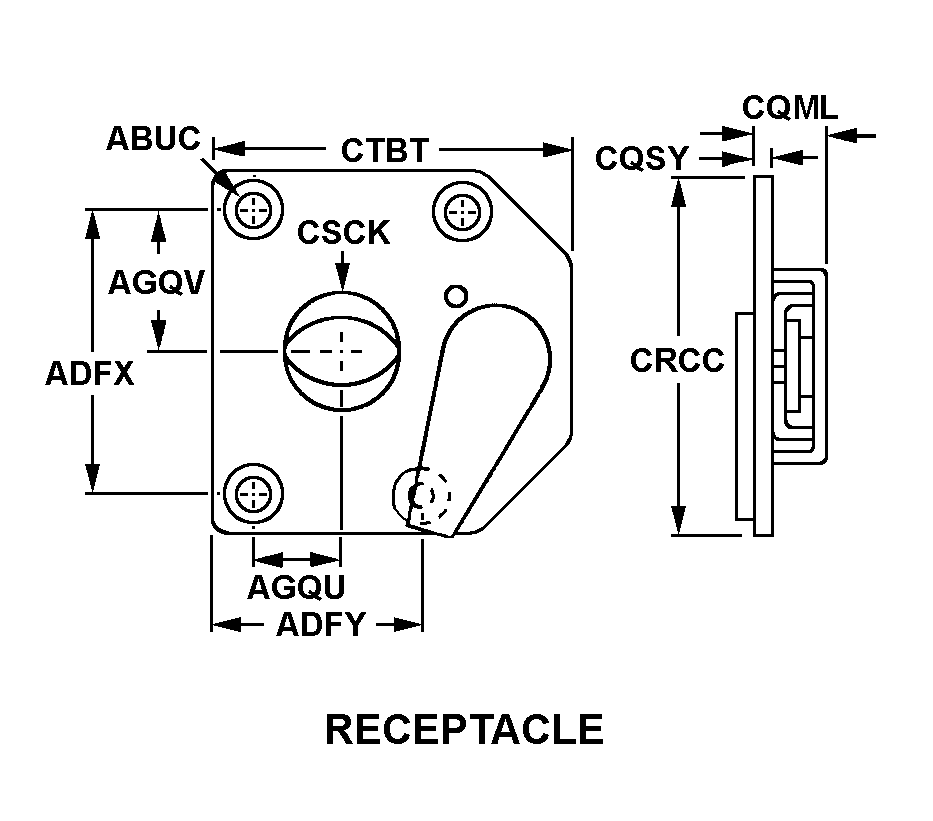

Drawings & Photos | NSN 5325-00-639-4829
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-639-4829
Related Products | NSN 5325-00-639-4829
Technical Data | NSN 5325-00-639-4829
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| POSITIVE LOCK RECEPTACLE STYLE | 11 RECEPTACLE |
| MOUNTING HOLE DIAMETER | 0.191 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.875 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 0.938 INCHES NOMINAL |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER ALONG LENGTH | 1.125 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE HEIGHT | 0.400 INCHES NOMINAL |
| RECEPTACLE MATERIAL THICKNESS | 0.091 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE WIDTH | 2.880 INCHES NOMINAL |
| RECEPTACLE HOLE DIAMETER | 0.562 INCHES NOMINAL |
| POSITIVE LOCK RECEPTACLE LENGTH | 3.310 INCHES NOMINAL |
| MOUNTING HOLE TYPE | COUNTERSUNK |
| VERTICAL LOAD RATING | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 60119 |
| DESIGN CONTROL REFERENCE | 295310 |
Restrictions/Controls & Freight Information | NSN 5325-00-639-4829
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-639-4829
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
