NSN 5325-01-612-9475 3595S3, 3595-S3 , 01-612-9475
Product Details | POSITIVE LOCK RECEPTACLE

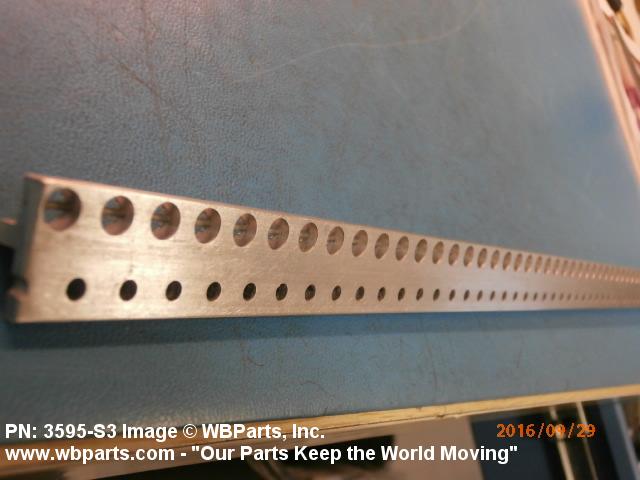

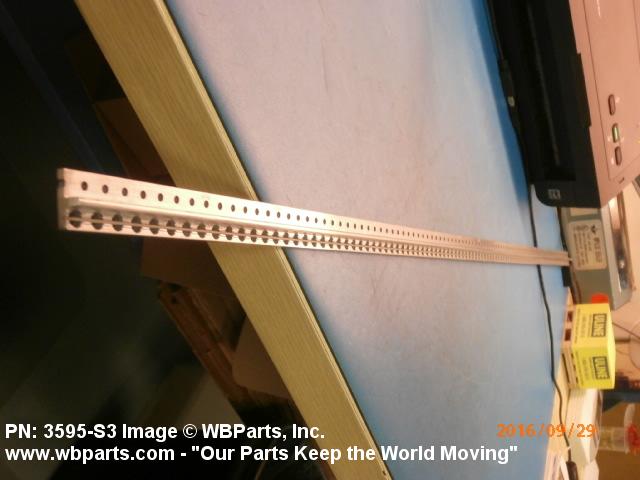

5325-01-612-9475 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control.
Part Alternates: 3595S3, 3595-S3 , 5325-01-612-9475, 01-612-9475, 5325016129475, 016129475
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2012299 | 01-612-9475 | 18015 ( RECEPTACLE, POSITIVE LOCK ) |
Drawings & Photos | NSN 5325-01-612-9475
Demand History | NSN 5325-01-612-9475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3595S3 | 2016-09-258 | 50 | United States |
| 5325-01-612-9475 | 2015-01-29 | 11 | DIBBS |
| 5325-01-612-9475 | 2013-06-161 | 3 | DIBBS |
Cross Reference | NSN 5325-01-612-9475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3595-S3 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-612-9475
Related Products | NSN 5325-01-612-9475
Technical Data | NSN 5325-01-612-9475
| Characteristic | Specifications |
|---|---|
| III MATERIAL | STEEL COMP 316 LOCKSPRING |
| POSITIVE LOCK RECEPTACLE STYLE | RECEPTACLE |

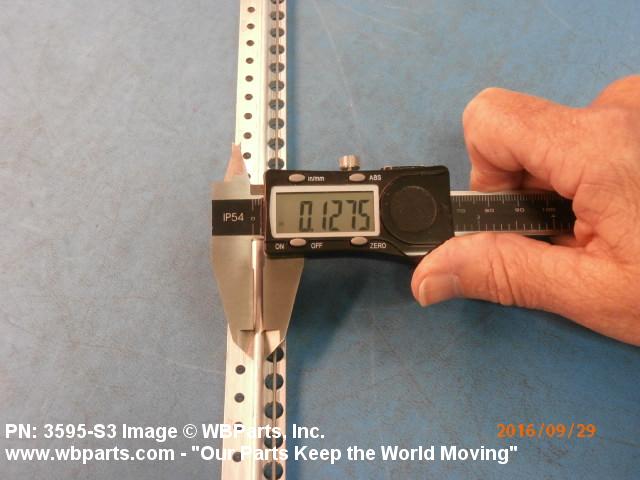

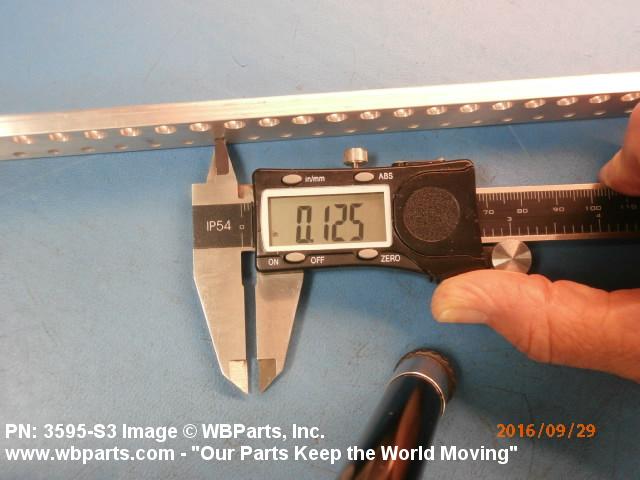

| MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND |
| DISTANCE FROM STUD HOLE CENTER TO MOUNTING HOLE CENTER | 0.183 INCHES MINIMUM AND |

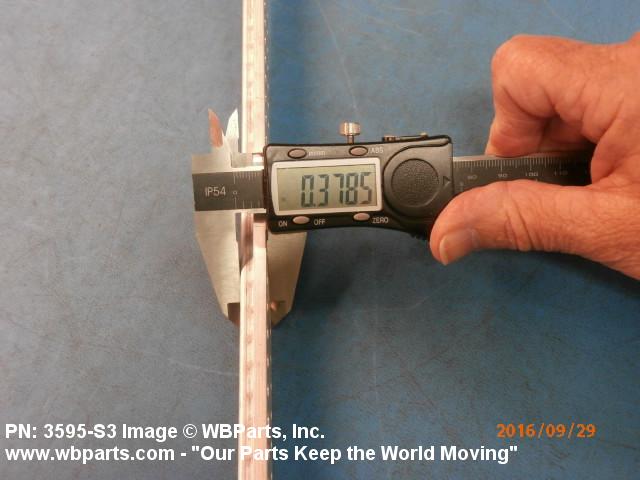

| POSITIVE LOCK RECEPTACLE HEIGHT | 0.370 INCHES MINIMUM AND |
| RECEPTACLE MATERIAL THICKNESS | 0.120 INCHES MINIMUM AND |
| POSITIVE LOCK RECEPTACLE WIDTH | 0.781 INCHES NOMINAL |

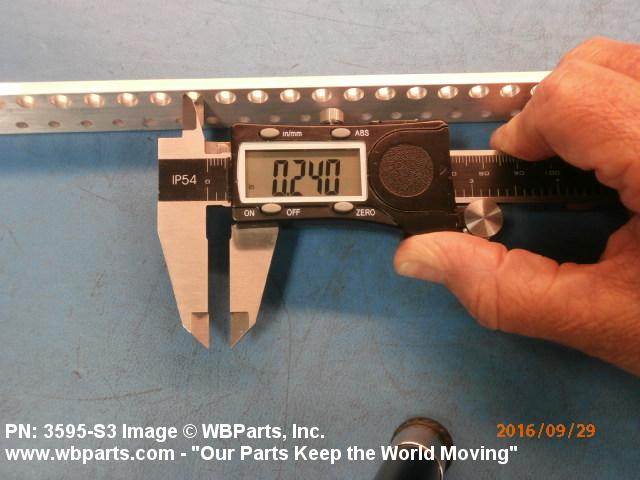

| RECEPTACLE HOLE DIAMETER | 0.240 INCHES MINIMUM AND |
| POSITIVE LOCK RECEPTACLE LENGTH | 36.0 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-612-9475
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-612-9475
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
