NSN 5325-00-638-8088 A242AR , BACR11Y3C, BACR11Y3CD
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-638-8088 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: A242AR , BACR11Y3C, BACR11Y3CD , C 3747 278 -B , C3747278B, HE12800280104, HE128-0028-0104 , S100351, S10035-1 , Z00.N7736132662 , Z00N7736132662, FON20752301, FON20-7523-01 , GR521A12C , 1019744001, 1019744-001 , 1029AS261 , 1280016001, 128-0016-001 , 212120, 212-120 , 21212S, 212-12S , 214A8331, 214A833-1 , 234884 , 3862641, 386264-1 , 70-100320-1 , 7S234884 , 8528972, 5325-00-638-8088, 00-638-8088, 5325006388088, 006388088, 701003201
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-8088 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

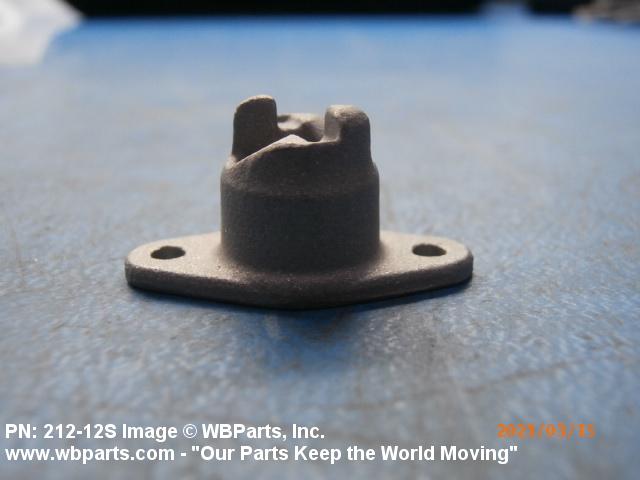

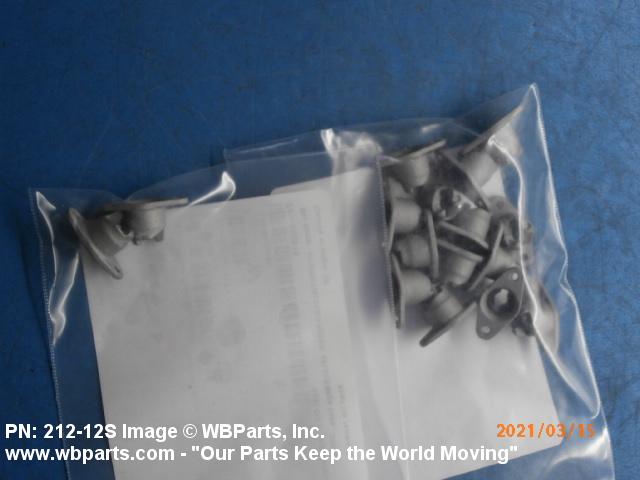

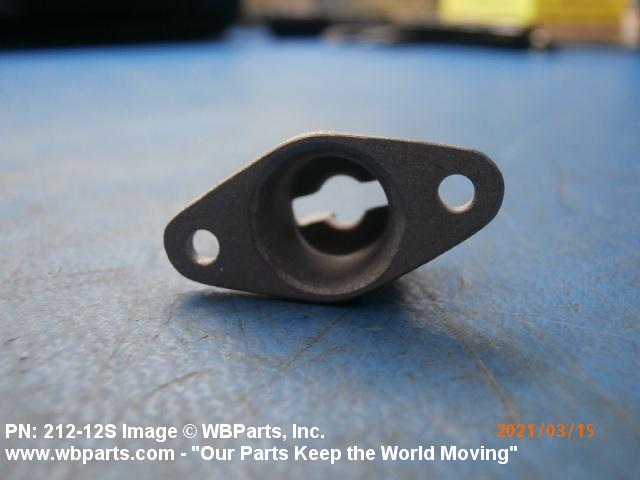

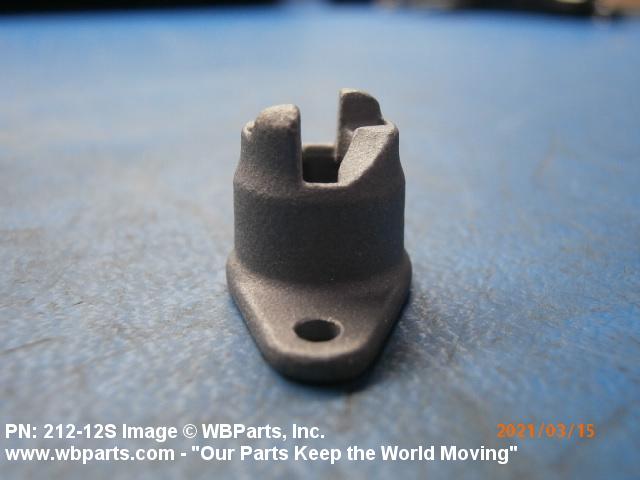

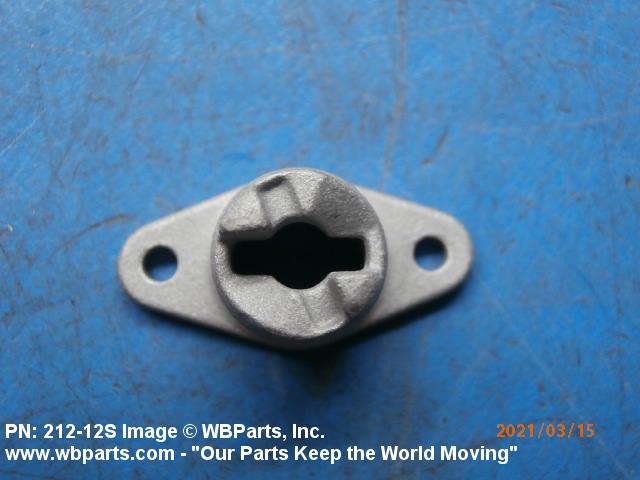

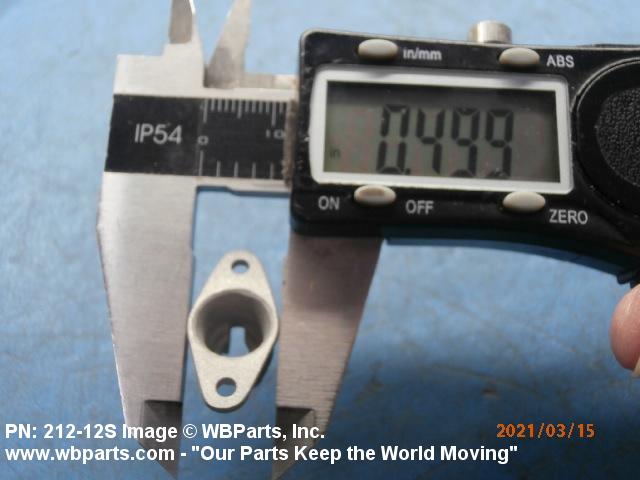

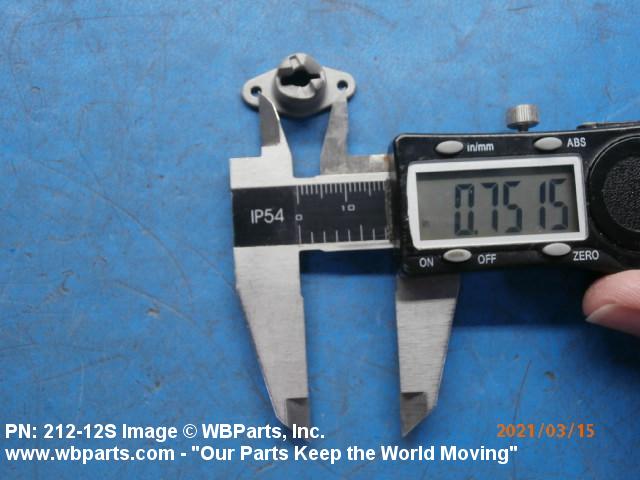

Drawings & Photos | NSN 5325-00-638-8088
Demand History | NSN 5325-00-638-8088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21212S | 2024-04-117 | 100 | United States |
| 21212S | 2023-02-46 | 572 | United States |
| 04052333001588 | 2023-01-16 | 851 | DIBBS |
| 04052333006439 | 2023-01-16 | 851 | DIBBS |
| 212-12S | 2023-01-16 | 851 | DIBBS |
| 234884 | 2023-01-16 | 851 | DIBBS |
| A242AR | 2023-01-16 | 851 | DIBBS |
| C 3747 278 -B | 2023-01-16 | 851 | DIBBS |
| FON20-7523-01 | 2023-01-16 | 851 | DIBBS |
| 04052333001588 | 2022-10-276 | 2401 | DIBBS |
| 04052333006439 | 2022-10-276 | 2401 | DIBBS |
| 212-12S | 2022-10-276 | 2401 | DIBBS |
| 234884 | 2022-10-276 | 2401 | DIBBS |
| A242AR | 2022-10-276 | 2401 | DIBBS |
| C 3747 278 -B | 2022-10-276 | 2401 | DIBBS |
| FON20-7523-01 | 2022-10-276 | 2401 | DIBBS |
| 04052333001588 | 2022-07-185 | 4447 | DIBBS |
| 04052333006439 | 2022-07-185 | 4447 | DIBBS |
| 212-12S | 2022-07-185 | 4447 | DIBBS |
| 234884 | 2022-07-185 | 4447 | DIBBS |
| A242AR | 2022-07-185 | 4447 | DIBBS |
| C 3747 278 -B | 2022-07-185 | 4447 | DIBBS |
| FON20-7523-01 | 2022-07-185 | 4447 | DIBBS |
| 04052333001588 | 2022-02-55 | 2287 | DIBBS |
| 04052333006439 | 2022-02-55 | 2287 | DIBBS |
| 212-12S | 2022-02-55 | 2287 | DIBBS |
| 234884 | 2022-02-55 | 2287 | DIBBS |
| A242AR | 2022-02-55 | 2287 | DIBBS |
| C 3747 278 -B | 2022-02-55 | 2287 | DIBBS |
| FON20-7523-01 | 2022-02-55 | 2287 | DIBBS |
| 04052333001588 | 2021-11-326 | 152 | DIBBS |
| 04052333006439 | 2021-11-326 | 152 | DIBBS |
| 212-12S | 2021-11-326 | 152 | DIBBS |
| 234884 | 2021-11-326 | 152 | DIBBS |
| A242AR | 2021-11-326 | 152 | DIBBS |
| C 3747 278 -B | 2021-11-326 | 152 | DIBBS |
| FON20-7523-01 | 2021-11-326 | 152 | DIBBS |
| 21212S | 2021-03-60 | 4 | United States |
| 21212S | 2021-02-53 | 16 | United States |
| BACR11Y3CD | 2021-02-53 | 16 | United States |
| 21212S | 2021-02-53 | 16 | United States |
| BACR11Y3CD | 2021-02-53 | 16 | United States |
| 21212S | 2021-01-22 | 4 | United States |
| S100351 | 2020-09-254 | 16 | United States |
| 5325-00-638-8088 | 2020-09-253 | 16 | United States |
| 21212S | 2020-05-125 | 60 | us |
| Z00N7736132662 | 2018-04-117 | 200 | SI |
| 5325-00-638-8088 | 2018-03-72 | 12 | US |
| 5325-00-638-8088 | 2018-03-72 | 12 | US |
| 5325-00-638-8088 | 2016-08-244 | 1491 | DIBBS |
| 5325-00-638-8088 | 2016-05-144 | 2 | United States |
| 5325-00-638-8088 | 2016-03-84 | 1 | DIBBS-RFPs |
| 5325-00-638-8088 | 2016-02-46 | 1968 | DIBBS |
| 5325-00-638-8088 | 2015-07-182 | 1183 | DIBBS |
| 212-12S | 2015-06-176 | 600 | Turkey |
| 21212S | 2015-01-09 | 20 | us |
| 212-12S | 2014-11-324 | 150 | Turkey |
| 5325-00-638-8088 | 2010-10-277 | 15 | US |
| 5325-00-638-8088 | 2009-06-163 | 450 | US |
| 21212S | 2009-05-139 | 400 | United States |
| 21212S | 2009-05-135 | 215 | United States |
| 5325-00-638-8088 | 2009-02-48 | 40 | United States |
| 21212S | 2008-12-337 | 100 | United States |
| 5325-00-638-8088 | 2008-07-197 | 36 | US |
| 5325-00-638-8088 | 2008-05-133 | 80 | IL |
Cross Reference | NSN 5325-00-638-8088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1019744-001 | 05037 | ANACOMP, INC. |
| 1019744-001 | 0HBH2 | LEXEL IMAGING SYSTEMS, INC. |
| 1029AS261 | 1QYC9 | ATLANTIC FASTENERS CO., INC. DBA COLLARS AND COUPLINGS |
| 1029AS261 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 128-0016-001 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 212-120 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 212-12S | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 212-12S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 212-12S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 214A833-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 234884 | H0212 | KONINKLIJKE FABRIEK INVENTUM B.V. |
| 386264-1 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| 70-100320-1 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 7S234884 | H0212 | KONINKLIJKE FABRIEK INVENTUM B.V. |
| 8528972 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| BACR11Y3C | 81205 | THE BOEING COMPANY DBA BOEING |
| BACR11Y3CD | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| C 3747 278 -B | S3092 | RHEINMETALL AIR DEFENCE AG |
| FON20-7523-01 | H1822 | FOKKER AEROSTRUCTURES B.V. |
| GR521A12C | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HE128-0028-0104 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| S10035-1 | 05395 | L-3 COMMUNICATIONS CORPORATION DBA MISSION INTEGRATION DIVISION |
| Z00.N7736132662 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-638-8088
Related Products | NSN 5325-00-638-8088
Technical Data | NSN 5325-00-638-8088
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| TURNLOCK RECEPTACLE STYLE | 9 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM |

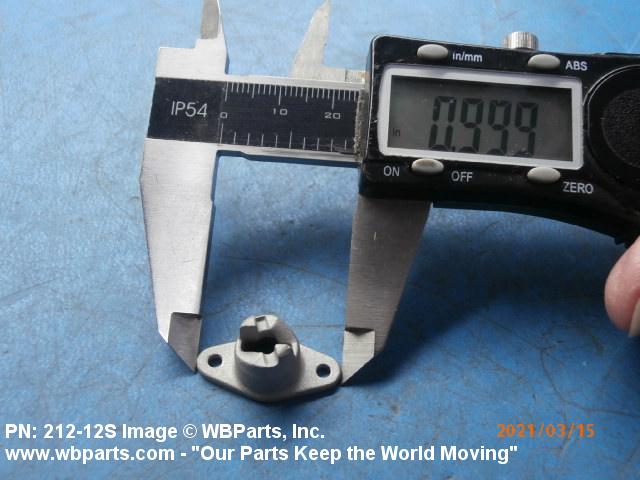

| RECEPTACLE OVERALL LENGTH | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |

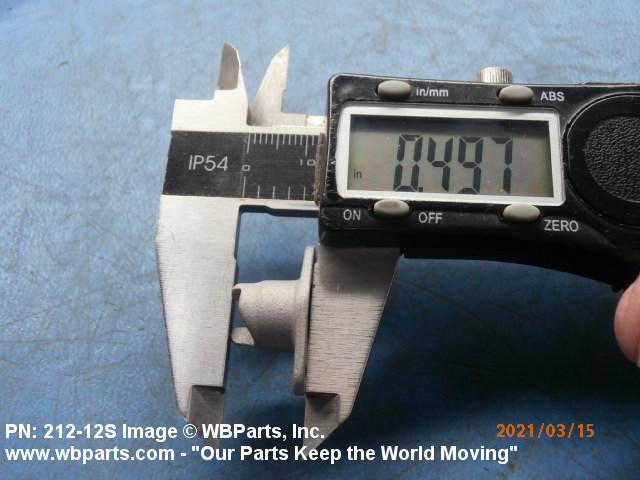

| RECEPTACLE HEIGHT | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| RECEPTACLE WIDTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |

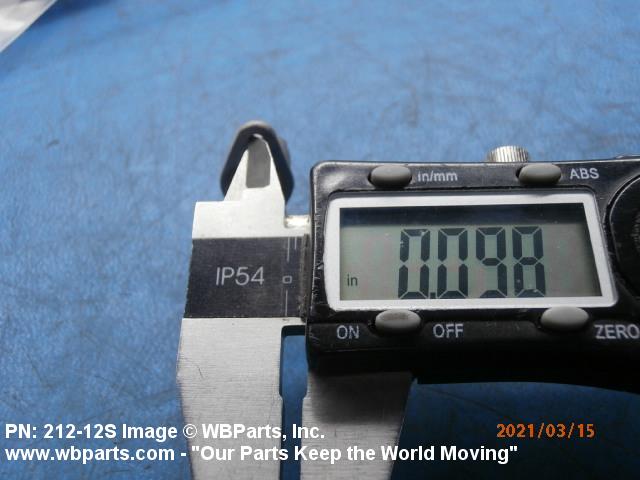

| TURNLOCK MOUNTING HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR RED |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 212-12S |
Restrictions/Controls & Freight Information | NSN 5325-00-638-8088
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-638-8088
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
