Product Details | TURNLOCK FASTENER EYELET

5325-00-616-4791 A metallic item designed to be inserted into a preformed hole to guide and retain a STUD, TURNLOCK FASTENER. Excludes EYELET, METALLIC.

Part Alternates: 40G16070, 40G16-070, 5325-00-616-4791, 00-616-4791, 5325006164791, 006164791

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-616-4791

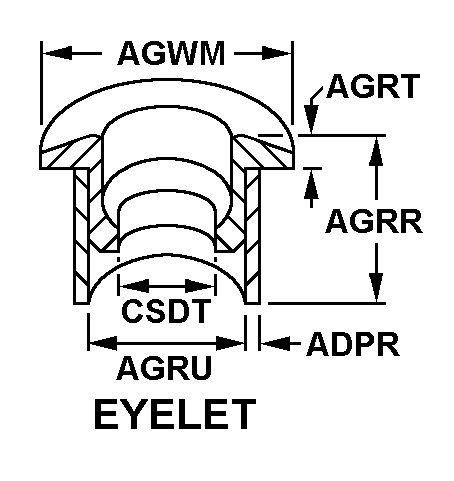

Drawings & Photos | NSN 5325-00-616-4791


Cross Reference | NSN 5325-00-616-4791

Part Number Cage Code Manufacturer
40G16-070 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-616-4791

Technical Data | NSN 5325-00-616-4791

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL
TURNLOCK EYELET STYLE 12 EYELET
BODY THICKNESS 0.010 INCHES NOMINAL
EYELET HEIGHT 0.188 INCHES NOMINAL
LARGE FLANGE THICKNESS 0.047 INCHES NOMINAL
LARGEST INSIDE DIAMETER 0.475 INCHES MINIMUM AND 0.485 INCHES MAXIMUM
LARGEST OUTSIDE DIAMETER 0.625 INCHES NOMINAL
EYELET INSIDE DIAMETER 0.354 INCHES MINIMUM AND 0.358 INCHES MAXIMUM
MANUFACTURERS CODE 71286
DESIGN CONTROL REFERENCE 40G16-070

Restrictions/Controls & Freight Information | NSN 5325-00-616-4791

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 094533 EYELETS OR EYELET HOOKS NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-616-4791

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
