NSN 5325-00-599-9237 22201 28005, 2220128005, 244165C
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-599-9237 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 22201 28005, 2220128005, 244165C, 244-165C, 24416SC, 244-16SC, 3D01103C2 , 5325-00-599-9237, 00-599-9237, 5325005999237, 005999237
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-599-9237 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

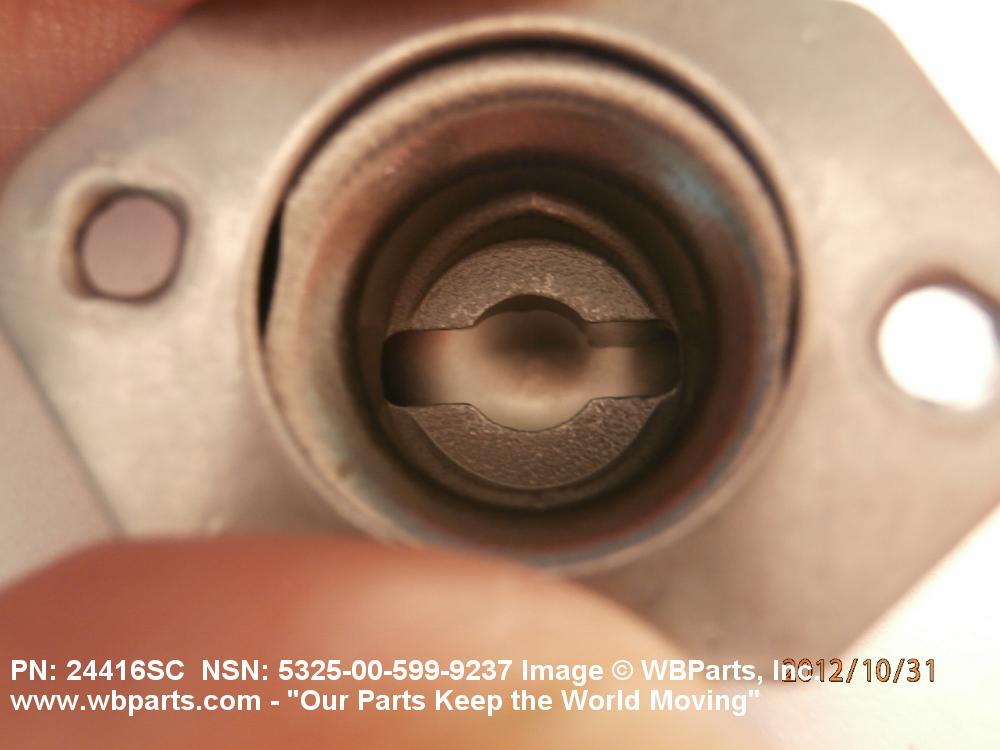

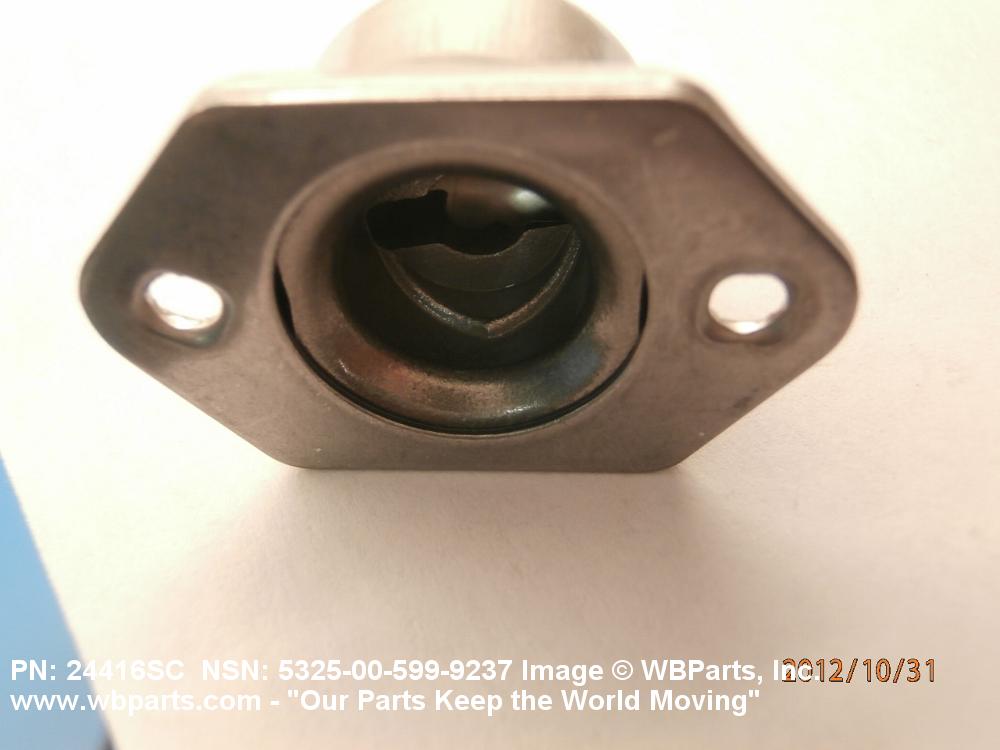

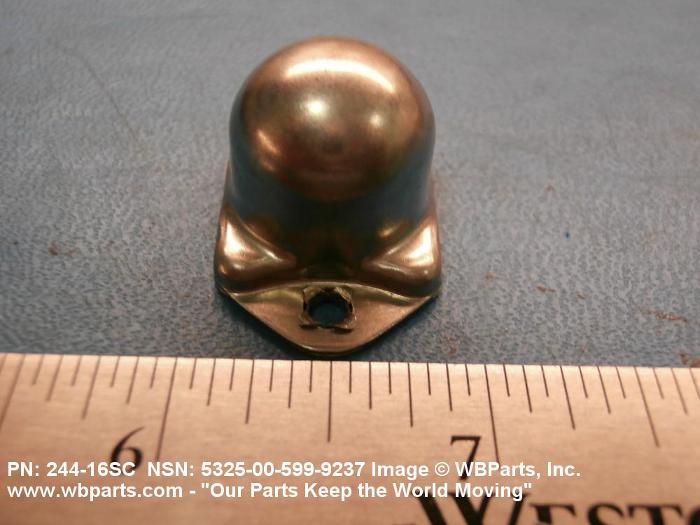

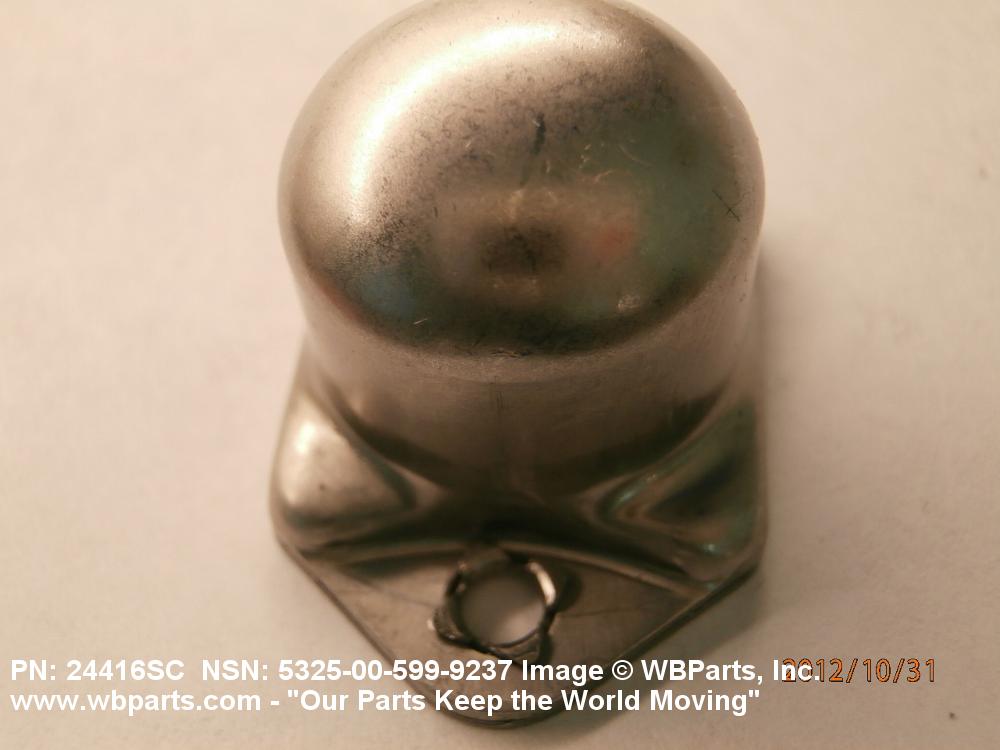

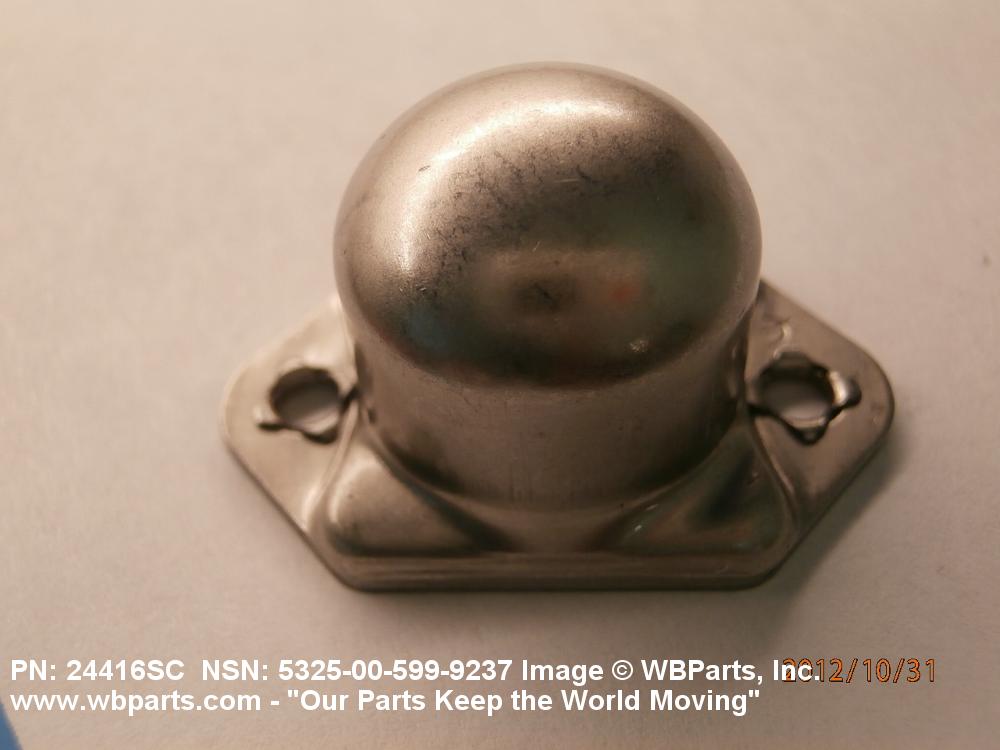

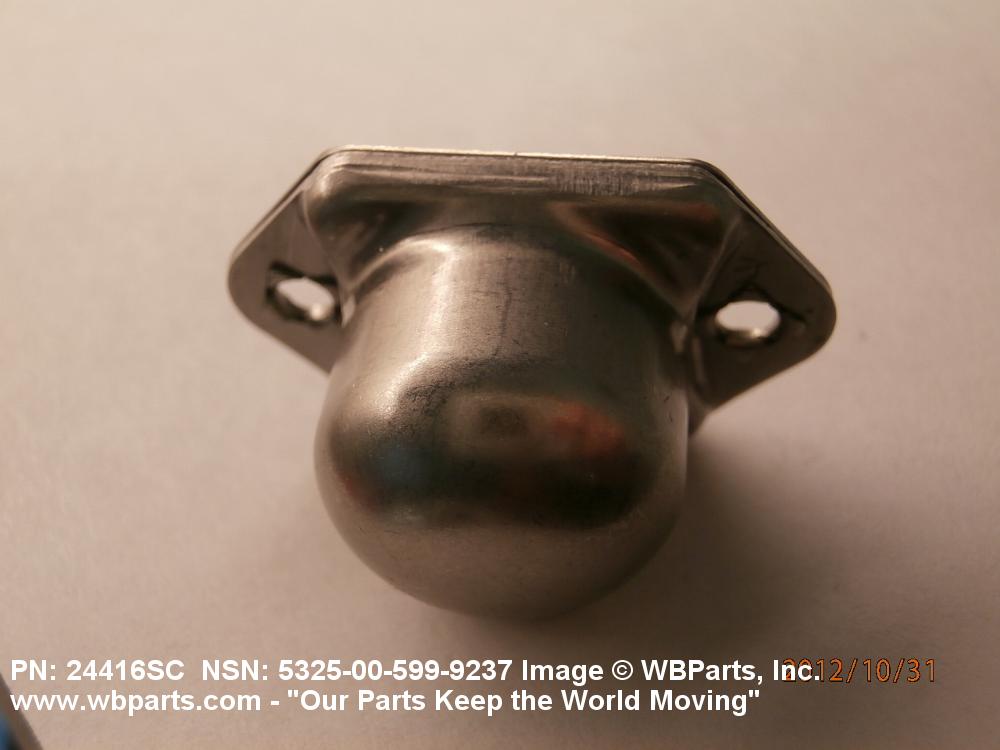

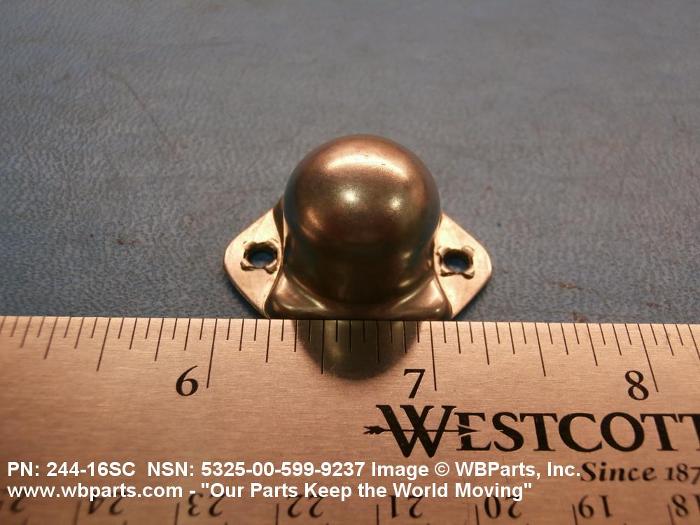

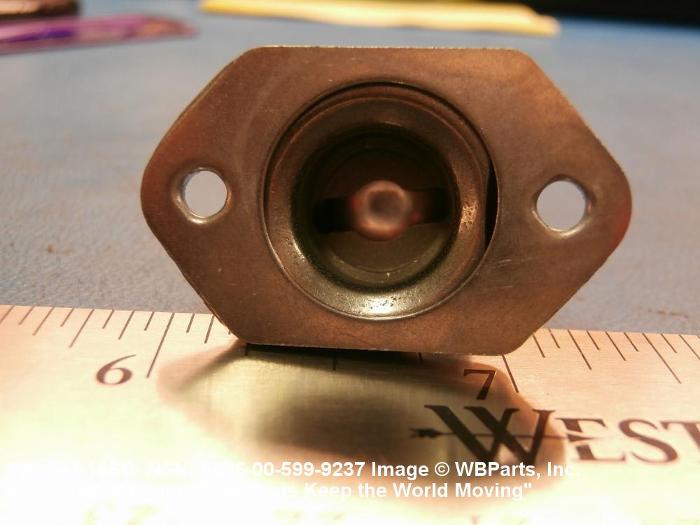

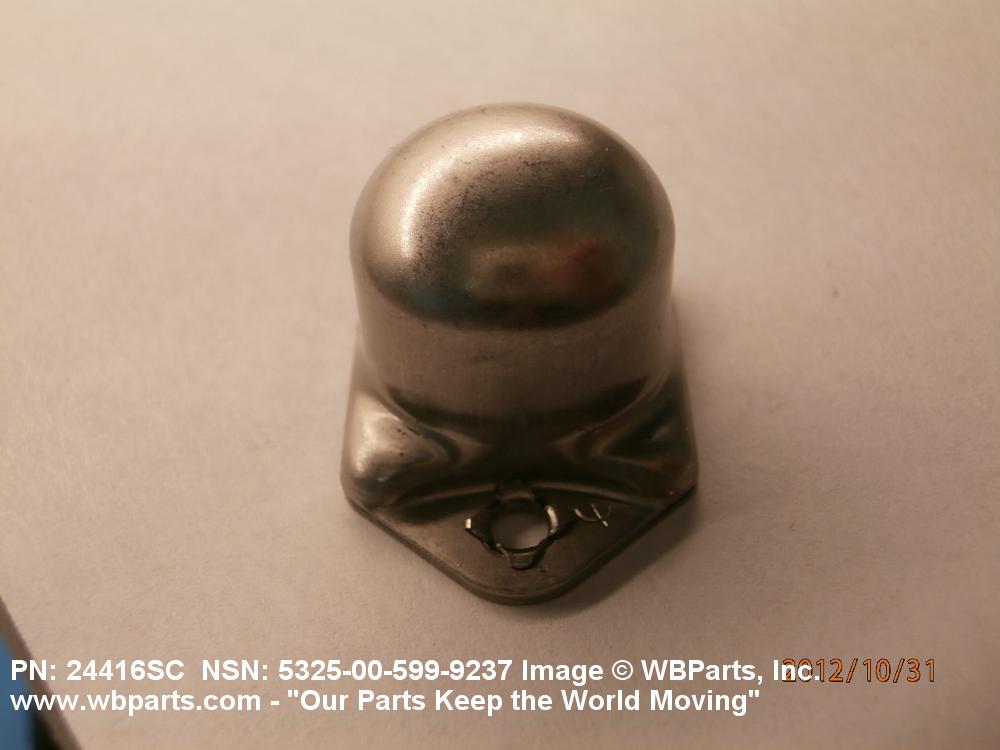

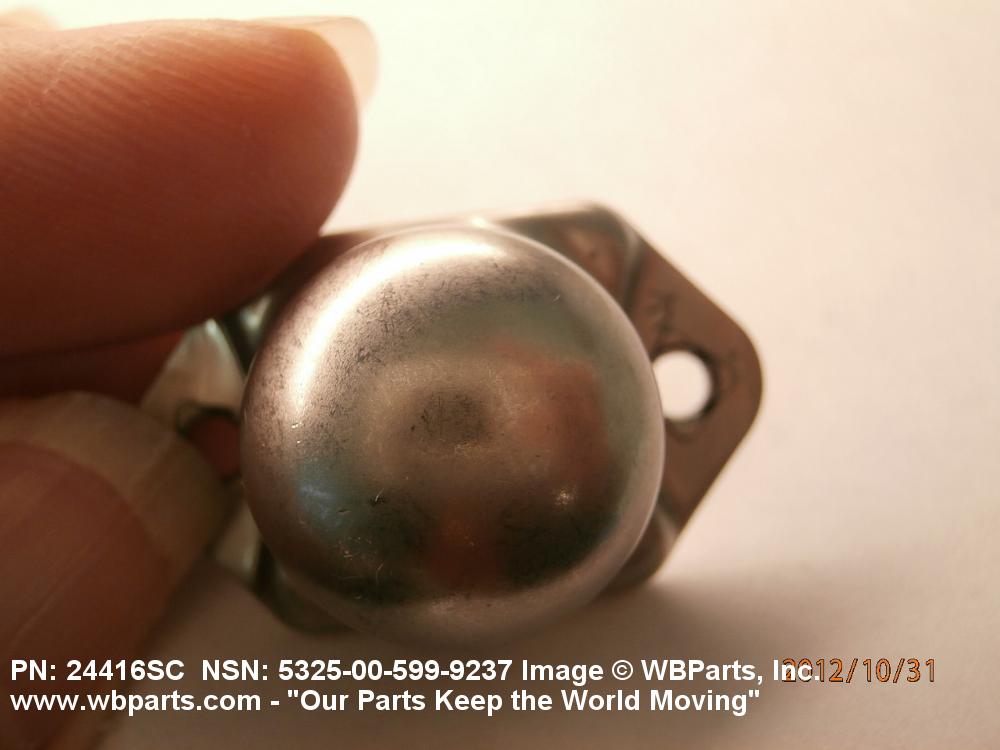

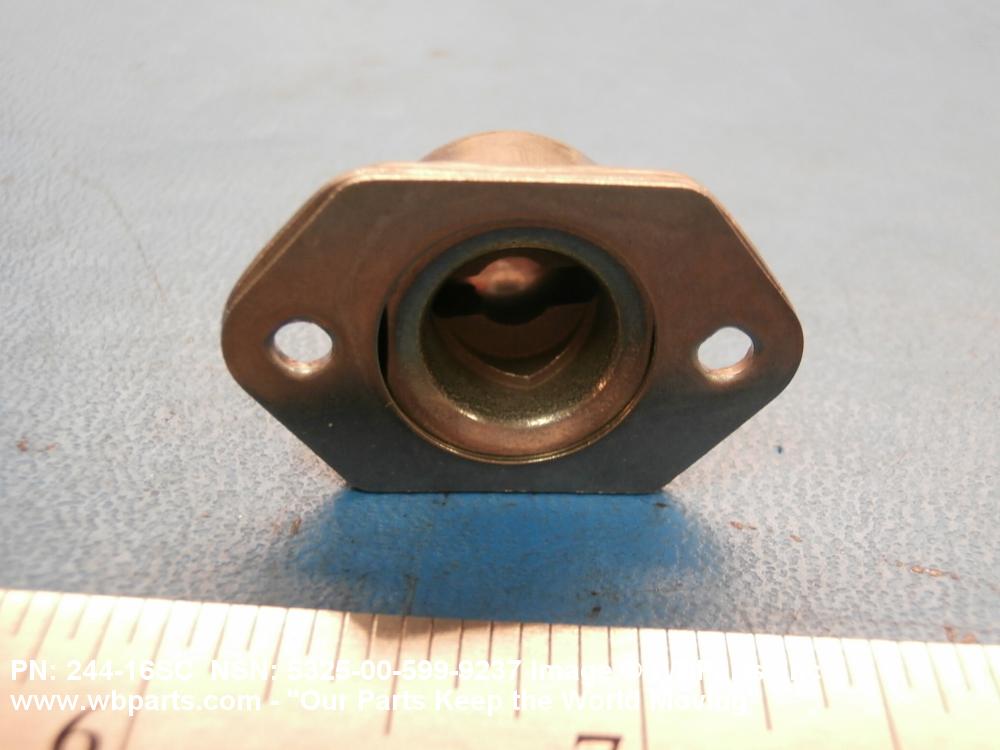

Drawings & Photos | NSN 5325-00-599-9237
Demand History | NSN 5325-00-599-9237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 244-165C | 2020-03-70 | 1250 | DIBBS |
| 244-16SC | 2020-03-70 | 1250 | DIBBS |
| 3D01103C2 | 2020-03-70 | 1250 | DIBBS |
| 5325-00-599-9237 | 2017-08-220 | 1076 | DIBBS |
| 5325-00-599-9237 | 2015-06-172 | 1026 | DIBBS |
| 5325-00-599-9237 | 2014-11-306 | 583 | DIBBS |
| 5325-00-599-9237 | 2014-10-288 | 30 | CO |
| 24416SC | 2013-03-71 | 532 | United States |
| 24416SC | 2012-10-300 | 122 | United States |
| 24416SC | 2012-10-296 | 12 | United States |
| 24416SC | 2012-10-296 | 134 | United States |
| 5325-00-599-9237 | 2012-08-233 | 484 | DIBBS |
| 24416SC | 2011-07-201 | 12 | US |
| 24416SC | 2010-01-26 | 53 | United States |
| 5325-00-599-9237 | 2010-01-26 | 53 | United States |
| 5325-00-599-9237 | 2008-12-340 | 32 | US |
| 24416SC | 2007-10-303 | 75 | US |
Cross Reference | NSN 5325-00-599-9237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22201 28005 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 244-165C | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 244-16SC | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 244-16SC | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 244-16SC | K1678 | FAIRCHILD FASTENERS UK LTD |
| 3D01103C2 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-599-9237
Related Products | NSN 5325-00-599-9237
Technical Data | NSN 5325-00-599-9237
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TURNLOCK RECEPTACLE STYLE | 10 FLOATING |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.097 INCHES MINIMUM AND 1.003 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 1.370 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.750 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.844 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| FEATURES PROVIDED | PROTECTIVE CAP |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 244-16SC |
