NSN 5325-00-561-7773 G23090739, G230907-39, WL982914420
Product Details | TURNLOCK FASTENER STUD
5325-00-561-7773 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: G23090739, G230907-39, WL982914420, 8516251, 5325-00-561-7773, 00-561-7773, 5325005617773, 005617773
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-561-7773 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-561-7773
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-561-7773
Technical Data | NSN 5325-00-561-7773
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

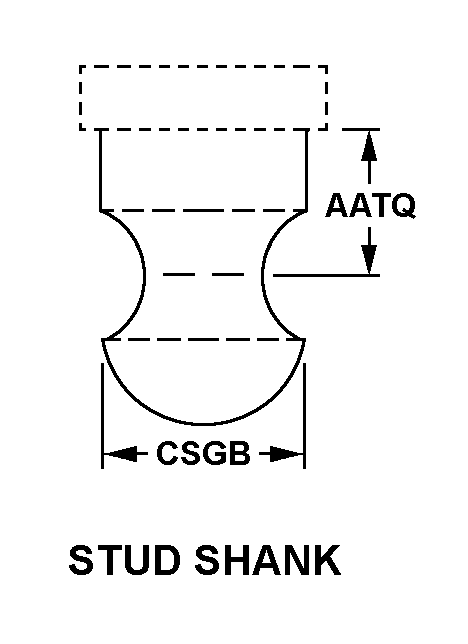

| TURNLOCK STUD SHANK STYLE | 7 STUD SHANK |
| GRIP LENGTH | 0.670 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.312 INCHES NOMINAL |

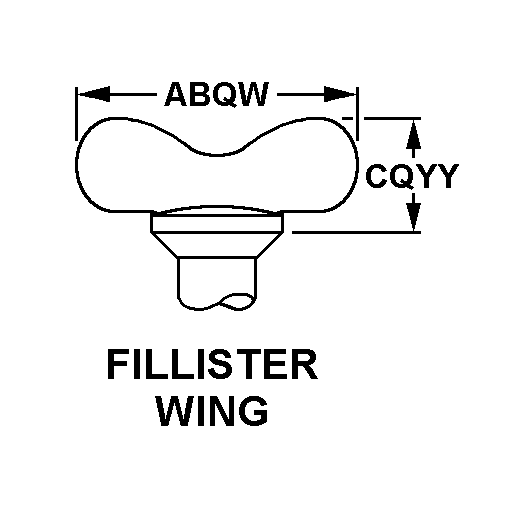

| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |
| HEAD LENGTH | 2.000 INCHES NOMINAL |
| STUD HEAD HEIGHT | 1.000 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.411 INCHES MINIMUM AND 0.420 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-561-7773
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
