NSN 5325-00-544-4504 P559100401, P5591-004-01, 5S16

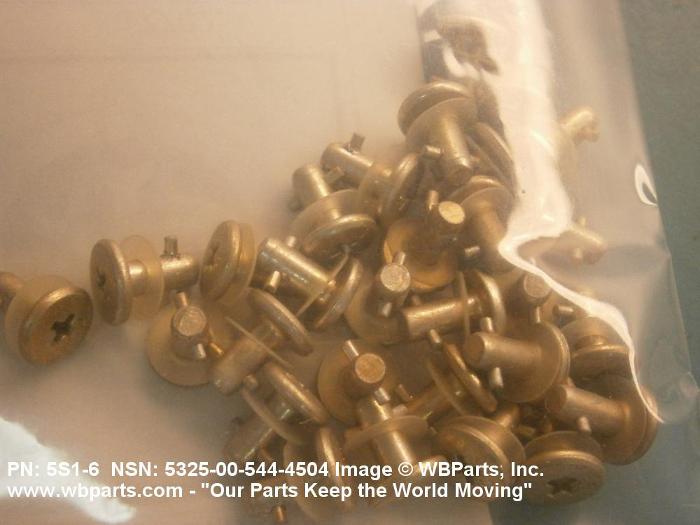

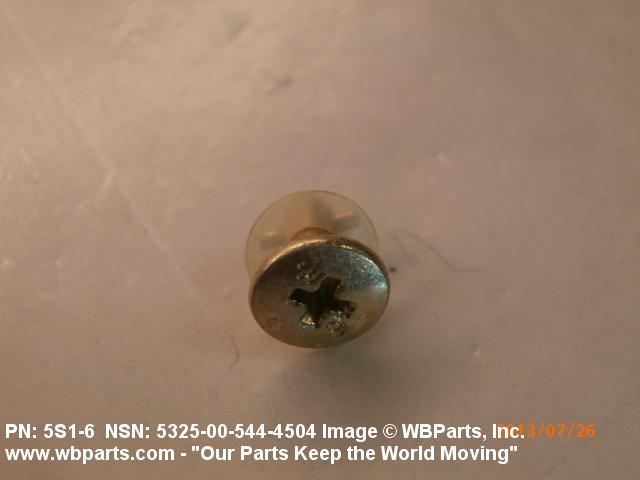

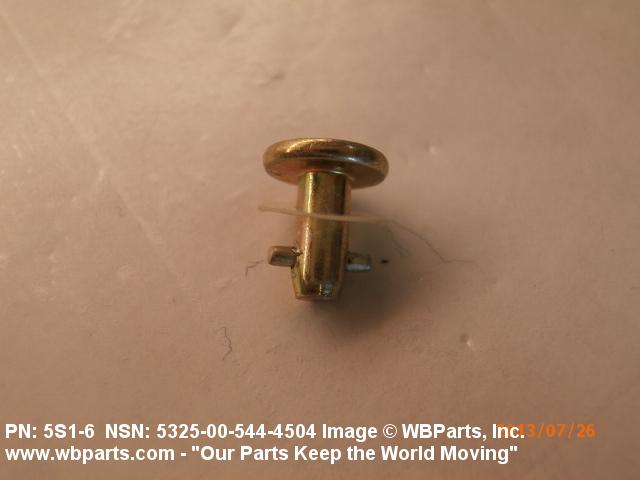

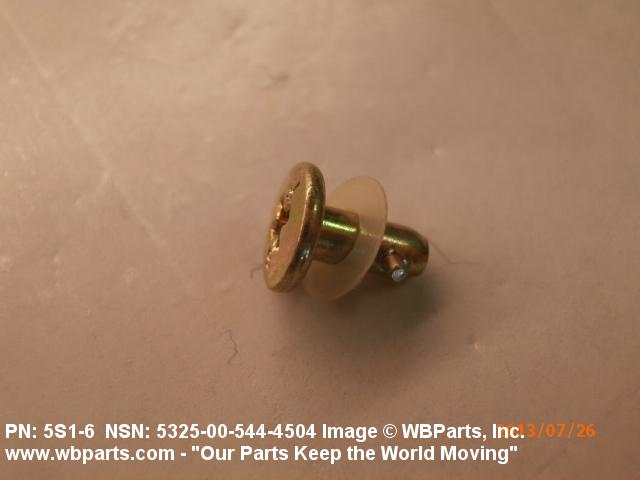

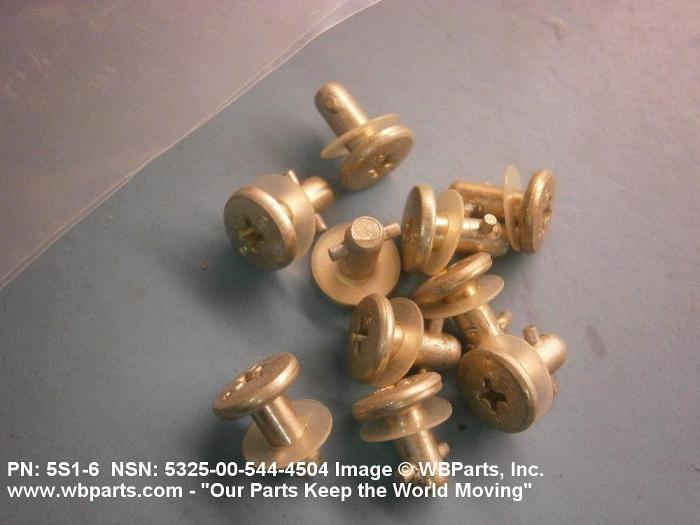

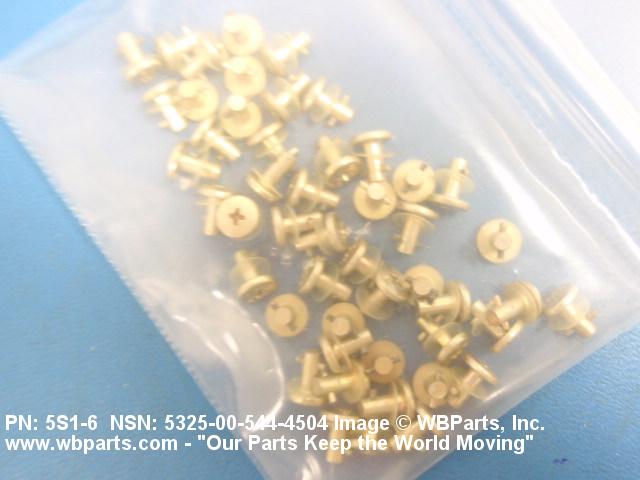

Product Details | TURNLOCK FASTENER STUD
5325-00-544-4504 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: P559100401, P5591-004-01, 5S16, 5S1-6, 9144221, 1072326, 107232-6, 5325-00-544-4504, 00-544-4504, 5325005444504, 005444504
