NSN 5325-00-500-1602 MS51830A201L, NAS1394CA3L, NAS1394CA3LS

Product Details | SCREW THREAD INSERT

5325-00-500-1602 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51830A201L, NAS1394CA3L, NAS1394CA3LS, KNL1032JT, 5325-00-500-1602, 00-500-1602, 5325005001602, 005001602

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 JUL 1974	00-500-1602	11444 ( INSERT, SCREW THREAD )

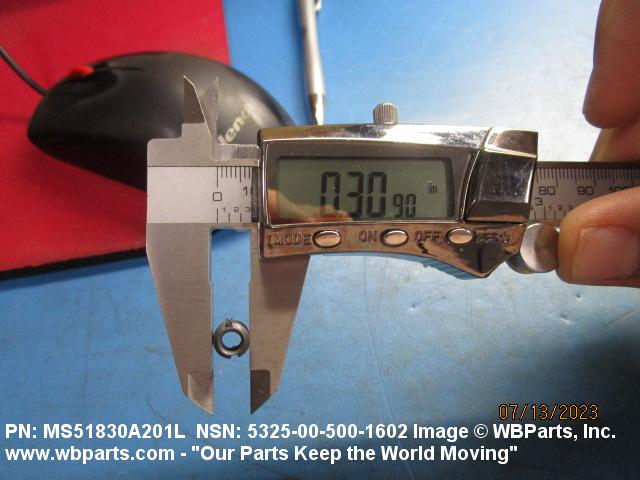

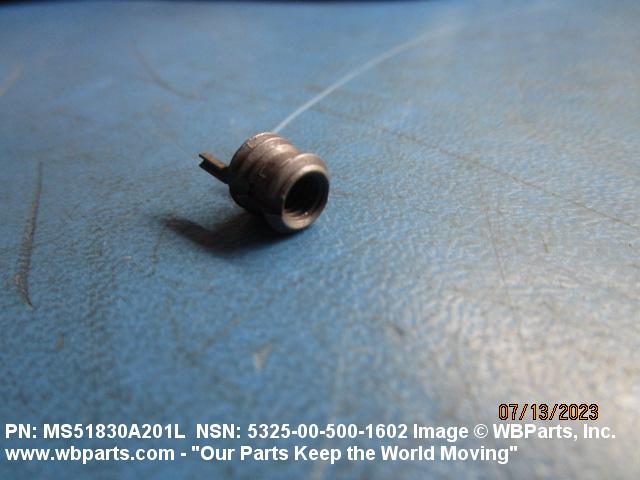

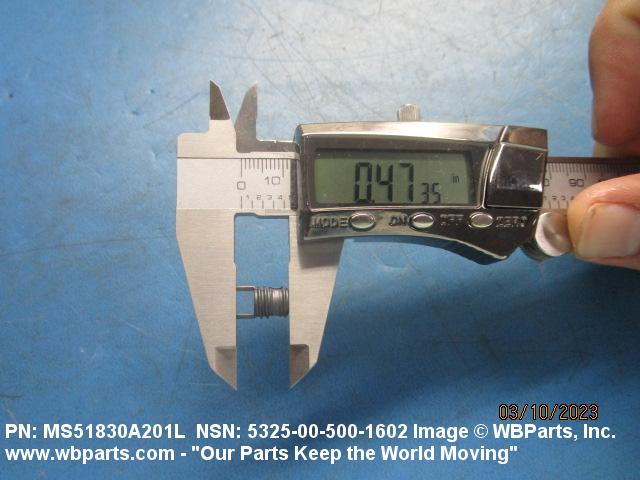

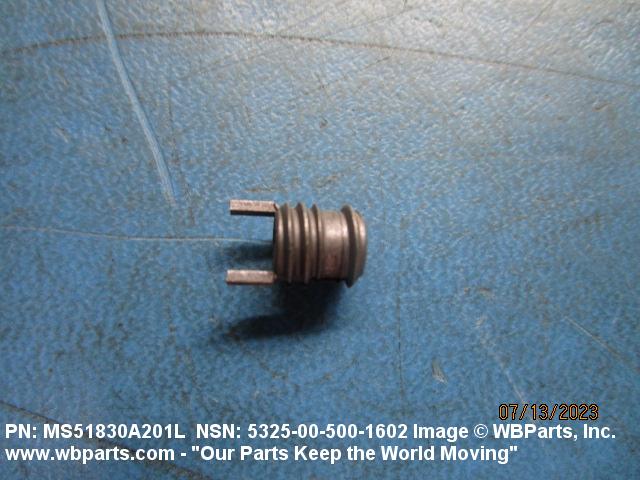

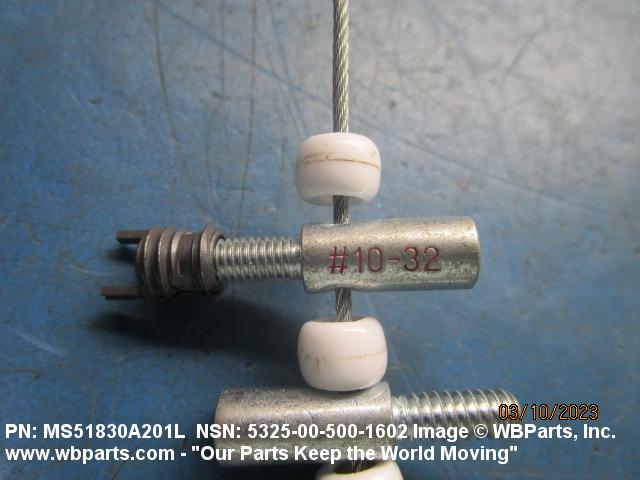

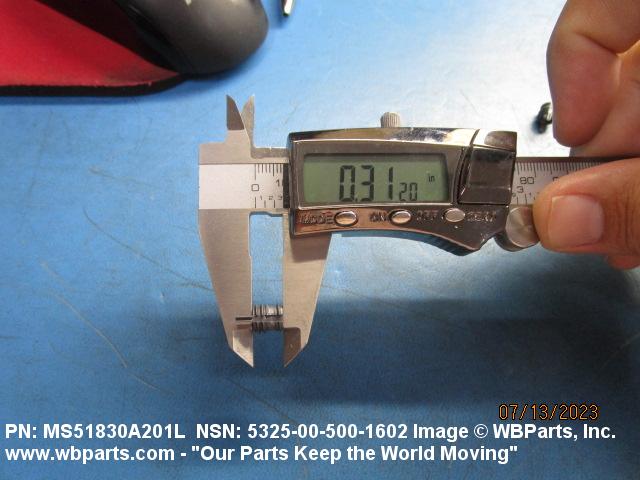

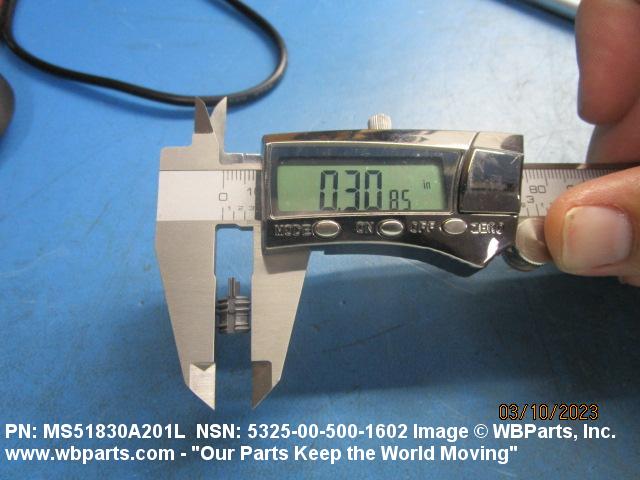

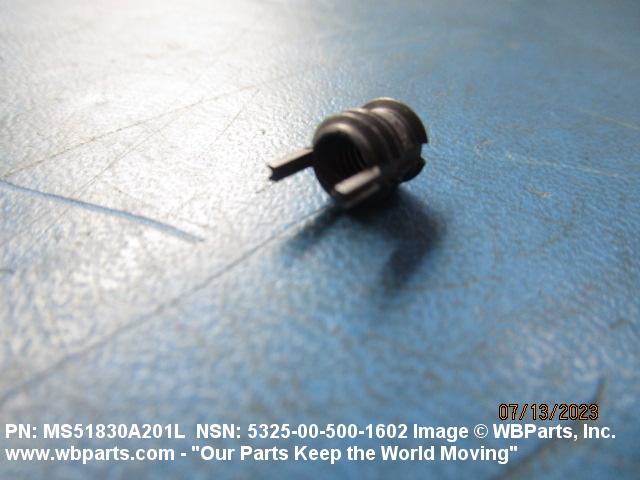

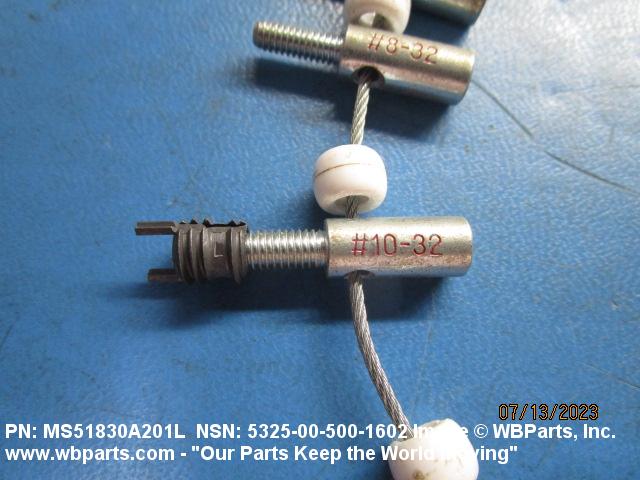

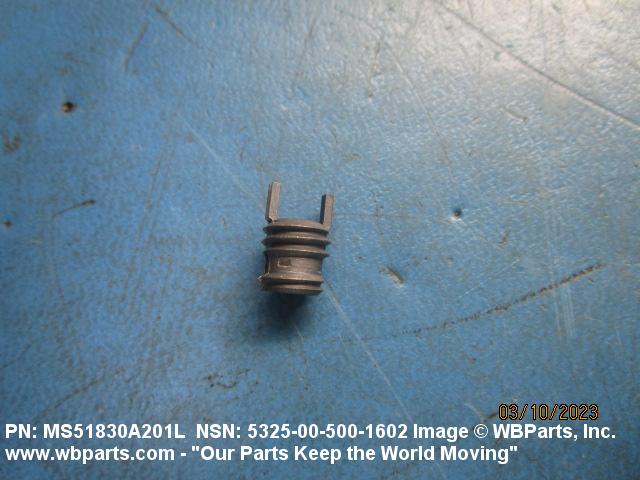

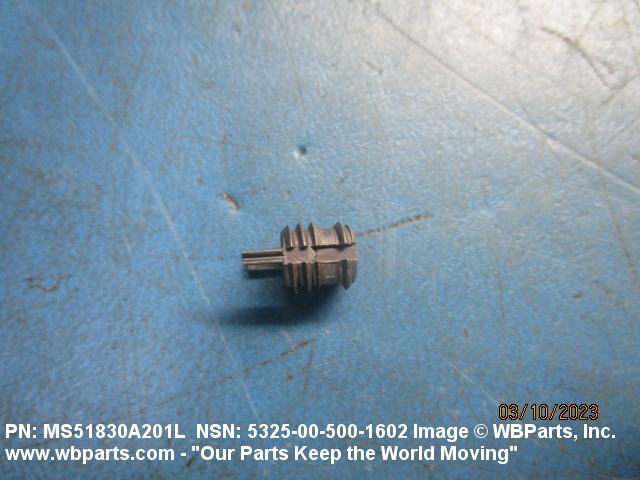

Drawings & Photos | NSN 5325-00-500-1602

Part Number	Request Date	QTY	Origin
NAS1394CA3L	2024-02-43	720	US
5325-00-500-1602	2023-11-305	457	DIBBS
NAS1394CA3L	2023-09-257	700	US
5325-00-500-1602	2023-08-218	271	DIBBS
5325-00-500-1602	2023-07-188	10	United States
5325-00-500-1602	2023-03-62	20	United States
MS51830A201L	2018-03-85	32	India
5325-00-500-1602	2018-02-37	206	DIBBS
5325-00-500-1602	2016-02-55	172	DIBBS
MS51830A201L	2016-02-40	2	United States
MS51830A201L	2016-02-40	6	United States
MS51830A201L	2016-02-40	14	United States
MS51830A201L	2016-02-40	28	United States
MS51830A201L	2016-02-40	58	United States
MS51830A201L	2016-02-40	114	United States
MS51830A201L	2016-02-40	160	United States
MS51830A201L	2016-02-40	400	United States
MS51830A201L	2016-02-40	800	United States
MS51830A201L	2016-02-40	2	United States
MS51830A201L	2016-02-40	6	United States
MS51830A201L	2016-02-40	14	United States
MS51830A201L	2016-02-40	28	United States
MS51830A201L	2016-02-40	58	United States
MS51830A201L	2016-02-40	114	United States
MS51830A201L	2016-02-40	160	United States
MS51830A201L	2016-02-40	400	United States
MS51830A201L	2016-02-40	800	United States
NAS1394CA3LS	2013-06-179	25	United States
MS51830A201L	2013-03-67	300	Italy
5325-00-500-1602	2013-01-10	100	US
MS51830A201L	2011-04-119	6	United States
5325-00-500-1602	2010-11-306	500	UK
5325-00-500-1602	2010-04-99	206	DIBBS
5325-00-500-1602	2009-08-222	25	US
MS51830A201L	2009-04-120	100	United Kingdom
MS51830A201L	2008-10-295	30	US
MS51830A201L	2008-09-246	15	US
NAS1394CA3LS	2008-07-213	20	United States
NAS1394CA3L	2008-04-99	100	MX
NAS1394CA3LS	2006-08-243	9	US

Cross Reference | NSN 5325-00-500-1602

Part Number	Cage Code	Manufacturer
KNL1032JT	U6315	ALCOA FASTENING SYSTEMS LTD
MS51830A201L	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1394CA3L	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1394CA3LS	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-500-1602

Compare

Related Products | NSN 5325-00-500-1602

5325-00-500-3789, 5325-00-500-3828, 5325-00-500-3988, 5325-00-500-5065, 5325-00-500-5125

Technical Data | NSN 5325-00-500-1602

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	H25 GROOVED KEYLOCK
LENGTH	0.310 INCHES NOMINAL
INTERNAL THREAD RELIEF DEPTH	0.070 INCHES NOMINAL
FULL INTERNAL THREAD LENGTH	0.240 INCHES NOMINAL
INSERT SIZE	0.312-18 UNC 2A
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
FEATURES PROVIDED	INDIVIDUALLY KEYED
SPECIFICATION/STANDARD DATA	80205-NAS1394 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5325-00-500-1602

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-500-1602

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
