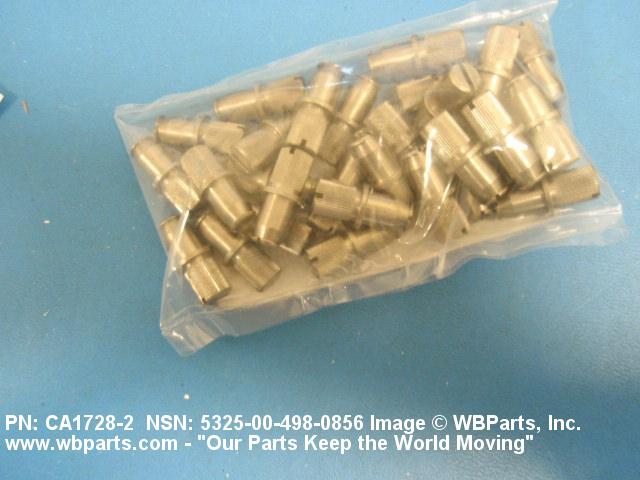

Product Details | TURNLOCK FASTENER STUD
5325-00-498-0856 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: CA17282, CA1728-2, 72160210, 721602-10, 4685001032, 4685001-032, 5325-00-498-0856, 00-498-0856, 5325004980856, 004980856
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1969 | 00-498-0856 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-498-0856
Demand History | NSN 5325-00-498-0856
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA17282 | 2009-09-246 | 30 | United States |
Cross Reference | NSN 5325-00-498-0856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4685001-032 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 4685001-032 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 721602-10 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| CA1728-2 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CA1728-2 | C0680 | SIEMENS AG - ANL A44 S - |
