NSN 5325-00-442-3208 MS51830102, MS51830-102, A05736
Product Details | SCREW THREAD INSERT
5325-00-442-3208 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS51830102, MS51830-102, A05736, B68011, K990504, K9905-04, 10189285-2, 5325-00-442-3208, 00-442-3208, 5325004423208, 101892852, 004423208
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 APR 1969 | 00-442-3208 | 11444 ( INSERT, SCREW THREAD ) |

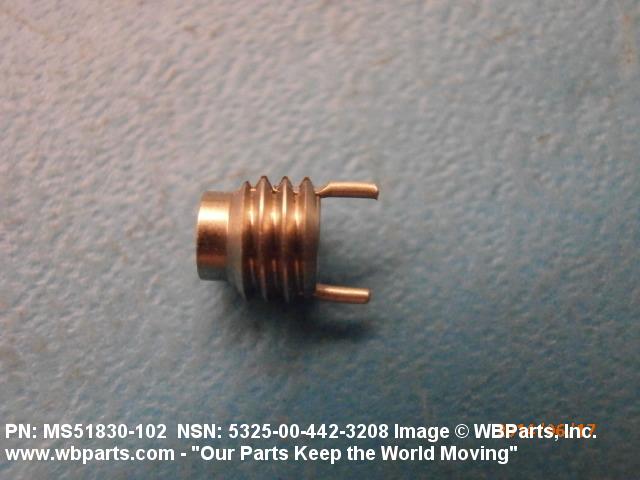

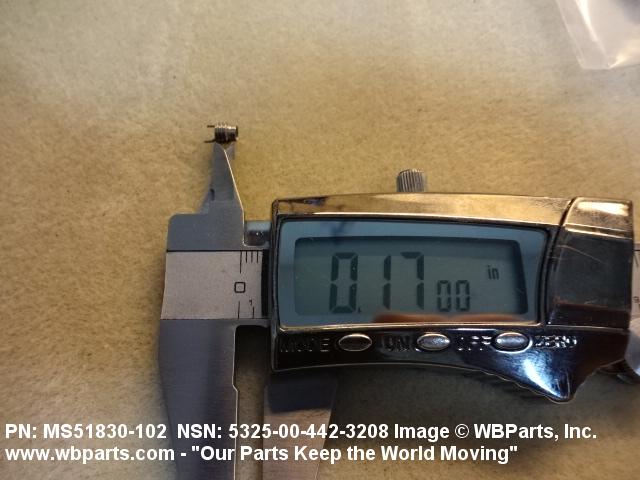

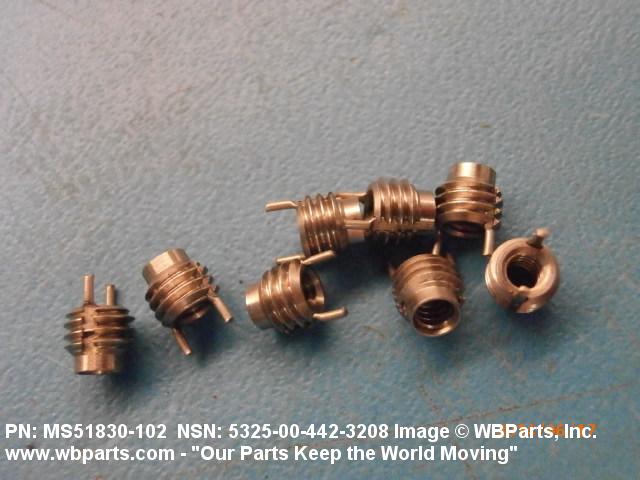

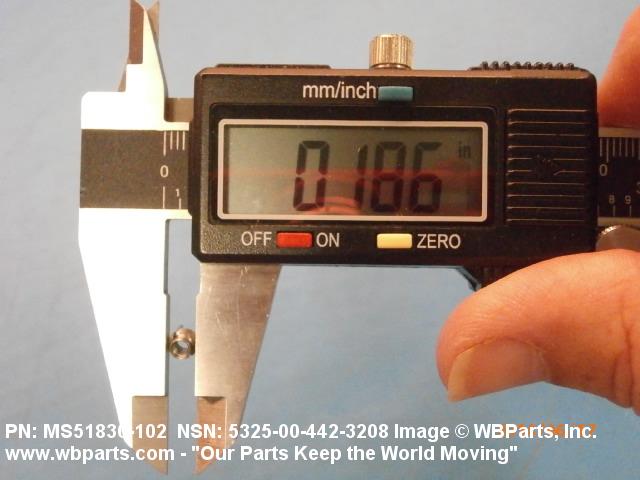

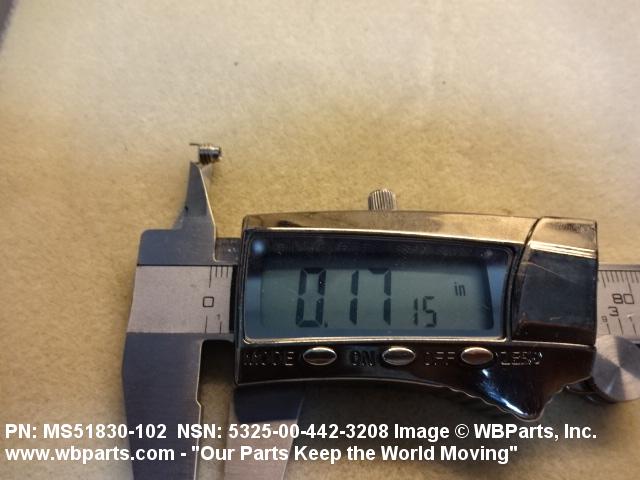

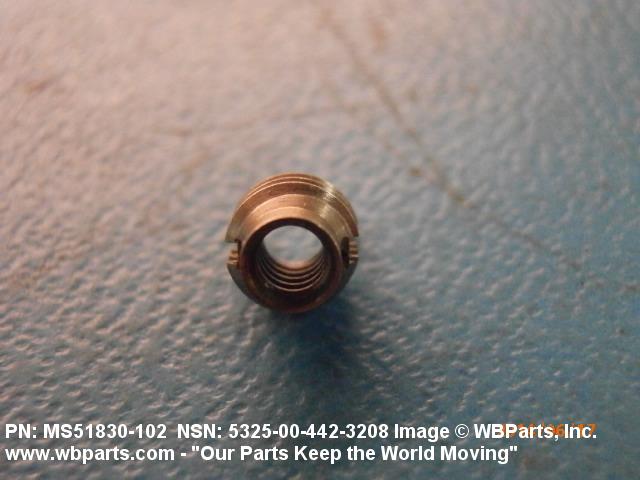

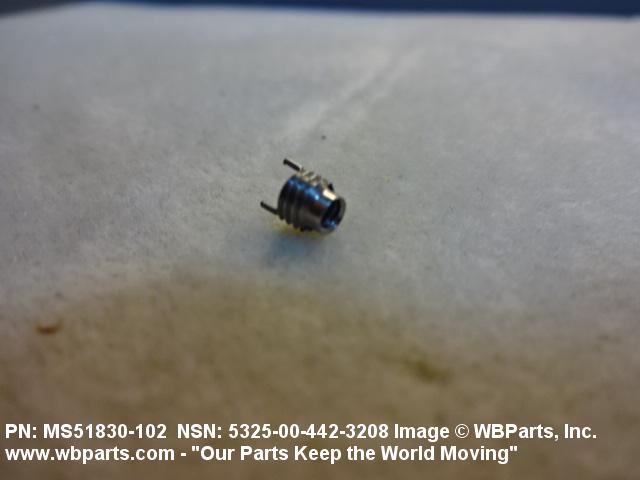

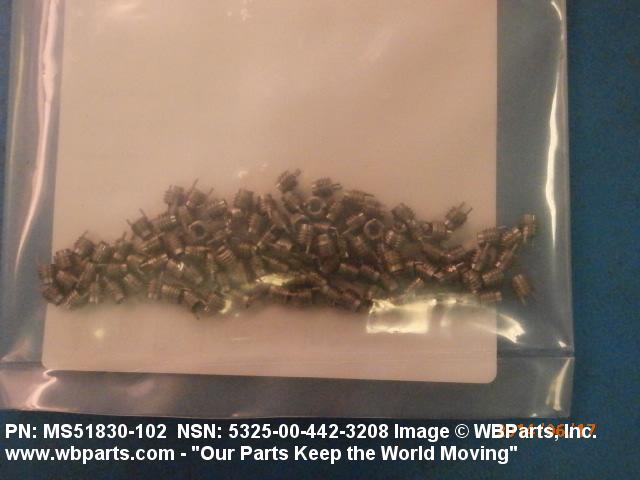

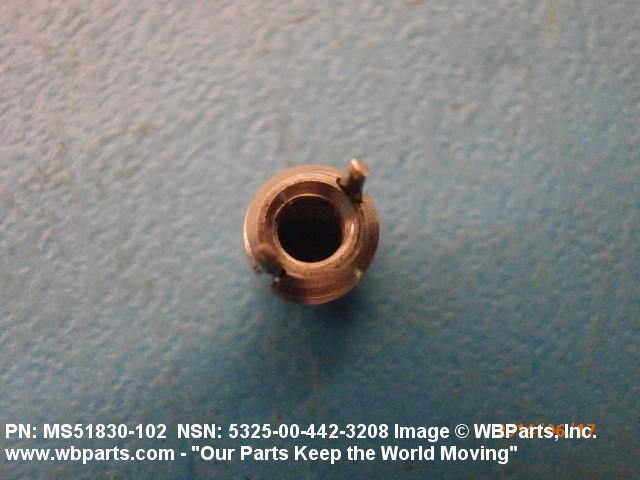

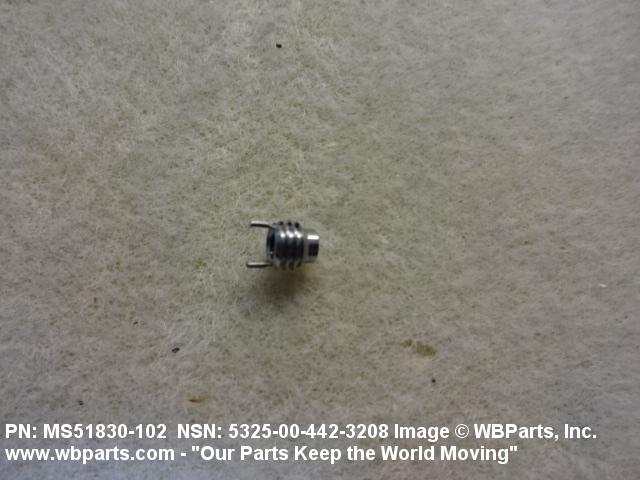

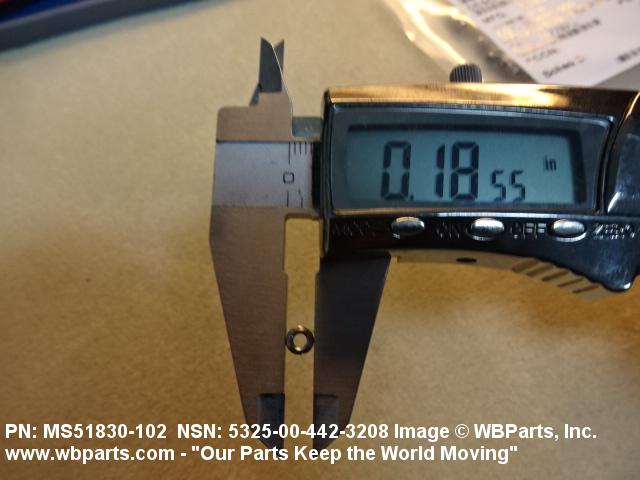

Drawings & Photos | NSN 5325-00-442-3208
Demand History | NSN 5325-00-442-3208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-442-3208 | 2024-03-61 | 1800 | United States |
| MS51830102 | 2022-03-88 | 105 | United States |
| 5325-00-442-3208 | 2021-06-178 | 89424 | DIBBS |
| MS51830102 | 2021-06-162 | 24 | United States |
| MS51830102 | 2021-04-99 | 18 | United States |
| MS51830102 | 2018-12-347 | 636 | United States |
| MS51830-102 | 2015-05-141 | 8 | United States |
| MS51830-102 | 2015-05-141 | 8 | United States |
| MS51830102 | 2015-03-86 | 50 | United States |
| 5325-00-442-3208 | 2014-06-163 | 26 | US |
| MS51830102 | 2014-06-156 | 100 | United States |
| MS51830102 | 2014-06-156 | 200 | United States |
| MS51830102 | 2013-05-151 | 1 | United States |
| MS51830102 | 2013-05-151 | 5 | United States |
| MS51830102 | 2013-05-151 | 10 | United States |
| MS51830102 | 2013-05-151 | 15 | United States |
| MS51830102 | 2013-05-151 | 20 | United States |
| MS51830102 | 2013-05-151 | 25 | United States |
| MS51830102 | 2013-05-151 | 30 | United States |
| MS51830102 | 2013-03-85 | 14 | US |
| MS51830102 | 2011-12-342 | 12 | US |
| MS51830102 | 2011-07-187 | 12500 | United States |
| 5325-00-442-3208 | 2011-06-156 | 1000 | IL |
| 5325-00-442-3208 | 2010-09-259 | 5 | RO |
| MS51830102 | 2010-07-200 | 210 | US |
| 5325-00-442-3208 | 2010-06-162 | 2400 | India |
| 5325-00-442-3208 | 2010-04-109 | 4 | YU |
| MS51830102 | 2009-09-246 | 26 | US |
| MS51830102 | 2009-08-233 | 100 | US |
| MS51830102 | 2009-05-148 | 100 | US |
| MS51830102 | 2006-07-193 | 36000 | United Kingdom |
Cross Reference | NSN 5325-00-442-3208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10189285-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 5340004423208 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| A05736 | K0967 | MBDA UK LTD |
| B68011 | K0967 | MBDA UK LTD |
| K9905-04 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| K9905-04 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS51830-102 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-442-3208
Technical Data | NSN 5325-00-442-3208
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H26 KEYLOCK |

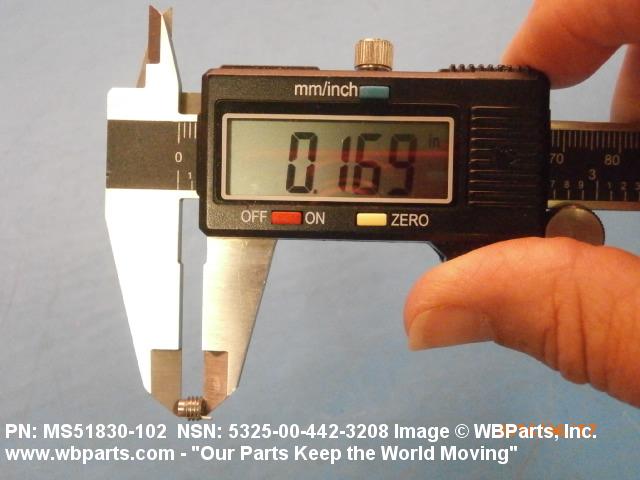

| LENGTH | 0.170 INCHES NOMINAL |
| FULL INTERNAL THREAD LENGTH | 0.170 INCHES NOMINAL |
| INSERT SIZE | 0.190-32 UNF CLASS 2A |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51830-102 |
Restrictions/Controls & Freight Information | NSN 5325-00-442-3208
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-442-3208
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
