NSN 5325-00-405-2745 CA18644, CA1864-4, 00-405-2745
Product Details | TURNLOCK FASTENER STUD
5325-00-405-2745 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: CA18644, CA1864-4, 5325-00-405-2745, 00-405-2745, 5325004052745, 004052745
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1971 | 00-405-2745 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-405-2745
Demand History | NSN 5325-00-405-2745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA1864-4 | 2022-11-307 | 24 | DIBBS |
| CA1864-4 | 2019-09-260 | 24 | DIBBS |
| CA1864-4 | 2019-04-99 | 26 | DIBBS |
| CA1864-4 | 2019-03-63 | 26 | DIBBS |
| 5325-00-405-2745 | 2018-09-261 | 26 | DIBBS |
| 5325-00-405-2745 | 2012-08-236 | 12 | DIBBS |
| 5325-00-405-2745 | 2012-01-01 | 75 | DIBBS |
| 5325-00-405-2745 | 2011-08-213 | 20 | DIBBS |
| 5325-00-405-2745 | 2008-09-250 | 100 | DIBBS |
Cross Reference | NSN 5325-00-405-2745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA1864-4 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-405-2745
Related Products | NSN 5325-00-405-2745
Technical Data | NSN 5325-00-405-2745
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 16 STUD SHANK |
| GRIP LENGTH | 0.438 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| EXTENSION LENGTH | 0.175 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.247 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |

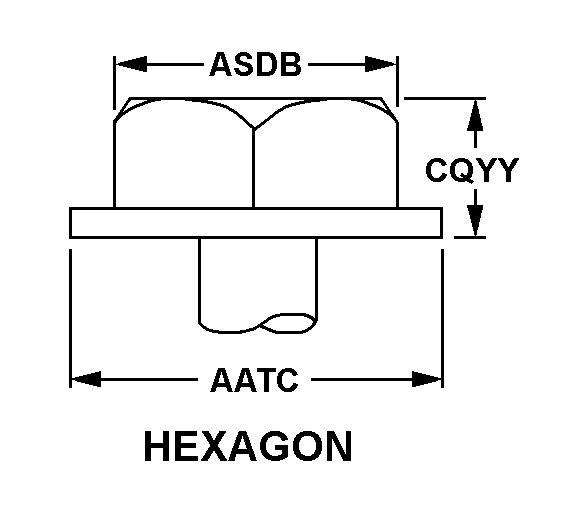

| TURNLOCK STUD HEAD STYLE | 22 HEXAGON |
