Product Details | RETAINING RING
5325-00-405-2503 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 84719, 5325-00-405-2503, 00-405-2503, 5325004052503, 004052503
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 APR 1971 | 00-405-2503 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-00-405-2503
Cross Reference | NSN 5325-00-405-2503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 84719 | 93322 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-405-2503
Technical Data | NSN 5325-00-405-2503
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-W-423, COMP 302, FORM 1, COND B |
| SURFACE TREATMENT | PASSIVATED, MIL-F-14072, FINISH E300 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

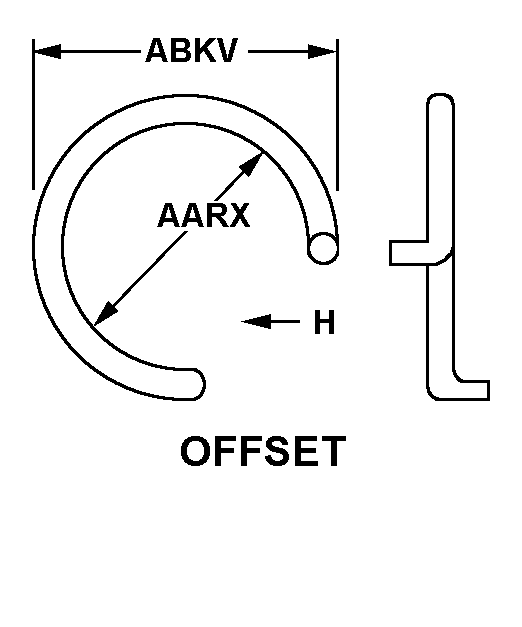

| RING STYLE | A93 OFFSET |
| GAP OPENING STYLE | B2 |
| INSIDE DIAMETER | 0.353 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.403 INCHES MINIMUM AND 0.423 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D1 ROUND |
| MATERIAL DIAMETER | 0.025 INCHES NOMINAL |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 93322 |
| DESIGN CONTROL REFERENCE | 84719 |
