NSN 5325-00-298-7005 CLC26007W, CLC2600-7W, HE12800288107
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-298-7005 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: CLC26007W, CLC2600-7W, HE12800288107, HE128-0028-8107, GS521A7W, 10630050135, 10630050-135, 11260107, 1126010-7, 260007, 2600-07, 26007W, 2600-7W, 6511-03019, 5325-00-298-7005, 00-298-7005, 5325002987005, 002987005, 651103019
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-7005 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-298-7005
Demand History | NSN 5325-00-298-7005
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-298-7005 | 2020-06-157 | 1 | DIBBS-RFPs |
| 1126010-7 | 2019-11-332 | 853 | DIBBS |
| 2600-7W | 2019-11-332 | 853 | DIBBS |
| 6511-03019 | 2019-11-332 | 853 | DIBBS |
| 5325-00-298-7005 | 2018-08-228 | 1000 | DIBBS |
| 5325-00-298-7005 | 2017-04-99 | 364 | DIBBS |
| 5325-00-298-7005 | 2015-04-119 | 1185 | DIBBS |
| 26007W | 2012-03-65 | 50 | United States |
| 5325-00-298-7005 | 2012-02-59 | 1753 | DIBBS |
| 5325-00-298-7005 | 2011-06-180 | 400 | DIBBS |
| 26007W | 2009-05-146 | 50 | Italy |
| 5325-00-298-7005 | 2009-04-105 | 1079 | DIBBS |
| 5325-00-298-7005 | 2008-05-127 | 424 | DIBBS |
| 5325-00-298-7005 | 2008-02-35 | 1291 | DIBBS |
Cross Reference | NSN 5325-00-298-7005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10630050-135 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1126010-7 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 2600-07 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2600-7W | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2600-7W | 71294 | PANTASOTE INC ELASTOMER PRODUCTS DIV |
| 2600-7W | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 6511-03019 | F2833 | SFIM ODS GROUPE SFIM |
| 6511-03019 | F6151 | SAFRAN |
| CLC2600-7W | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| GS521A7W | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HE128-0028-8107 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-298-7005
Related Products | NSN 5325-00-298-7005
Technical Data | NSN 5325-00-298-7005
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1009 EYELET STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE EYELET QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A331 ASSN STD 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

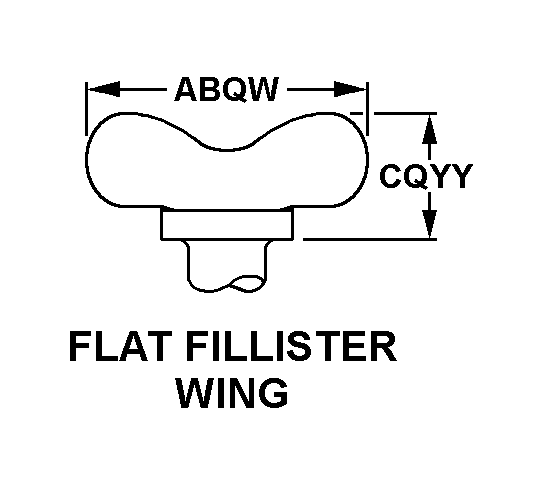

| TURNLOCK STUD HEAD STYLE | 11 FLAT FILLISTER WING |
| HEAD LENGTH | 0.720 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.440 INCHES NOMINAL |

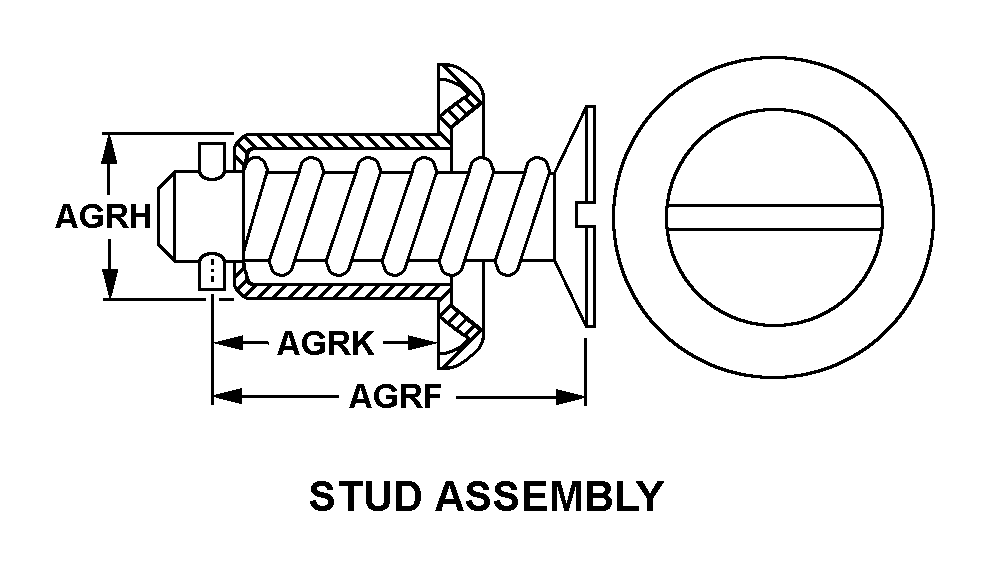

| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |
