NSN 5325-00-298-7009 NR26005, NR2600-5, C22123Z1000C5
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-298-7009 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: NR26005, NR2600-5, C22123Z1000C5, G2055215, G205521-5, R94TA05A, 5L374100110, 5L3741-001-10, 012-1972-00, 1063005011, 10630050-11, 12Z1212036, 12Z12120-36, 1JA27355, 1JA2735-5, 201569, 26005, 2600-5, 451665, 45166-5, 5325-00-298-7009, 00-298-7009, 5325002987009, 012197200, 002987009
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-7009 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

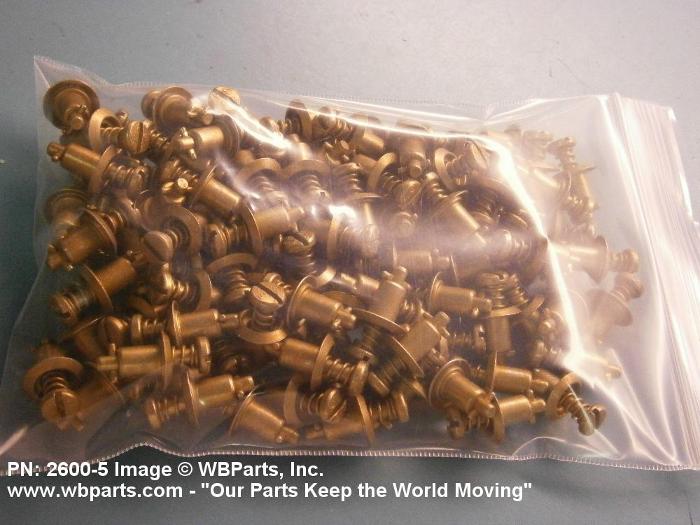

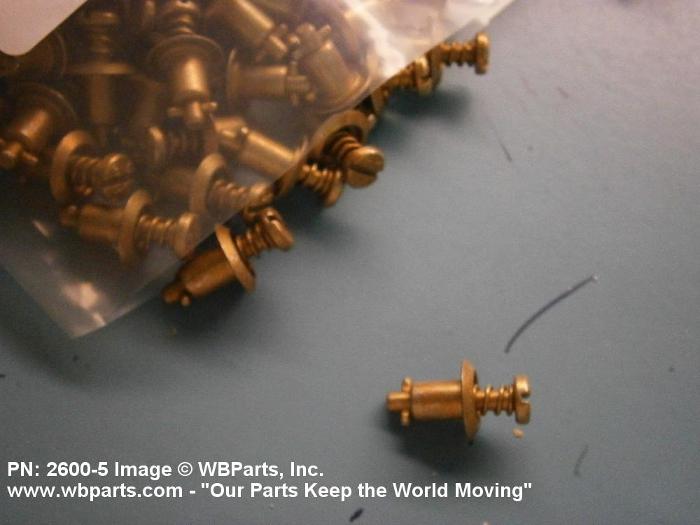

Drawings & Photos | NSN 5325-00-298-7009
Demand History | NSN 5325-00-298-7009
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2600-5 | 2018-04-108 | 8 | United Arab Emirates |
| 26005 | 2017-01-20 | 20 | Malaysia |
| 26005 | 2015-04-118 | 10 | United States |
| 26005 | 2013-05-135 | 100 | US |
| 26005 | 2012-08-229 | 2 | |
| 5325-00-298-7009 | 2012-05-135 | 10 | United States |
| 26005 | 2008-10-281 | 90 | India |
| 5325-00-298-7009 | 2008-07-197 | 63 | US |
| 26005 | 2008-02-45 | 3 | US |
Cross Reference | NSN 5325-00-298-7009
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 012-1972-00 | 95104 | ALCATEL USA INC. DIV WTPG |
| 10630050-11 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 12Z12120-36 | 94135 | NAVAL ORDNANCE STANDARDS |
| 1JA2735-5 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 1JA2735-5 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 201569 | 01359 | FAIRCHILD CONTROLS CORPORATION |
| 2600-5 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2600-5 | K1678 | FAIRCHILD FASTENERS UK LTD |
| 2600-5 | U8F82 | SPECIALTY FASTENERS & COMPONENTS LTD |
| 45166-5 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5L3741-001-10 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| C22123Z1000C5 | C0363 | NOKIA SOLUTIONS AND NETWORKS GMBH &CO. KG |
| G205521-5 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| G205521-5 | 70408 | AT AND T CORP |
| G205521-5 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NR2600-5 | F6117 | DASSAULT AVIATION |
| R94TA05A | 12464 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-298-7009
Related Products | NSN 5325-00-298-7009
Technical Data | NSN 5325-00-298-7009
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1009 EYELET STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE EYELET QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN ASTM A322 ASSN STD 1ST MATERIAL RESPONSE AND ASTM A331 ASSN STD 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.662 INCHES MINIMUM AND 0.677 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.120 INCHES MINIMUM AND 0.179 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-298-7009
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-298-7009
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
